NRF24 PCB layout, top view — open source board by sneakylizard123-4

About the NRF24 PCB

NRF24 is an open source PCB design by sneakylizard123-4, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 50 × 30 mm, with 38 components from 26 distinct parts.

Other key parts include the NRF24L01P, TLV75733PDBV and RFX2401C. By type, the board carries 22 capacitors, 5 inductors, 5 resistors, 3 ICs, 2 connectors and 1 crystal.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

A small 2.4GHz module based on the nRF24L01P+, with an SMA jack for an external antenna, an on-board RFX2401C PA/LNA for extra range, and a breadboard friendly SPI header. Runs from 3.3V or 5V off an on-board LDO.

A small 2.4GHz module based on the nRF24L01P+, with an SMA jack for an external antenna, an on-board RFX2401C PA/LNA for extra range, and a breadboard friendly SPI header. Runs from 3.3V or 5V off an on-board LDO.

- nRF24L01P+ 2.4GHz transceiver - RFX2401C external PA/LNA for roughly +20dBm in TX and LNA gain in RX - Discrete LC balun + harmonic filter - LC match and DC block from the PA/LNA out to the SMA jack (0.3pF and 1.5pF C0G caps, 2.3nH to 12nH inductors) - Right-angle SMA jack mounted on the board edge, for a real whip or panel antenna - 16MHz crystal with matched load caps and bias…

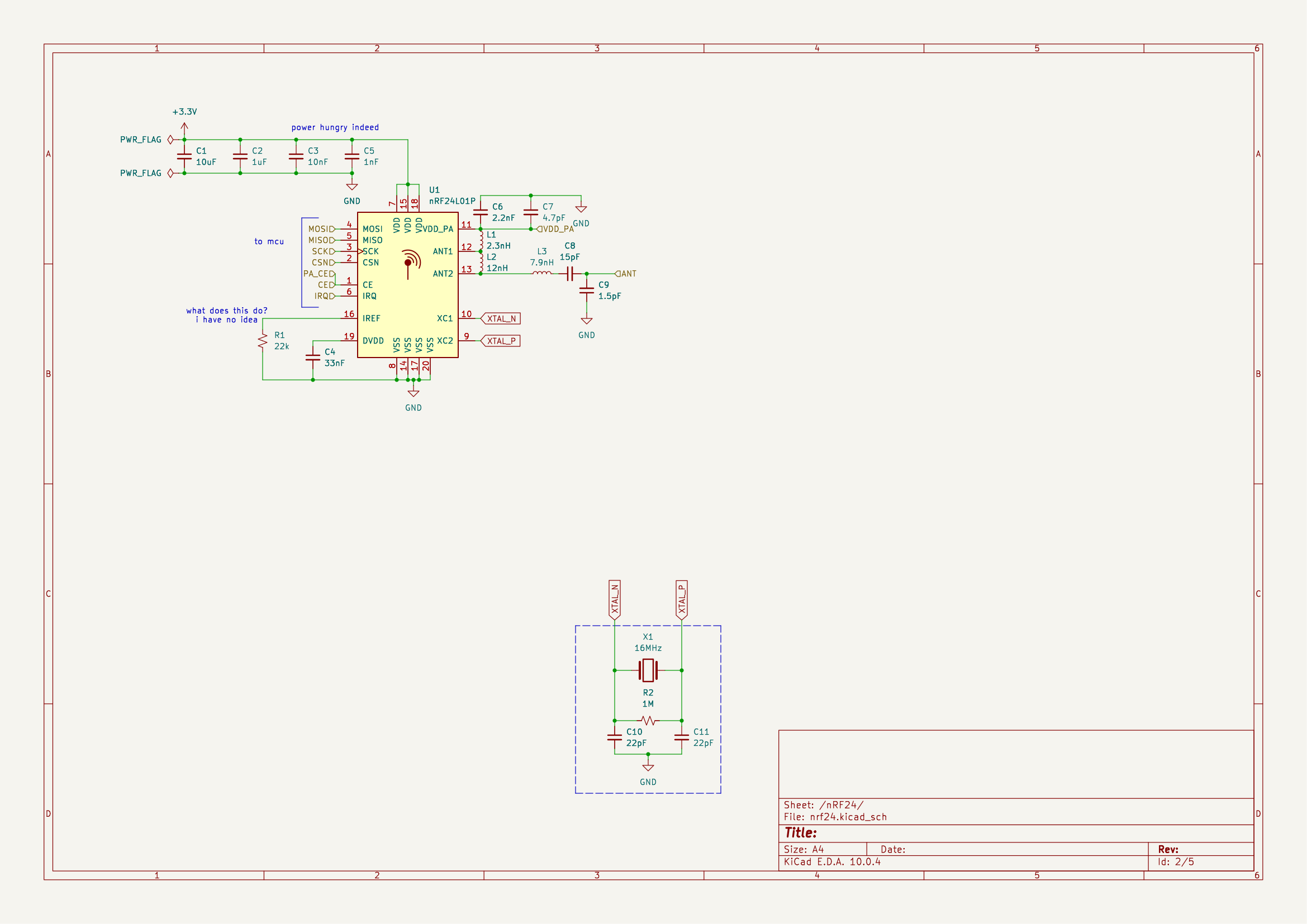

NRF24, from the project README
From the project README

Main components on the NRF24

NRF24L01PTLV75733PDBVRFX2401C

NRF24 bill of materials (BOM)

38 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NRF24L01P
nRF24L01P
U1
1
TLV75733PDBV
U2
1
RFX2401C
U3
1
16MHZ
16MHz
X1
1
CONN_01X08
Conn_01x08
J1
1
Conn_Coaxial
J2
1
2.3NH
2.3nH
L1
1
12NH
12nH
L2
1
7.9NH
7.9nH
L3
2
2.4NH
2.4nH
L4, L5
4
10UF
10uF
C1, C12, C14, C17
2
1UF
1uF
C2, C16
1
10NF
10nF
C3
1
33NF
33nF
C4
1
1NF
1nF
C5
1
2.2NF
2.2nF
C6
1
4.7PF
4.7pF
C7
1
15PF
15pF
C8
5
1.5PF
1.5pF
C9, C19, C20, C21, C22
2
22PF
22pF
C10, C11
Show 6 more
QtyPartRefs
2
100NF
100nF
C13, C15
1
0.3PF
0.3pF
C18
1
22K
22k
R1
1
1M
R2
1
10K
10k
R3
2
1k
R4, R5

NRF24 design files

The KiCad project lives in the sneakylizard123-4/nRF24 repository on GitHub; these links point at the commit this page was built from.

NRF24: common questions

How big is the NRF24 PCB?

The NRF24 measures 50 × 30 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the NRF24?

38 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the NRF24 design files?

From the sneakylizard123-4/nRF24 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the NRF24 design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which sneakylizard123-4 chose for the repository.
