CO-sensor-MQ7-breakout with easyC-hardware design

SolderedElectronics·CO-sensor-MQ7-breakout-with-easyC-hardware-design·CAD/V1.1.1/MQ Breakout.kicad_pcb

CO-sensor-MQ7-breakout with easyC-hardware design layout, top view — open source AVR/Arduino board by SolderedElectronics
Simulate this board

About the CO-sensor-MQ7-breakout with easyC-hardware design

CO-sensor-MQ7-breakout with easyC-hardware design is an open source AVR/Arduino PCB design by SolderedElectronics, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 22 × 54 mm, with 26 components from 16 distinct parts.

Its main chip is the ATTINY404-SSNR, from the AVR/Arduino family. Other key parts include the MQ-X, NMOS-DUAL and TPS613222A. By type, the board carries 6 resistors, 4 ICs, 4 relays, 4 capacitors, 2 jumpers and 1 diode.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

Hardware design, BOM, gerbers and 3D files for CO-sensor-MQ7-breakout-with-easyC designed by Soldered Electronics.

The sensitivity and selectivity of the MQ7 sensor enable it to effectively detect and measure carbon monoxide levels, making it a crucial tool for applications such as gas leakage detection, security systems, and environmental monitoring. By integrating the MQ7 sensor with appropriate electronic circuits and microcontrollers like Dasduino, you can create systems that enable real-time monitoring and prompt alerts in the presence of hazardous CO concentrations. It requires a short time to warm up in order to work correctly.

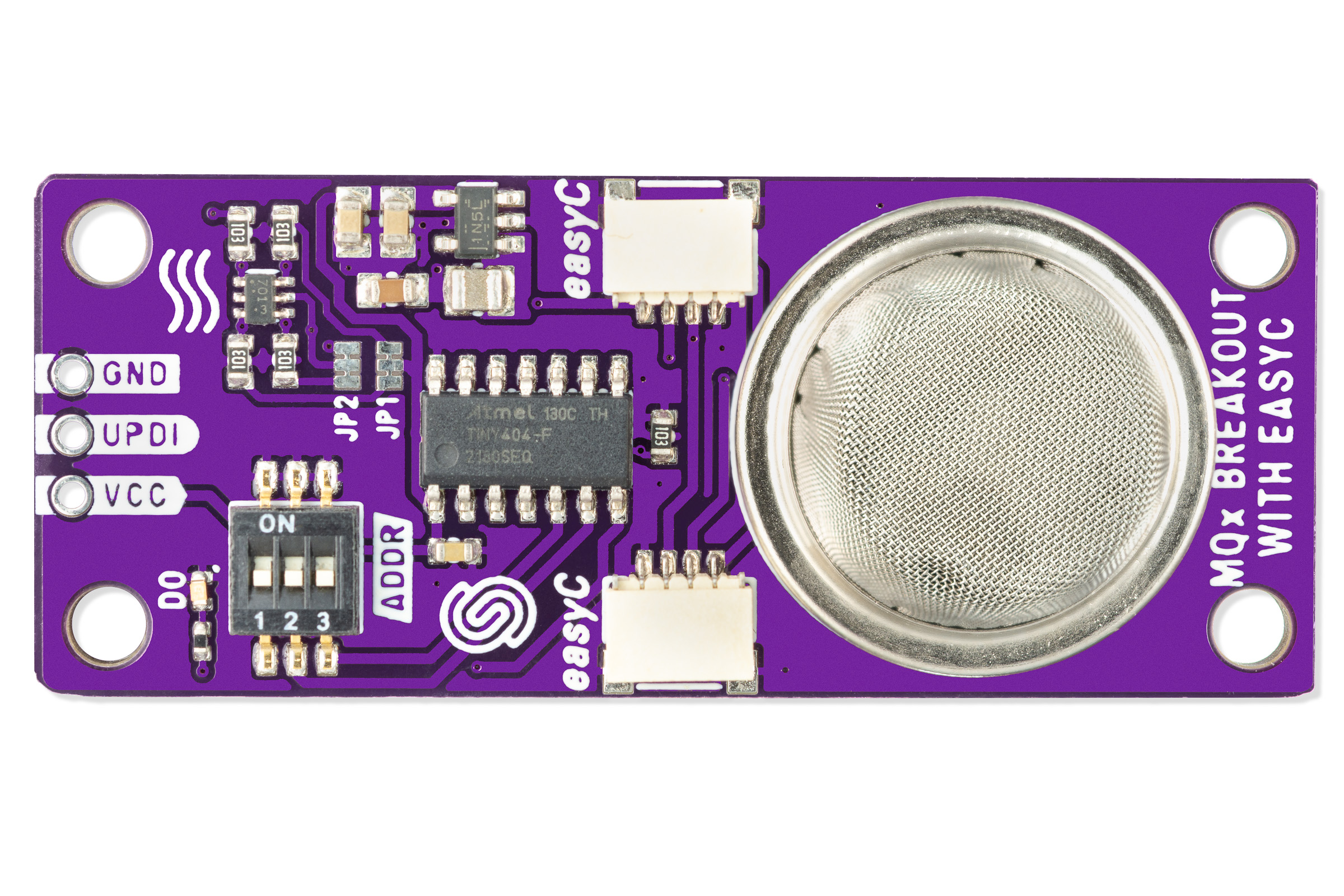

CO-sensor-MQ7-breakout with easyC-hardware design, from the project README
From the project README

Main components on the CO-sensor-MQ7-breakout with easyC-hardware design

MQ-XNMOS-DUALTPS613222AATTINY404-SSNR

CO-sensor-MQ7-breakout with easyC-hardware design bill of materials (BOM)

26 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MQ-X
U1
1
NMOS-DUAL
U2
1
TPS613222A
U3
1
ATTINY404-SSNR
U4
4
HOLE_3.2mm
H1, H2, H3, H4
2
SMD_JUMPER_3_PAD_TRACE
JP1, JP2
2
easyC-SMD
K1, K3
1
HEADER-UPDI
K2
1
DSHP03TS-S
K4
1
purple
D1
1
DFE201612E-2R2M=P2
L1
2
CL10A226MPCNUBE
C1, C2
1
C1608X7S1A475K080AC
C3
1
100n
C4
5
10k
R1, R2, R3, R4, R5
1
2k2
R6

CO-sensor-MQ7-breakout with easyC-hardware design design files

The KiCad project lives in the SolderedElectronics/CO-sensor-MQ7-breakout-with-easyC-hardware-design repository on GitHub; these links point at the commit this page was built from.

CO-sensor-MQ7-breakout with easyC-hardware design: common questions

What microcontroller does the CO-sensor-MQ7-breakout with easyC-hardware design use?

The CO-sensor-MQ7-breakout with easyC-hardware design is built around the ATTINY404-SSNR, from the AVR/Arduino family.

How big is the CO-sensor-MQ7-breakout with easyC-hardware design?

The CO-sensor-MQ7-breakout with easyC-hardware design measures 22 × 54 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CO-sensor-MQ7-breakout with easyC-hardware design?

26 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CO-sensor-MQ7-breakout with easyC-hardware design design files?

From the SolderedElectronics/CO-sensor-MQ7-breakout-with-easyC-hardware-design repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the CO-sensor-MQ7-breakout with easyC-hardware design design in my own project?

Yes, under the terms of its TAPR-OHL-1.0 license, which SolderedElectronics chose for the repository.

Can I test firmware for the CO-sensor-MQ7-breakout with easyC-hardware design without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
