About the DubaiXTClone PCB
DubaiXTClone is an open source PCB design by spencer-uk, published on GitHub under the CERN-OHL-W-2.0 license. It is a 4-layer board measuring 304.8 × 215.9 mm, with 144 components from 83 distinct parts.
Other key parts include the 8284A, LS245, 8088, 8087 and LS373. By type, the board carries 53 ICs, 40 capacitors, 16 resistors, 14 diodes, 9 connectors and 3 fuses.
From the project

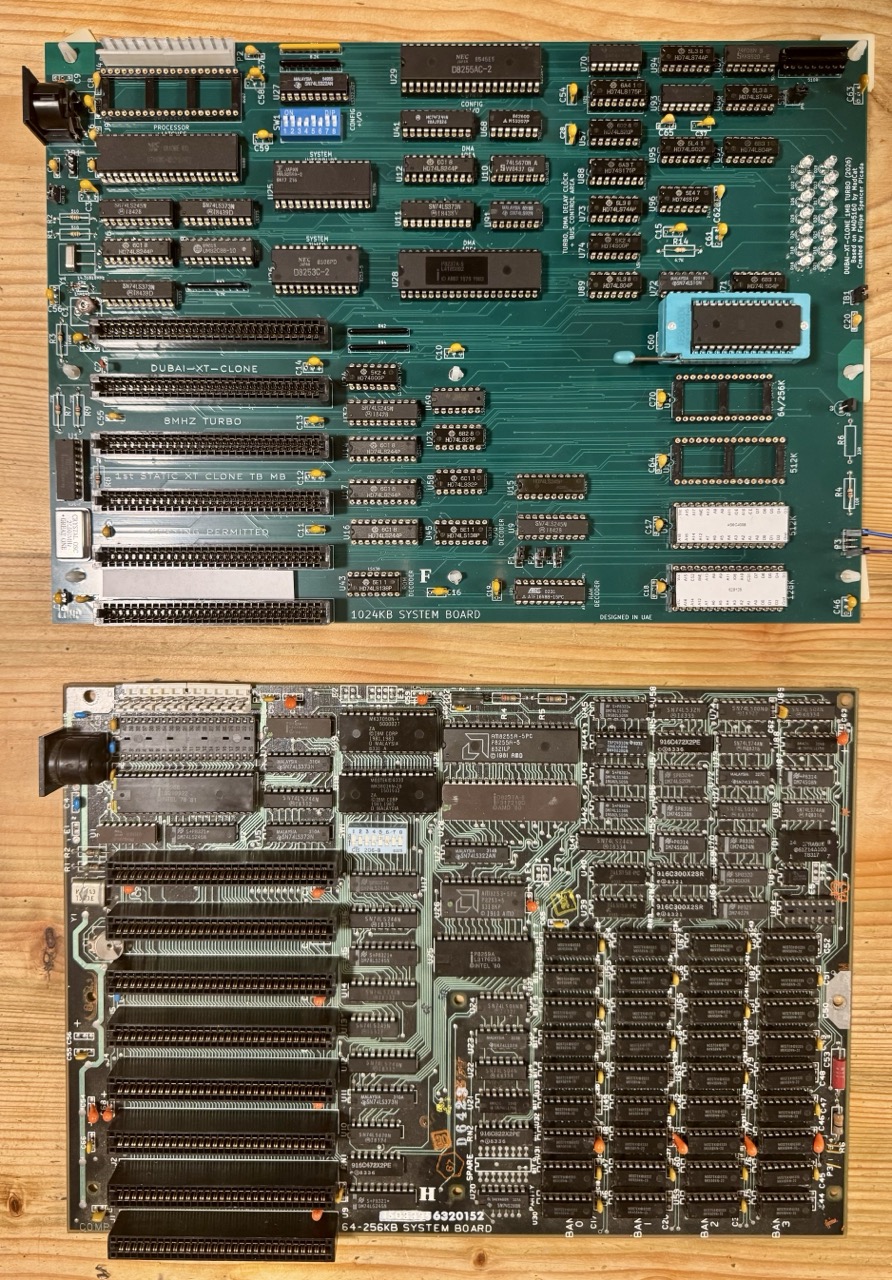

PC XT Clone - 8Mhz created in Dubai - IBM5160/5150 PC XT Compatible Computer Motherboard
This board was born in Dubai in 2026, making it almost certainly the first Turbo PC/XT Clone Motherboard ever designed in the UAE. It was not built to tick a box or replicate something that already existed. It was built because the board that Felipe Spencer Picada wanted — minimal, clean, modern, with everything a serious PC/XT enthusiast actually needs — simply did not exist yet.

Main components on the DubaiXTClone
DubaiXTClone bill of materials (BOM)
144 components, 83 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 8284A | DIP-18_W7.62mm | U1 |
| 4 | LS245 | DIP-20_W7.62mm | U2, U9, U15, U32 |
| 1 | 8088 | DIP-40_W15.24mm | U3 |
| 1 | 8087 | DIP-40_W15.24mm_Socket | U4 |
| 3 | LS373 | DIP-20_W7.62mm | U5, U7, U11 |
| 6 | LS244 | DIP-20_W7.62mm | U6, U12, U14, U16, U17, U41 |
| 1 | 8288 | DIP-20_W7.62mm | U8 |
| 1 | LS670_U10 | DIP-16_W7.62mm | U10 |
| 2 | 27C256 (32KX8) | DIP-28_W15.24mm | U18, U19 |
| 1 | ATF16V8BXX-XXPU ATF16V8Bxx-xxPU | DIP-20_W7.62mm | U20 |
| 1 | 74LS175 | DIP-16_W7.62mm_Socket | U21 |
| 1 | LS27_U23 | DIP-14_W7.62mm | U23 |
| 1 | LS00_U24 (74S) | DIP-14_W7.62mm | U24 |
| 1 | 8259A | DIP-28_W15.24mm | U25 |
| 1 | 8253-5 | DIP-24_W15.24mm | U26 |
| 1 | LS322_U27 | DIP-20_W7.62mm | U27 |
| 1 | 8237A-5_U28 | DIP-40_W15.24mm | U28 |
| 1 | 8255A-5 | DIP-40_W15.24mm | U29 |
| 2 | LS138 | DIP-16_W7.62mm | U43, U45 |
| 1 | LS20_U57 | DIP-14_W7.62mm | U57 |
Show 63 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LS32_U58 | DIP-14_W7.62mm | U58 |
| 1 | 7407_U68 | DIP-14_W7.62mm | U68 |
| 1 | LS00_U85(t) | DIP-14_W7.62mm | U69 |
| 1 | 74S74N (74S) | DIP-14_W7.62mm | U70 |
| 1 | LS04_U71 | DIP-14_W7.62mm | U71 |
| 1 | LS10_U72 | DIP-14_W7.62mm | U72 |
| 2 | 74LS74AN | DIP-14_W7.62mm | U73, U86 |
| 1 | LS00_U74 (sU99) | DIP-14_W7.62mm | U74 |
| 1 | S08_U87 (74S) | DIP-14_W7.62mm | U87 |
| 1 | LS175 (74S) | DIP-16_W7.62mm | U88 |
| 1 | LS04 | DIP-14_W7.62mm | U89 |
| 1 | 74LS92 | DIP-14_W7.62mm | U91 |
| 1 | 74LS74 (74S) | DIP-14_W7.62mm | U93 |
| 1 | 74LS74 | DIP-14_W7.62mm | U94 |
| 1 | 74LS02 (74S) | DIP-14_W7.62mm | U95 |
| 1 | 74LS51 (74S) | DIP-14_W7.62mm | U96 |
| 1 | 74LS04 | DIP-14_W7.62mm | U97 |
| 2 | AS6C4008-55PCN | DIP-32_W15.24mm | U99, U101 |
| 1 | HM628128_DIP32_SOP32 | DIP-32_W15.24mm_Socket_LongPads | U102 |
| 1 | 2N3904 | TO-92_Inline | Q2 |
| 1 | 14.31818MHZ 14.31818MHz | Crystal_HC49-U_Horizontal | Y1 |
| 1 | CXO_DIP14 | Oscillator_DIP-14 | Y4 |
| 6 | ISA Bus connector | isa_edge_slot | J1, J2, J3, J4, J5, J6 |
| 1 | KEYBOARD | Keyboard | J9 |
| 1 | AT POWER CONNECTOR | AT_power_connector | J10 |
| 1 | SPEAKER | PinHeader_1x04_P2.54mm_Vertical | P3 |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | CR1 |
| 1 | ROM E/D | PinHeader_2x01_P2.54mm_Vertical | E1 |
| 1 | F1 | PinHeader_2x01_P2.54mm_Vertical | F1 |
| 2 | F3 | PinHeader_2x01_P2.54mm_Vertical | F2, F3 |
| 1 | RESET | PinHeader_1x03_P2.54mm_Vertical | PB1 |
| 1 | JP6 JP7 | PinHeader_2x02_P2.54mm_Vertical | SB1 |
| 1 | DIP_SWITCH | DIP_SWITCH | SW1 |
| 1 | JP5 TURBO SW | PinHeader_2x01_P2.54mm_Vertical | TB1 |
| 1 | ON | LED_D3.0mm_Clear | D16 |
| 1 | TURBO | LED_D3.0mm_Clear | D17 |
| 1 | IRQ1 | LED_D3.0mm_Clear | D18 |
| 1 | AEN | LED_D3.0mm_Clear | D19 |
| 1 | PPI | LED_D3.0mm_Clear | D21 |
| 1 | INTR | LED_D3.0mm_Clear | D22 |
| 1 | T/C | LED_D3.0mm_Clear | D23 |
| 1 | DMA | LED_D3.0mm_Clear | D24 |
| 1 | RAM | LED_D3.0mm_Clear | D25 |
| 1 | ROM | LED_D3.0mm_Clear | D26 |
| 1 | MEMR | LED_D3.0mm_Clear | D27 |
| 1 | MEMW | LED_D3.0mm_Clear | D28 |
| 1 | IOR | LED_D3.0mm_Clear | D29 |
| 1 | IOW | LED_D3.0mm_Clear | D30 |
| 1 | 5-30PF 5-30pf | VR | C1 |
| 4 | 47PF 47pF | cap_unipolar | C2, C4, C7, C9 |
| 18 | 10uF 25V | cap_tantalum_pos | C3, C10, C11, C12, C13, C14, C15, C16 +10 |
| 14 | 0.047UF 0.047uF | cap_unipolar | C5, C6, C8, C17, C18, C55, C57, C60 +6 |
| 1 | 100NF 100nF | cap_unipolar | C20 |
| 2 | 10uF 25V | cap_tantalum_neg | C58, C68 |
| 2 | 510 | resistor | R1, R2 |
| 1 | 100K | resistor | R3 |
| 1 | 10R | resistor | R4 |
| 1 | 33R | resistor | R6 |
| 3 | 27R | resistor | R7, R8, R9 |
| 1 | 4.7K | resistor | R14 |
| 4 | 4.7K | R_Array_SIP9 | RN1, RN2, RN3, RN4 |
| 1 | 8.2K | R_Array_SIP9 | RN6 |
| 2 | 510R | R_Array_SIP9 | RN7, RN8 |
DubaiXTClone design files
The KiCad project lives in the spencer-uk/DubaiXTClone repository on GitHub; these links point at the commit this page was built from.
- LayoutDubaiXTClone.kicad_pcb
- SchematicDubaiXTClone.kicad_sch
- BOMproduction/bom.csv
DubaiXTClone: common questions
How big is the DubaiXTClone PCB?
The DubaiXTClone measures 304.8 × 215.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the DubaiXTClone?
144 components, from 83 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DubaiXTClone design files?
From the spencer-uk/DubaiXTClone repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the DubaiXTClone design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which spencer-uk chose for the repository.
