Esp32-c3-wroom02-development board

Srushti-D-Hebbar·esp32-c3-wroom02-development-board·hardware/esp32-c3-mini.kicad_pcb

Esp32-c3-wroom02-development board layout, top view — open source ESP32 board by Srushti-D-Hebbar

About the Esp32-c3-wroom02-development board

Esp32-c3-wroom02-development board is an open source ESP32 PCB design by Srushti-D-Hebbar, published on GitHub under the MIT license. It is a 4-layer board measuring 30.6 × 35.8 mm, with 29 components from 16 distinct parts.

Its main chip is the ESP32-C3-WROOM-02, from the ESP32 family. Other key parts include the USB-UART IC and AP2112K-3.3. By type, the board carries 10 capacitors, 9 resistors, 3 ICs, 3 connectors, 2 switches and 1 crystal.

It belongs with the dev boards & breakouts and power & battery designs in this gallery.

From the project

A custom 4-layer ESP32-C3-WROOM-02 development board designed in KiCad 10 - includes USB-C power/data, schematics, PCB layout, and manufacturing files.

A custom 4-layer development board built around the ESP32-C3-WROOM-02 module, designed from schematic to PCB using KiCad 10. The board provides USB-C power and data connectivity, 3.3 V regulation, boot/reset controls, and GPIO expansion through headers.

- ESP32-C3-WROOM-02 module - USB-C power and data interface - 3.3 V regulated power supply - Boot and Reset buttons - GPIO expansion headers - External crystal oscillator - USB ESD protection - 4-layer PCB with internal GND planes

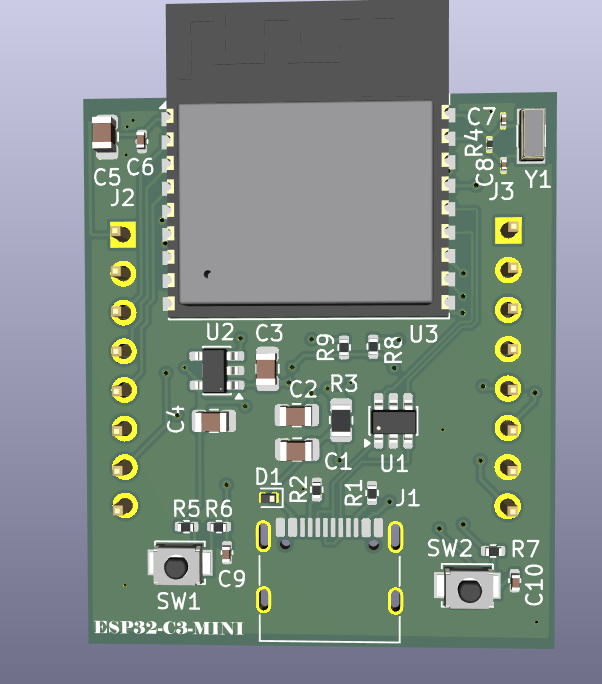

Esp32-c3-wroom02-development board, from the project README
From the project README

Main components on the Esp32-c3-wroom02-development board

USB-UART ICAP2112K-3.3ESP32-C3-WROOM-02

Esp32-c3-wroom02-development board bill of materials (BOM)

29 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USB-UART IC
U1
1
AP2112K-3.3
U2
1
ESP32-C3-WROOM-02
U3
1
Crystal
Y1
1
USB-C
J1
2
8-pin header
J2, J3
2
Push Button
SW1, SW2
1
PESD5V0L1UL
D1
5
4U7
4u7
C1, C2, C3, C4, C5
3
100N
100n
C6, C9, C10
2
TBD
C7, C8
2
5K1
5k1
R1, R2
1
0R
R3
1
TBD
R4
4
10K
10k
R5, R7, R8, R9
1
100K
100k
R6

Esp32-c3-wroom02-development board design files

The KiCad project lives in the Srushti-D-Hebbar/esp32-c3-wroom02-development-board repository on GitHub; these links point at the commit this page was built from.

Esp32-c3-wroom02-development board: common questions

What microcontroller does the Esp32-c3-wroom02-development board use?

The Esp32-c3-wroom02-development board is built around the ESP32-C3-WROOM-02, from the ESP32 family.

How big is the Esp32-c3-wroom02-development board?

The Esp32-c3-wroom02-development board measures 30.6 × 35.8 mm, has 4 copper layers and is 1 mm thick.

How many components are on the Esp32-c3-wroom02-development board?

29 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-c3-wroom02-development board design files?

From the Srushti-D-Hebbar/esp32-c3-wroom02-development-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-c3-wroom02-development board design in my own project?

Yes, under the terms of its MIT license, which Srushti-D-Hebbar chose for the repository.

Can I test firmware for the Esp32-c3-wroom02-development board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
