Raspberry pi pico development board

Srushti-D-Hebbar·raspberry-pi-pico-development-board·hardware/rasp_pi_pico.kicad_pcb

Raspberry pi pico development board layout, top view — open source RP2040/RP2350 board by Srushti-D-Hebbar

About the Raspberry pi pico development board

Raspberry pi pico development board is an open source RP2040/RP2350 PCB design by Srushti-D-Hebbar, published on GitHub under the MIT license. It is a 2-layer board measuring 39.1 × 57.5 mm, with 48 components from 28 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the USBLC6-2SC6, ADP2108AUJ-3.3 and W25Q16JVSS. By type, the board carries 17 capacitors, 16 resistors, 4 ICs, 3 connectors, 3 diodes and 2 switches.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Custom Raspberry Pi Pico-compatible development board designed from scratch in KiCad 10 using the RP2040 microcontroller.

A custom Raspberry Pi Pico-compatible development board built around the RP2040 microcontroller, designed from scratch in KiCad 10. The board recreates the core hardware of the official Raspberry Pi Pico—including power management, USB connectivity, status LEDs, and a debug interface—while exposing all GPIOs through edge headers.

This project was undertaken to gain hands-on experience with the complete PCB design workflow, including schematic capture, component selection, PCB layout and routing, design verification, and manufacturing file generation.

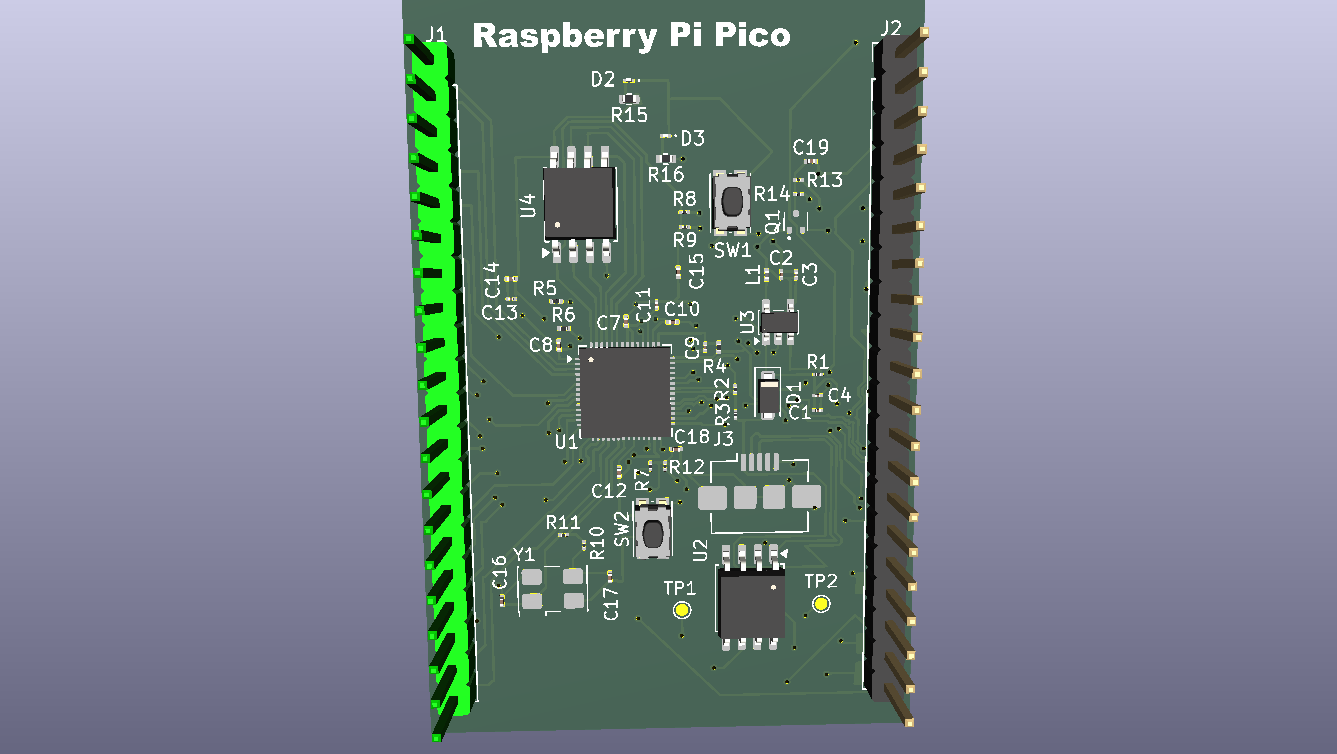

Raspberry pi pico development board, from the project README
From the project README

Main components on the Raspberry pi pico development board

RP2040USBLC6-2SC6ADP2108AUJ-3.3W25Q16JVSS

Raspberry pi pico development board bill of materials (BOM)

48 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
USBLC6-2SC6
U2
1
ADP2108AUJ-3.3
U3
1
W25Q16JVSS
U4
1
DMG1012T
Q1
1
CRYSTAL_GND24_SMALL
Crystal_GND24_Small
Y1
2
CONN_01X20_PIN
Conn_01x20_Pin
J1, J2
1
USB_B_Micro
J3
2
SW_Push
SW1, SW2
1
MBR1020VL
D1
1
RED
D2
1
GREEN
D3
1
1u
L1
2
4U7
4u7
C1, C4
2
10U
10u
C2, C3
7
100N
100n
C7, C8, C10, C12, C14, C15, C18
3
2U2
2u2
C9, C11, C13
2
TBD
C16, C17
1
1n
C19
3
10K
10k
R1, R2, R7
Show 8 more
QtyPartRefs
1
5K6
5k6
R3
1
0R
R4
2
27R
R5, R6
2
NM
R8, R11
3
1k
R9, R10, R12
1
200K
200k
R13
1
100K
100k
R14
2
470R
R15, R16

Raspberry pi pico development board design files

The KiCad project lives in the Srushti-D-Hebbar/raspberry-pi-pico-development-board repository on GitHub; these links point at the commit this page was built from.

Raspberry pi pico development board: common questions

What microcontroller does the Raspberry pi pico development board use?

The Raspberry pi pico development board is built around the RP2040, from the RP2040/RP2350 family.

How big is the Raspberry pi pico development board?

The Raspberry pi pico development board measures 39.1 × 57.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Raspberry pi pico development board?

48 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Raspberry pi pico development board design files?

From the Srushti-D-Hebbar/raspberry-pi-pico-development-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Raspberry pi pico development board design in my own project?

Yes, under the terms of its MIT license, which Srushti-D-Hebbar chose for the repository.

Can I test firmware for the Raspberry pi pico development board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
