About the MosaicHAT-Station PCB

MosaicHAT-Station is an open source Raspberry Pi PCB design by taroz, published on GitHub. It is a 4-layer board measuring 85 × 56.5 mm, with 45 components from 24 distinct parts.

Its main chip is the PRT-14017, from the Raspberry Pi family. Other key parts include the 410322, LD1117AS33TR, SN74AVC4T245PWR and SN74LVC1G126DRLR. By type, the board carries 12 diodes, 8 connectors, 8 capacitors, 7 resistors, 4 ICs and 2 jumpers.

It belongs with the rf & radio, displays & leds and power & battery designs in this gallery.

From the project

mosaicHAT+ GNSS antenna + Raspberry Pi + Touch display + Battery + Case

1. Mount the Raspberry Pi on the touch display. Then mount the mosaicHAT on the Rasberry Pi using the M2.5 18mm spacers and screws.

2. Fix the GNSS antenna using the M2.5 screws. Connect the SMA cable. Mount the touch display on the case using the M2.5 screws.

3. Modify the battery holder to connect the DCDC converter to the battery. Fix the battery holder to the back plate. Then connect the power cable to the mosaicHAT. Fix the front plate using the M3 screws.

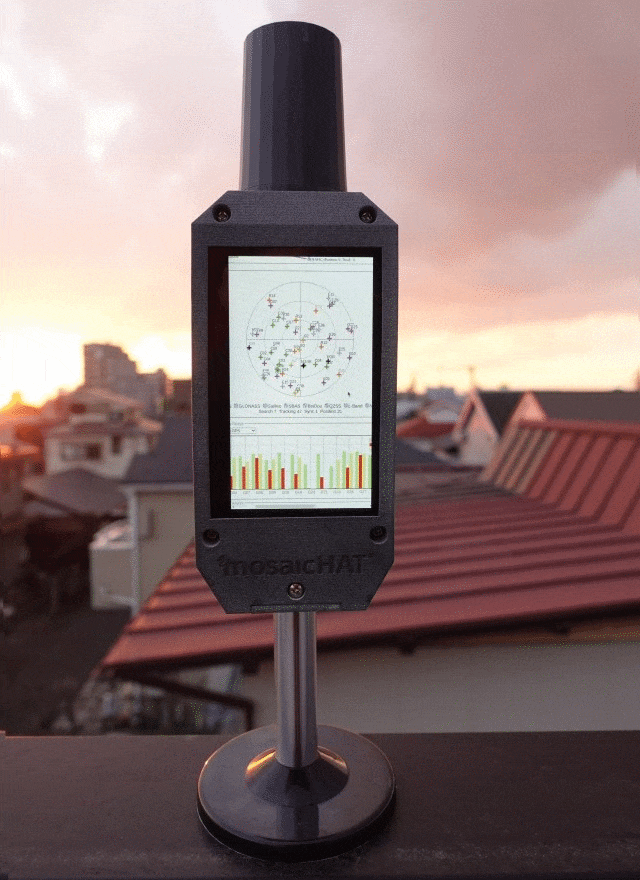

MosaicHAT-Station, from the project README
From the project README

Main components on the MosaicHAT-Station

410322LD1117AS33TRSN74AVC4T245PWRSN74LVC1G126DRLR

MosaicHAT-Station bill of materials (BOM)

45 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
410322
mosaic-X5
U1
1
LD1117AS33TR
U2
1
SN74AVC4T245PWR
SN74AVC4T245PW
U3
1
SN74LVC1G126DRLR
U4
2
132136
Conn_Coaxial
J1, J2
1
1050170001
USB_B_Micro
J3
1
PRT-14017
raspberrypi_hat_OX40HAT
J4
1
61300411121
Conn_01x04_Male
J5
1
61300611121
Conn_01x06_Male
J6
1
CONN_01X02_MALE
Conn_01x02_Male
J7
1
DM3AT-SF-PEJM5
Micro_SD_Card_Det_Hirose_DM3AT
J8
1
ECMF02-2AMX6
FL1
2
2PH1-03-UA
Jumper_NC_Dual
JP1, JP2
1
SW_Push
SW1
2
MBRX120LF-TP
D1, D2
5
151031VS06000
LED
D4, D5, D6, D7, D8
5
SESD0402X1BN-0010-098
D_TVS
D9, D10, D11, D12, D13
2
744786139A
39nH
L1, L2
5
CC0603KRX7R6BB104
100nF
C1, C3, C4, C5, C8
2
CC0603KRX5R6BB106
10uF
C2, C6
Show 4 more
QtyPartRefs
1
un-assembled
C7
5
ERJ-3EKF3300V
R330
R1, R2, R3, R4, R5
1
ERJ-3EKF3302V
R33K
R6
1
ERJ-U3RD1003V
R100K
R7

MosaicHAT-Station design files

The KiCad project lives in the taroz/mosaicHAT-Station repository on GitHub; these links point at the commit this page was built from.

MosaicHAT-Station: common questions

What microcontroller does the MosaicHAT-Station use?

The MosaicHAT-Station is built around the PRT-14017, from the Raspberry Pi family.

How big is the MosaicHAT-Station PCB?

The MosaicHAT-Station measures 85 × 56.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the MosaicHAT-Station?

45 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MosaicHAT-Station design files?

From the taroz/mosaicHAT-Station repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the MosaicHAT-Station design in my own project?

The repository has no license, so all rights stay with taroz. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MosaicHAT-Station without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
