ATtiny85-Smart Diya
tejashviraj19·PCB-Design-Lab·ATtiny85-Smart-Diya/KiCad_Files/ATtiya85-smart-diya.kicad_pcb
About the ATtiny85-Smart Diya PCB
ATtiny85-Smart Diya is an open source AVR/Arduino PCB design by tejashviraj19, published on GitHub. It is a 2-layer board measuring 57.1 × 57.1 mm, with 9 components from 9 distinct parts.
Its main chip is the ATtiny85-20P, from the AVR/Arduino family. By type, the board carries 4 resistors, 1 IC, 1 battery holder, 1 microphone, 1 switch and 1 diode.
From the project
PCB Design projects, KiCad layouts, embedded hardware experiments, and fabrication-ready PCB designs.
A compact sound and light reactive PCB designed using KiCad and ATtiny85.
This project demonstrates the complete PCB design workflow including schematic capture, PCB layout, routing, Gerber generation, and 3D visualization.

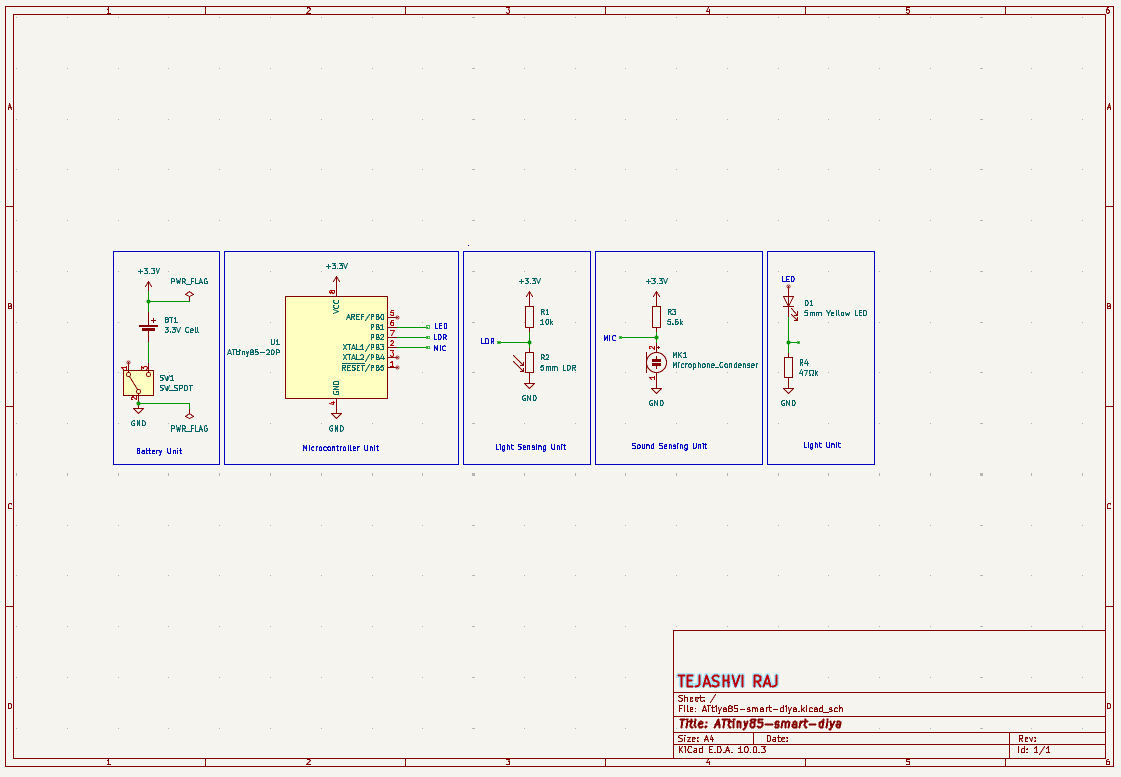

- ATtiny85 Microcontroller - LDR (Light Dependent Resistor) - Condenser Microphone - 5mm Yellow LED - Coin Cell Battery (3.3V) - SPDT Switch

Main components on the ATtiny85-Smart Diya
ATtiny85-Smart Diya bill of materials (BOM)
9 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATtiny85-20P | DIP-8_W7.62mm | U1 |
| 1 | 3.3V Cell | BatteryHolder_Keystone_103_1x20mm | BT1 |
| 1 | Microphone_Condenser | POM-2244P-C3310-2-R | MK1 |
| 1 | SW_SPDT | SW_Slide_SPDT_Straight_CK_OS102011MS2Q | SW1 |
| 1 | 5mm Yellow LED | LED_D5.0mm | D1 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 5mm LDR | R_LDR_5.1x4.3mm_P3.4mm_Vertical | R2 |
| 1 | 5.6k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 470k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
ATtiny85-Smart Diya design files
The KiCad project lives in the tejashviraj19/PCB-Design-Lab repository on GitHub; these links point at the commit this page was built from.
ATtiny85-Smart Diya: common questions
What microcontroller does the ATtiny85-Smart Diya use?
The ATtiny85-Smart Diya is built around the ATtiny85-20P, from the AVR/Arduino family.
How big is the ATtiny85-Smart Diya PCB?
The ATtiny85-Smart Diya measures 57.1 × 57.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ATtiny85-Smart Diya?
9 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the ATtiny85-Smart Diya design files?
From the tejashviraj19/PCB-Design-Lab repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the ATtiny85-Smart Diya design in my own project?
The repository has no license, so all rights stay with tejashviraj19. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ATtiny85-Smart Diya without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
