Portable Boost Converter Module
About the Portable Boost Converter Module
Portable Boost Converter Module is an open source PCB design by tejashviraj19, published on GitHub. It is a 2-layer board measuring 45 × 20 mm, with 13 components from 9 distinct parts.
By type, the board carries 4 connectors, 4 capacitors, 1 diode, 1 inductor and 1 resistor.
It belongs with the power & battery designs in this gallery.
From the project
PCB Design projects, KiCad layouts, embedded hardware experiments, and fabrication-ready PCB designs.

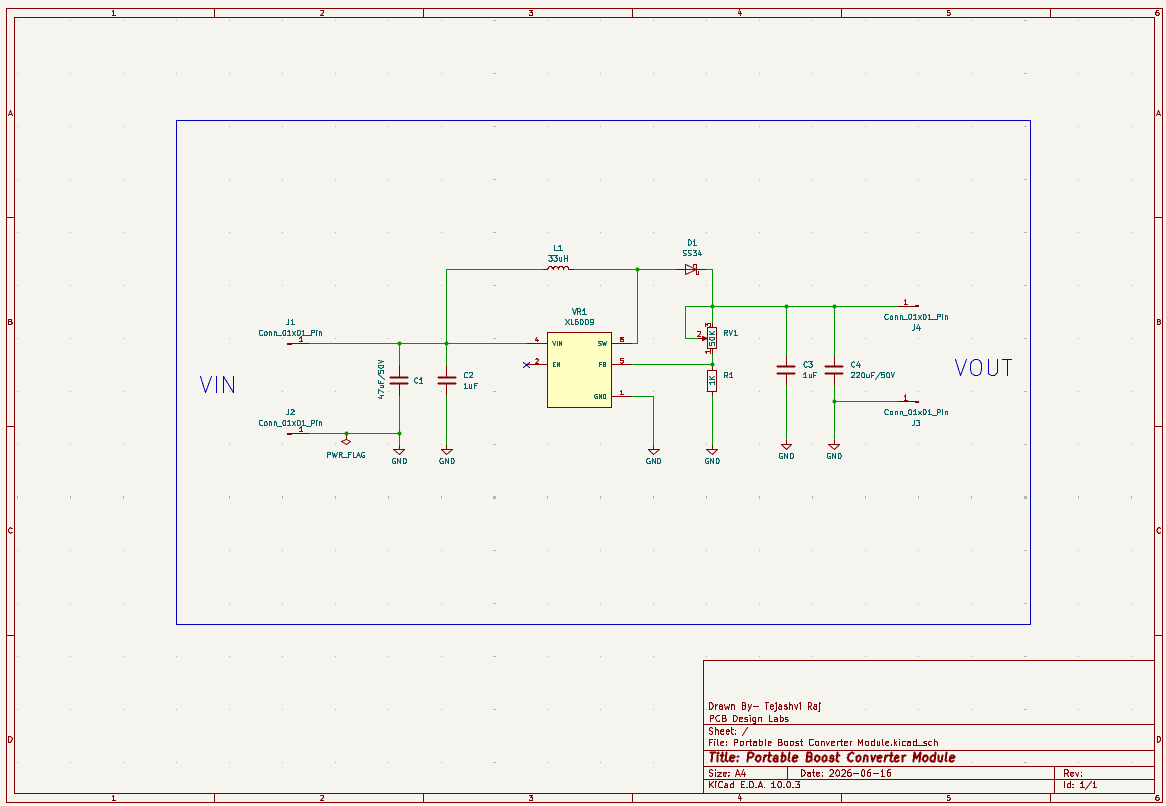

A compact DC-DC boost converter PCB designed using KiCad.
This project demonstrates the complete PCB design workflow including schematic capture, PCB layout, routing, Gerber generation, and 3D visualization.
The Portable Boost Converter Module uses:
- DC-DC Boost Converter IC - Inductor - Schottky Diode - Input & Output Capacitors - Adjustable Feedback Network - Screw Terminal Connectors
Portable Boost Converter Module bill of materials (BOM)
13 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Conn_01x01_Pin | PinHeader_1x01_P2.54mm_Vertical | J1, J2, J3, J4 |
| 1 | 50K | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 1 | XL6009 | XL6009 | VR1 |
| 1 | SS34 | D_SMA | D1 |
| 1 | 33uH | L_12x12mm_H8mm | L1 |
| 1 | 47uF/50V | C_Radial_D6.3mm_H11.0mm_P2.50mm | C1 |
| 2 | 1uF | C_0805_2012Metric | C2, C3 |
| 1 | 220uF/50V | C_Radial_D6.3mm_H11.0mm_P2.50mm | C4 |
| 1 | 1K | R_1206_3216Metric | R1 |
Portable Boost Converter Module design files
The KiCad project lives in the tejashviraj19/PCB-Design-Lab repository on GitHub; these links point at the commit this page was built from.
Portable Boost Converter Module: common questions
How big is the Portable Boost Converter Module?
The Portable Boost Converter Module measures 45 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Portable Boost Converter Module?
13 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Portable Boost Converter Module design files?
From the tejashviraj19/PCB-Design-Lab repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Portable Boost Converter Module design in my own project?
The repository has no license, so all rights stay with tejashviraj19. Use it as a reference, and ask the author before reusing the design.
