About the STM32 GPS Tracking Module
STM32 GPS Tracking Module is an open source STM32 PCB design by tejashviraj19, published on GitHub. It is a 4-layer board measuring 42.5 × 58.5 mm, with 51 components from 34 distinct parts.
Its main chip is the STM32F030C8Tx, from the STM32 family. Other key parts include the SIM808, TPS5430DDA and SMF05CT1G. By type, the board carries 19 capacitors, 13 resistors, 5 diodes, 4 ICs, 4 connectors and 1 transistor.
It belongs with the rf & radio and power & battery designs in this gallery.
From the project
PCB Design projects, KiCad layouts, embedded hardware experiments, and fabrication-ready PCB designs.

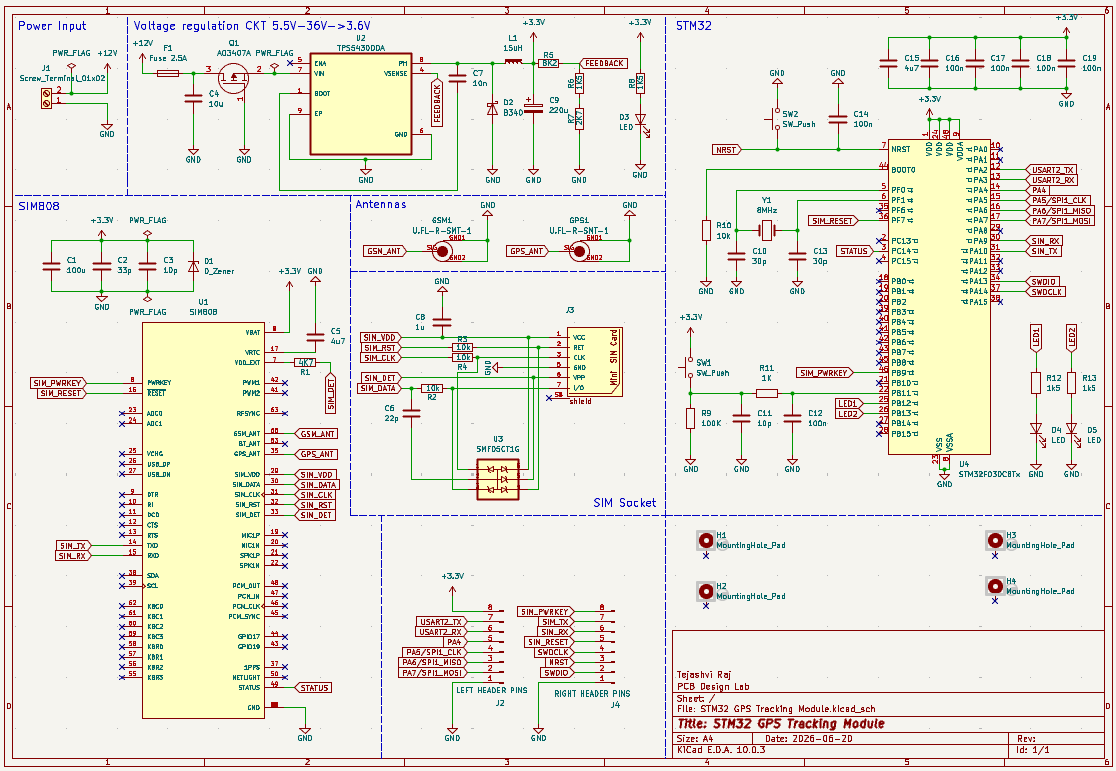

A compact STM32-based GPS Tracking Module designed using KiCad.
This project demonstrates the complete PCB design workflow including schematic capture, PCB layout, multilayer routing, Gerber generation, and 3D visualization.
- STM32F030C8T6 Microcontroller - SIM800 GSM Module - SIM Card Holder - TPS5430 Buck Converter - GPS Interface - GSM & GPS U.FL Connectors - Crystal Oscillator - User & Reset Buttons - SWD Programming Header

Main components on the STM32 GPS Tracking Module
STM32 GPS Tracking Module bill of materials (BOM)
51 components, 34 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SIM808 | XCVR_SIM808 | U1 |
| 1 | TPS5430DDA | VREG_LM5017MR_NOPB | U2 |
| 1 | SMF05CT1G | SOT65P210X110-6N | U3 |
| 1 | STM32F030C8Tx | LQFP-48_7x7mm_P0.5mm | U4 |
| 1 | AO3407A | SOT95P280X125-3N | Q1 |
| 1 | 8MHz | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y1 |
| 1 | Screw_Terminal_01x02 | TerminalBlock_bornier-2_P5.08mm | J1 |
| 1 | LEFT HEADER PINS | PinHeader_1x08_P2.54mm_Vertical | J2 |
| 1 | 693010020611 | 693010020611 | J3 |
| 1 | RIGHT HEADER PINS | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | Fuse 2.5A | Fuse_0402_1005Metric | F1 |
| 2 | U.FL-R-SMT-1 | U.FL-R-SMT-1 | GPS1, GSM1 |
| 1 | D_Zener | D_0805_2012Metric | D1 |
| 1 | B340 | D_SMC | D2 |
| 3 | LED | LED_0603_1608Metric | D3, D4, D5 |
| 1 | 15uH | L_10.4x10.4_H4.8 | L1 |
| 1 | 100u | C_1206_3216Metric | C1 |
| 1 | 33p | C_0402_1005Metric | C2 |
| 2 | 10p | C_0402_1005Metric | C3, C11 |
| 1 | 10u | C_0805_2012Metric | C4 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 4u7 | C_0201_0603Metric | C5, C15 |
| 1 | 22p | C_0402_1005Metric | C6 |
| 1 | 10n | C_0201_0603Metric | C7 |
| 1 | 1u | C_0402_1005Metric | C8 |
| 1 | 220u | CP_EIA-7343-15_Kemet-W | C9 |
| 2 | 30p | C_0402_1005Metric | C10, C13 |
| 6 | 100n | C_0402_1005Metric | C12, C14, C16, C17, C18, C19 |
| 1 | 4K7 | R_0402_1005Metric | R1 |
| 4 | 10k | R_0402_1005Metric | R2, R3, R4, R10 |
| 1 | 8K2 | R_0805_2012Metric | R5 |
| 4 | 1K5 | R_0805_2012Metric | R6, R8, R12, R13 |
| 1 | 2K7 | R_0805_2012Metric | R7 |
| 1 | 100K | R_0201_0603Metric | R9 |
| 1 | 1K | R_0603_1608Metric | R11 |
STM32 GPS Tracking Module design files
The KiCad project lives in the tejashviraj19/PCB-Design-Lab repository on GitHub; these links point at the commit this page was built from.
STM32 GPS Tracking Module: common questions
What microcontroller does the STM32 GPS Tracking Module use?
The STM32 GPS Tracking Module is built around the STM32F030C8Tx, from the STM32 family.
How big is the STM32 GPS Tracking Module?
The STM32 GPS Tracking Module measures 42.5 × 58.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the STM32 GPS Tracking Module?
51 components, from 34 distinct parts. The full bill of materials is listed on this page.
Where can I download the STM32 GPS Tracking Module design files?
From the tejashviraj19/PCB-Design-Lab repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the STM32 GPS Tracking Module design in my own project?
The repository has no license, so all rights stay with tejashviraj19. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the STM32 GPS Tracking Module without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
