GLOWCOST-2v2-mppcInterface-
About the GLOWCOST-2v2-mppcInterface- PCB

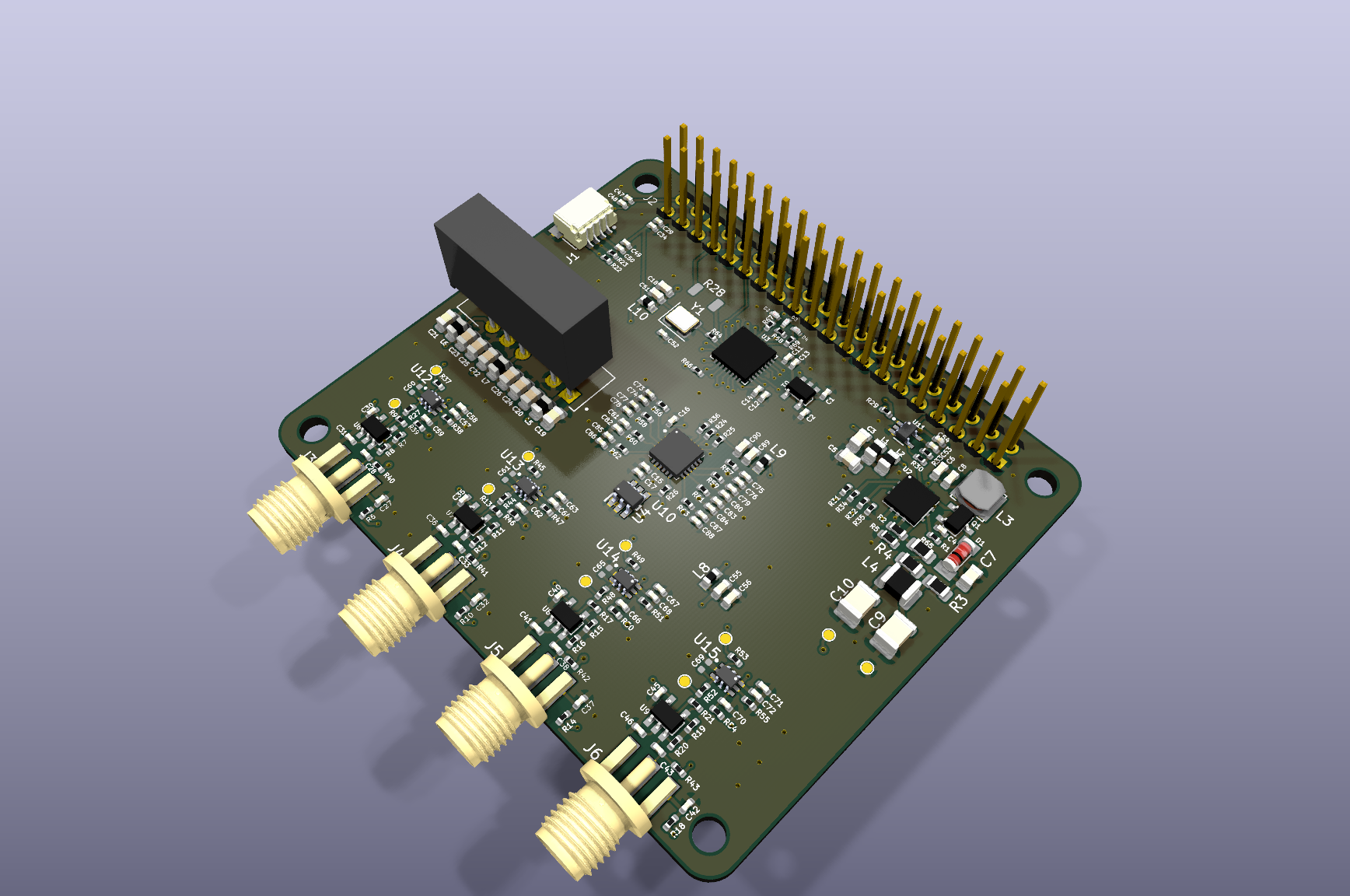

GLOWCOST-2v2-mppcInterface- is an open source FPGA PCB design by tharinduudu, published on GitHub. It is a 6-layer board measuring 65 × 56.5 mm, with 194 components from 53 distinct parts.
Its main chip is the ICE40LP384-SG32, from the FPGA family. Other key parts include the MIC5504-1.2YM5, MAX1932ETC+, REF3430IDBVR, MEA1D0505SC and OPA846IDBVR. By type, the board carries 88 capacitors, 69 resistors, 15 ICs, 10 inductors, 6 connectors and 4 diodes.
It belongs with the sensors and dev boards & breakouts designs in this gallery.
From the project
Four-channel Raspberry Pi HAT for gLOWCOST scintillator/MPPC readout with programmable bias, thresholds, and FPGA hit processing.
gLOWCOST 2v2 is a six-layer Raspberry Pi HAT for MPPC readout, bias control, and fast comparator interfacing. The design combines four sensor-interface channels with programmable bias/control, high-speed analog signal conditioning, FPGA logic, and the Raspberry Pi 40-pin interface.
This repository contains a documented release of the working, hardware-tested KiCad design. The electrical topology, copper routing, footprints, board outline, and stack-up from the tested source have been preserved. Repository hygiene, project portability, release automation, title blocks, and board…
Main components on the GLOWCOST-2v2-mppcInterface-
GLOWCOST-2v2-mppcInterface- bill of materials (BOM)
194 components, 53 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MIC5504-1.2YM5 | SOT-23-5 | U1 |
| 1 | MAX1932ETC+ MAX1932 | TQFN-12 | U2 |
| 1 | ICE40LP384-SG32 ICE40-LP384-SG32 | ICE40-LP384-QFN32 | U3 |
| 1 | REF3430IDBVR | SOT95P280X145-6N | U4 |
| 1 | MEA1D0505SC | CONV_MEA1D0505SC | U5 |
| 4 | OPA846IDBVR OPA846 | SOT-23-5 | U6, U7, U8, U9 |
| 1 | DAC6578SRGET DAC6578xRGE | DAC6578SRGET | U10 |
| 1 | SN74LVC1G08DCKR | SOT65P210X110-5N | U11 |
| 4 | TLV3603DCKR | SOT65P210X110-6N | U12, U13, U14, U15 |
| 1 | BSS123LT1G BSS123L | SOT-23-3 | Q1 |
| 1 | SG-2032CAN | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | SM04B-SRSS-TB_LF__SN_ | JST_SM04B-SRSS-TB_LF__SN_ | J1 |
| 1 | 2223 RPi_GPIO | RPI_Hat_B+ | J2 |
| 4 | CONSMA003.062-G | BATWIRELESS_BWSMA-KE-P001 | J3, J4, J5, J6 |
| 1 | FDLL4148 LL4148 | SOD-80 | D1 |
| 3 | BL-HUB37A-AV-TRB | D-0402 | D2, D3, D4 |
| 2 | CBC2012T470K 47u | L-0805 | L1, L2 |
| 1 | LVS404018-151M-N 150uH | SRN4018 | L3 |
| 1 | NLFV32T-102K-EF 1mH | L-1210 | L4 |
| 3 | MLZ2012N100LT000 10u | L-0805 | L5, L6, L7 |
Show 33 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | BLM18PG121SN1D | IND_BLM18_0603_MUR | L8, L9, L10 |
| 12 | CL05A105KO5NNNC 1u | C-0402 | C1, C2, C13, C17, C28, C33, C34, C38 +4 |
| 7 | TCC0805X7R105K250DTS 1u | C-0805 | C3, C5, C20, C23, C24, C25, C26 |
| 1 | CL05A224KP5NNNC 0u22 | C-0402 | C4 |
| 2 | 0603B105K160NT 1u | C-0603 | C6, C18 |
| 1 | CC0805KKX7R0BB473 47n | C-0805 | C7 |
| 1 | CL10B104KO8NNNC 0u1 | C-0603 | C8 |
| 2 | FS32X105K101EFG 1u | C-1210 | C9, C10 |
| 21 | CL05B104KO5NNNC 0u1 | C-0402 | C11, C12, C14, C15, C16, C27, C29, C30 +13 |
| 3 | HGC0805R5475K500NSLJ 4u7 | C-0805 | C19, C21, C22 |
| 3 | CL10B104KO8NNNC 100n | C-0603 | C51, C56, C90 |
| 17 | CL05B104KO5NNNC 100n | C-0402 | C52, C58, C59, C62, C63, C66, C67, C70 +9 |
| 2 | GRM188R60J476ME15D 47u | C-0603 | C55, C89 |
| 4 | C0402C0G250-102JNE 1n | C-0402 | C57, C64, C68, C72 |
| 4 | GJM1555C1H1R0BB01D 1p | C-0402 | C60, C61, C65, C69 |
| 8 | GRM155R61A475KEAAD 4u7 | C-0402 | C73, C75, C77, C79, C81, C83, C85, C87 |
| 1 | RC0402FR-0720KL 20k | R-0402 | R1 |
| 1 | ERA3AEB2491V 2K49 | R-0603 | R2 |
| 1 | TC0525B8060T5G 806R | R-0805 | R3 |
| 2 | RT0805BRD0749K9L 49.9k | R-0805 | R4, R65 |
| 1 | RT0603BRD072K37L 2K37 | R-0603 | R5 |
| 12 | RT0402BRD071KL 1K | R-0402 | R6, R10, R14, R18, R39, R40, R41, R42 +4 |
| 8 | RT0402BRD0749R9L 49R9 | R-0402 | R7, R8, R11, R12, R15, R16, R19, R20 |
| 4 | RT0402BRD074K99L 4.9K | R-0402 | R9, R13, R17, R21 |
| 10 | RT0402BRD0710KL 10K | R-0402 | R22, R23, R24, R25, R26, R29, R33, R34 +2 |
| 4 | RC0402FR-07200RL 200 | R-0402 | R27, R44, R48, R52 |
| 1 | RC1206FR-070RL 0 | R-1206 | R28 |
| 1 | FRC0402F68R0TS 68R | R-0402 | R30 |
| 2 | ESR01MZPF47R0 47R | R-0402 | R31, R32 |
| 13 | RC0402FR-0722RL 22 | R-0402 | R37, R45, R49, R53, R56, R57, R58, R59 +5 |
| 4 | RC0402FR-07150KL 150K | R-0402 | R38, R47, R51, R55 |
| 1 | 10K | R-0402 | R66 |
| 3 | 1K | R-0402 | R67, R68, R69 |
GLOWCOST-2v2-mppcInterface- design files
The KiCad project lives in the tharinduudu/gLOWCOST-2v2-mppcInterface- repository on GitHub; these links point at the commit this page was built from.
- LayoutRPi_Hat.kicad_pcb
- SchematicRPi_Hat.kicad_sch
- BOMbom/source/LSCS_BOM.xlsx
GLOWCOST-2v2-mppcInterface-: common questions
What microcontroller does the GLOWCOST-2v2-mppcInterface- use?
The GLOWCOST-2v2-mppcInterface- is built around the ICE40LP384-SG32, from the FPGA family.
How big is the GLOWCOST-2v2-mppcInterface- PCB?
The GLOWCOST-2v2-mppcInterface- measures 65 × 56.5 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the GLOWCOST-2v2-mppcInterface-?
194 components, from 53 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the GLOWCOST-2v2-mppcInterface- design files?
From the tharinduudu/gLOWCOST-2v2-mppcInterface- repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the GLOWCOST-2v2-mppcInterface- design in my own project?
The repository has no license, so all rights stay with tharinduudu. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the GLOWCOST-2v2-mppcInterface- without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
