Kimera Base

TheClanLabs·Kimera_Base

Kimera Base PCB layout, top view — open source ESP32 board by TheClanLabs

About the Kimera Base PCB

Kimera Base is an open source ESP32 PCB design by TheClanLabs, published on GitHub. It is a 2-layer board measuring 114.3 × 30.5 mm, with 2 components from 2 distinct parts.

Its main chip is the ESP32-DEVKITC, from the ESP32 family. Other key parts include the E22-900M30S.

It belongs with the rf & radio, iot & wireless and power & battery designs in this gallery.

From the project

Diy PCB for Meshtastic

Important information: The content of this repository has been migrated to https://github.com/TheClanLabs/TheClanKimera/tree/main/KimeraBase/KimeraBaseV-0.2 and this information will be discontinued as of September 17, 2025.

Open-source hardware project consisting of the creation of a device capable of connecting to the Meshtastic network, compatible with the Hydra project, but simplifying its construction.

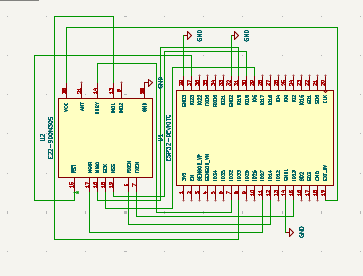

Kimera Base, from the project README
From the project README

Main components on the Kimera Base

ESP32-DEVKITCE22-900M30S

Kimera Base bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
ESP32-DEVKITC
U1
1
E22-900M30S
U2

Kimera Base design files

The KiCad project lives in the TheClanLabs/Kimera_Base repository on GitHub; these links point at the commit this page was built from.

Kimera Base: common questions

What microcontroller does the Kimera Base use?

The Kimera Base is built around the ESP32-DEVKITC, from the ESP32 family.

How big is the Kimera Base PCB?

The Kimera Base measures 114.3 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kimera Base?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kimera Base design files?

From the TheClanLabs/Kimera_Base repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kimera Base design in my own project?

The repository has no license, so all rights stay with TheClanLabs. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Kimera Base without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
