Defcon32 badge

thehackbat·defcon32_badge·kicad/defcon32_badge.kicad_pcb

Defcon32 badge PCB layout, top view — open source ESP32 board by thehackbat
Simulate this board

About the Defcon32 badge PCB

Defcon32 badge is an open source ESP32 PCB design by thehackbat, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60 × 100 mm, with 36 components from 15 distinct parts.

Its main chip is the C2934560, from the ESP32 family. Other key parts include the AMS1117-3.3. By type, the board carries 11 resistors, 8 switches, 6 diodes, 6 capacitors, 3 connectors and 2 ICs.

It belongs with the iot & wireless, wearables and displays & leds designs in this gallery.

From the project

Badge designed for DEFCON32

The Hackbat BAdge has been designed specially for DEFCON32. This badge features the ESP32C3 microcontroller with WIFI and Bluetooth. The board also has LEDs, and an OLED Display to show information.

If you received your badge at DEFCON, read this!!

This microcontroller can be programmed using either the Arduino IDE or the official ESP-IDF.

LED are a must in any badge. The Hackbat Badge has 4 smart LEDs, the WS2812. This LED hs a controller integrated so you can choos the color using a serial protocol. The best of these LED is that you can conenct many of them in series, and send different…

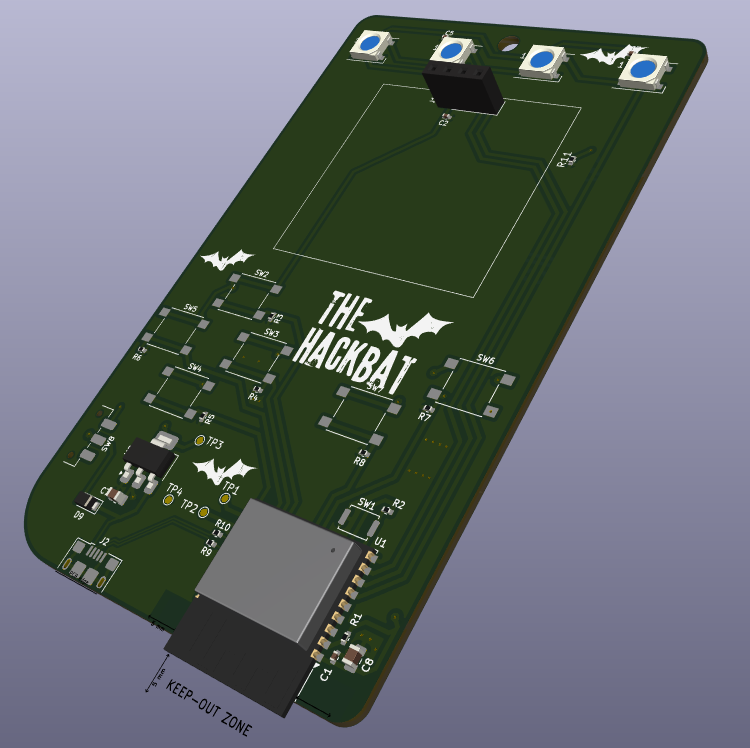

Defcon32 badge, from the project README
From the project README

Main components on the Defcon32 badge

C2934560AMS1117-3.3

Defcon32 badge bill of materials (BOM)

36 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C2934560
ESP32-C3-WROOM-02
U1
1
AMS1117-3.3
U2
1
CONN_01X04_PIN
Conn_01x04_Pin
J1
1
C132562
USB_B_Micro
J2
1
Battery
J3
1
C115357
SW_Push
SW1
6
C455109
SW_Push
SW2, SW3, SW4, SW5, SW6, SW7
1
C92658
SW_SPST
SW8
4
C2920042
WS2812B
D1, D2, D3, D4
1
LED
D5
1
C82544
D_Schottky
D9
4
100N
100n
C1, C2, C3, C5
2
1u
C7, C8
9
10K
10k
R1, R2, R3, R4, R5, R6, R7, R8 +1
2
27
R9, R10

Defcon32 badge design files

The KiCad project lives in the thehackbat/defcon32_badge repository on GitHub; these links point at the commit this page was built from.

Defcon32 badge: common questions

What microcontroller does the Defcon32 badge use?

The Defcon32 badge is built around the C2934560, from the ESP32 family.

How big is the Defcon32 badge PCB?

The Defcon32 badge measures 60 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Defcon32 badge?

36 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Defcon32 badge design files?

From the thehackbat/defcon32_badge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Defcon32 badge design in my own project?

Yes, under the terms of its GPL-3.0 license, which thehackbat chose for the repository.

Can I test firmware for the Defcon32 badge without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
