About the Volumer PCB

Volumer is an open source RP2040/RP2350 PCB design by ThePurpleOne, published on GitHub under the MIT license. It is a 4-layer board measuring 90 × 80 mm, with 38 components from 16 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS and LD1117S33TR. By type, the board carries 15 capacitors, 8 resistors, 4 diodes, 3 ICs, 2 switches and 1 crystal.

From the project

Hardware module to easily control Individual Windows app volumes, just like the volume Mixer.

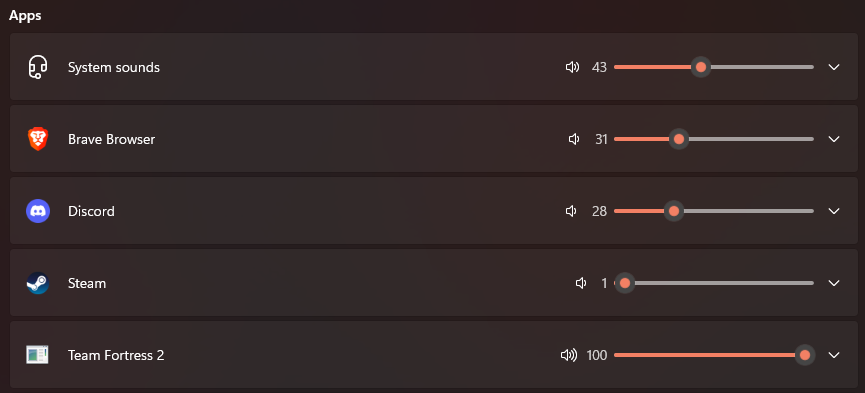

Accessing this window is a pain, especially if you're in game and you need to quickly lower that annoying SCREAMING discord friend in order to hear some terrorist footsteps.

Then you can install the software on the PC and flash the firmware on the Board: - Install the PC app - Install/Update Board Firmware

There is no case for now, don't hesitate to contribute ! Here is the dimensions

Volumer, from the project README — From the project README

Main components on the Volumer

W25Q128JVS LD1117S33TR RP2040

Volumer bill of materials (BOM)

38 components, 16 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	W25Q128JVS	SOIC-8_5.23x5.23mm_P1.27mm	U1
1	LD1117S33TR	SOT-223-3_TabPin2	U2
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U3
1	12MHZ 12Mhz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
2	TS-3025-B-C-B	TS-1187A-B-A-B	SW1, SW2
1	C2765186 ~	USBC_16P	USB1
4	PTA4543-2015CPB104 slide_pot	PTA45432015CPB503	VR1, VR2, VR3, VR4
4	WS2812B	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D1, D2, D3, D4
10	100N 100n	C_0603_1608Metric	C1, C2, C6, C7, C10, C11, C12, C13 +2
1	10U 10u	C_0603_1608Metric	C3
2	30P 30p	C_0603_1608Metric	C4, C5
2	1u	C_0603_1608Metric	C8, C9
2	5K1 5k1	R_0603_1608Metric	R1, R2
2	10K 10k	R_0603_1608Metric	R3, R5
2	1k	R_0603_1608Metric	R4, R6
2	33	R_0603_1608Metric	R7, R8

Volumer design files

The KiCad project lives in the ThePurpleOne/volumer repository on GitHub; these links point at the commit this page was built from.
