HyperNet Mainboard PCB layout, top view — open source RP2040/RP2350 board by TheStaticTurtle

About the HyperNet Mainboard PCB

HyperNet Mainboard is an open source RP2040/RP2350 PCB design by TheStaticTurtle, published on GitHub under the MIT license. It is a 2-layer board measuring 191.5 × 100 mm, with 175 components from 50 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the PCA9544APW, SN65LVDT2DBV, SN65LVDS1DBV, AM26LV32XD and TANG-NANO-9K. By type, the board carries 63 capacitors, 52 resistors, 19 ICs, 18 connectors, 8 LEDs and 3 transistors.

It belongs with the audio designs in this gallery.

From the project

HyperNet is an 8-in, 8-out open-source audio stagebox based on Ultranet

HyperNet is an 8-in, 8-out open-source audio stagebox designed for enthusiasts who want to transmit high-quality multi-channel audio over CAT-5 or fiber-optic networks. The protocol is based on Berhringer UltraNet.

The full story of this project is available here: - https://blog.thestaticturtle.fr/ultranet-adventures-part-1/ - https://blog.thestaticturtle.fr/ultranet-adventures-part-2/

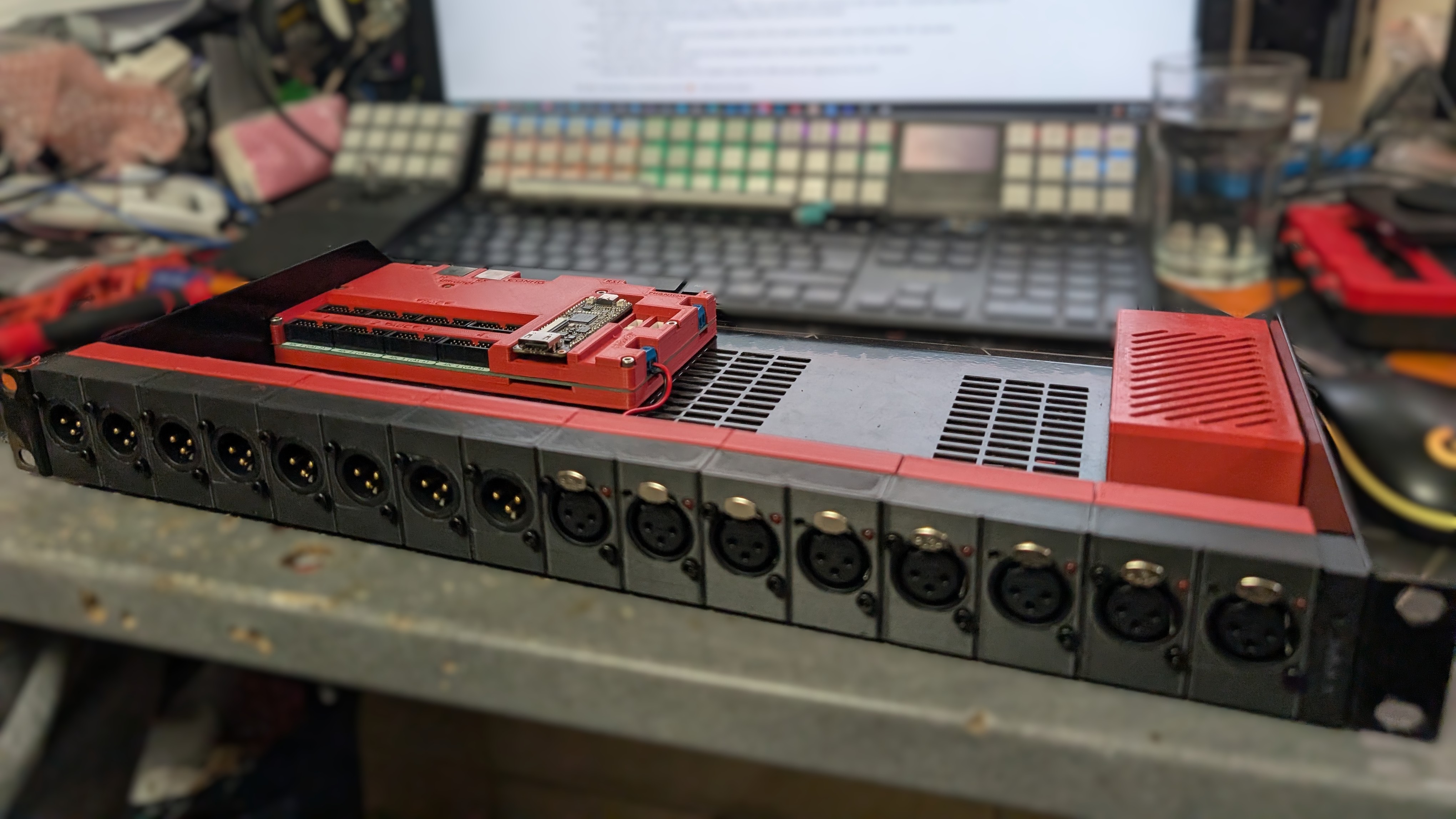

HyperNet Mainboard, from the project README
From the project README

Main components on the HyperNet Mainboard

PCA9544APWSN65LVDT2DBVSN65LVDS1DBVAM26LV32XDTANG-NANO-9KAM26LS31CDXL1509-3.3XL1509-5.0DIX9211PTR74LVC125RaspberryPi_Pico

HyperNet Mainboard bill of materials (BOM)

175 components, 50 distinct parts — part numbers from the project's BOM.
