About the DevBoard-202 PCB

DevBoard-202 is an open source RP2040/RP2350 PCB design by ThongNQ867, published on GitHub. It is a 2-layer board measuring 30 × 51 mm, with 38 components from 20 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C39051 and C2843335. By type, the board carries 17 capacitors, 10 resistors, 4 connectors, 3 ICs, 2 diodes and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This is a dev board that runs with the RP2040 but structured more simple than Pi Pico. The schematic is inspired by the document "Hardware design with RP2040", the PCB is made with the tutorial from @KaiPereira

Using instruction: Using this development board is similar to any other development board. We can just plug wires to GPIO pins to use. The usage of GPIO pins can be find on the datasheet of Raspberry Pi Pico or the RP2040 itself. This dev board can be used with external power source, and to do so, we can wire a 5V power source to the VBus or VSYS pins.

While there is a tutorial from Blueprint, I think it is better to fact check stuffs again and get understand more clearly about how to set up the value for resistors and capacitors by myself from these 2 links: RP2040 datasheet…

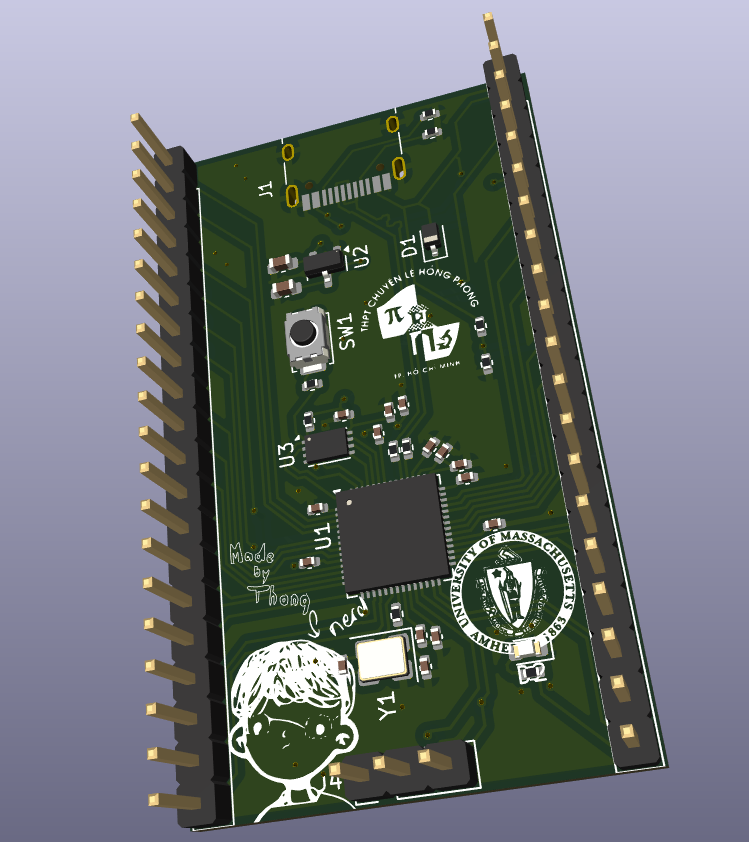

DevBoard-202, from the project README — From the project README

Main components on the DevBoard-202

C2040 C39051 C2843335

DevBoard-202 bill of materials (BOM)

38 components, 20 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	C2040 RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	C39051 MCP1700x-330xxTT	SOT-23	U2
1	C2843335 W25Q16JVZPIQ TR	Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm	U3
1	C9002 12 MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	C165948 USB_C_Receptacle_USB2.0_14P	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
2	Conn_01x20	PinHeader_1x20_P2.54mm_Vertical	J2, J3
1	Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J4
1	C720477 SW_Push	SW_Push_SPST_NO_Alps_SKRK	SW1
1	C2128 1N4148WS	D_SOD-323	D1
1	C2286 LED	LED_0402_1005Metric	D2
11	C1525 0.1 uF	C_0402_1005Metric	C1, C2, C3, C4, C5, C6, C7, C8 +3
2	C52923 1 uF	C_0402_1005Metric	C9, C14
2	C96446 10 uF	C_0603_1608Metric	C15, C16
2	C1562 33 pF	C_0402_1005Metric	C17, C18
2	C25905 5.1k	R_0402_1005Metric	R1, R2
2	C174257 27	R_0402_1005Metric	R3, R4
2	C11702 1k	R_0402_1005Metric	R5, R7
2	C25744 10k	R_0402_1005Metric	R6, R9
1	C25908 5k6	R_0402_1005Metric	R8
1	C25118 470	R_0402_1005Metric	R10

DevBoard-202 design files

The KiCad project lives in the ThongNQ867/DevBoard-202 repository on GitHub; these links point at the commit this page was built from.

DevBoard-202: common questions

What microcontroller does the DevBoard-202 use?

The DevBoard-202 is built around the C2040, from the RP2040/RP2350 family.

How big is the DevBoard-202 PCB?

The DevBoard-202 measures 30 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DevBoard-202?

38 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the DevBoard-202 design files?

From the ThongNQ867/DevBoard-202 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the DevBoard-202 design in my own project?

The repository has no license, so all rights stay with ThongNQ867. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the DevBoard-202 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
