Four different buck circuits on a single PCB benchmarked

To get an understanding of different buck ICs and their drawbacks and benefits I designed this PCB. While all of them worked, some performed better than others. To verify my first impressions while initial testing I benchmarked the ICs over different voltages and currents.

- XL1509-ADJE1 [[datasheet]](https://components.ubitap.com/datasheet/XL1509.pdf) - input voltage range: 4.5..40V - output voltage: 1.23..37V (fixed versions available too) - output current: 2A - switching frequency: 50kHz/150kHz - MT2492…

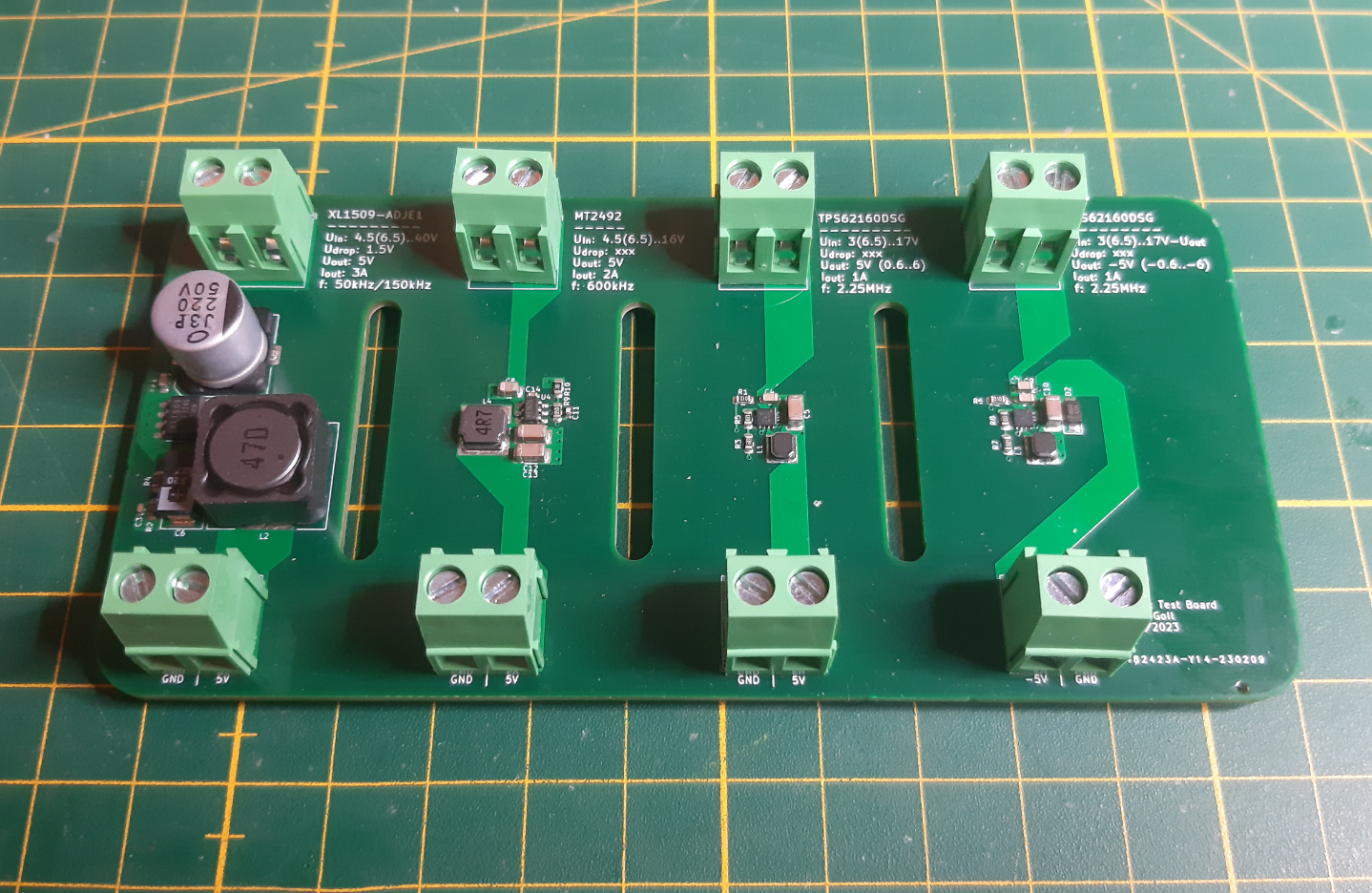

Pcb buck test, from the project README
