About the CoolKidsBadge-2024 PCB

CoolKidsBadge-2024 is an open source ESP32 PCB design by tixlegeek, published on GitHub under the GPL-3.0 license. It is a board, with 74 components from 43 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the NRF24L01_SMD, AMS1117-3.3 and CH340C. By type, the board carries 14 capacitors, 12 test points, 9 resistors, 6 jumpers, 5 transistors and 4 ICs.

It belongs with the wearables and iot & wireless designs in this gallery.

From the project

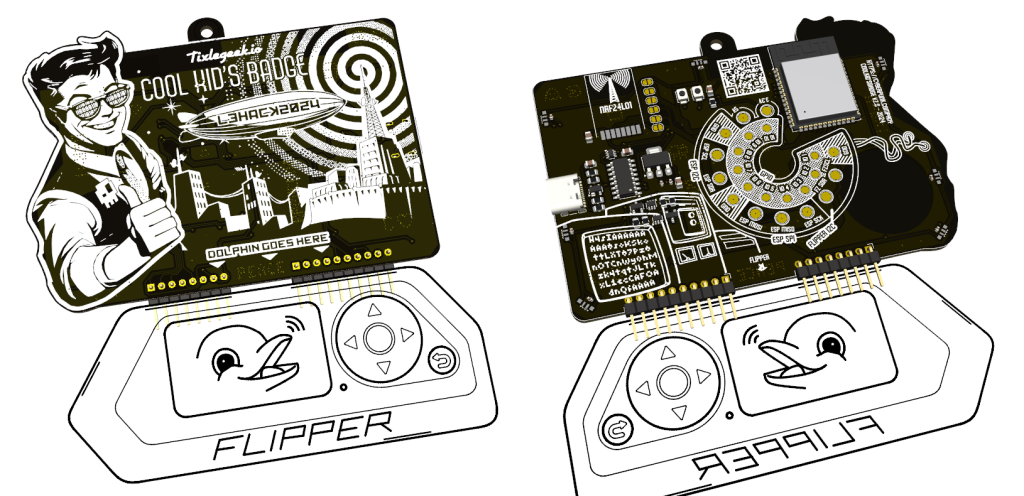

The CoolKid'sBadge is a convention electronic badge created for the LeHack2024 Cyber-security convention in Paris(Fr) (not affiliated), containing an ESP32S3 with 16Mb Flash, a NRF24L01 Slot, and a FlipperZero interface, and much more!

The CoolKid'sBadge is a convention electronic badge created for the LeHack2024 Cyber-security convention in Paris(Fr) (not affiliated), containing an ESP32S3 with 16Mb Flash, a NRF24L01 Slot, a FlipperZero interface, 7 LEDs and some pads. It can be powered directly from the GPIO Port of the FlipperZero, or via the USB C Connector.

This project started by 2023, but could not be ready in time for LeHack2023. So the project continued live on twitch at https://twitch.tv/tixlegeek

Main components on the CoolKidsBadge-2024

ESP32-S3-WROOM-1NRF24L01_SMDAMS1117-3.3CH340C

CoolKidsBadge-2024 bill of materials (BOM)

74 components, 43 distinct parts.

QtyPartRefs
1
ESP32-S3-WROOM-1
U1
1
NRF24L01_SMD
U2
1
AMS1117-3.3
U3
1
CH340C
U4
2
MMDT2907A
Q1, Q3
2
DMP1045U
Q2, Q4
1
UMH3N
Q5
1
USB_C_Receptacle_USB2.0_16P
J1
1
Conn_01x08_Pin
J4
1
Conn_01x10_Pin
J5
1
FLIPPER ZERO
FZ1
1
IO1
IO1
1
IO2
IO2
1
IO3
IO3
1
IO4
IO4
1
IO5
IO5
1
IO6
IO6
1
IO7
IO7
1
IO8
IO8
1
IO9
IO9
Show 23 more
QtyPartRefs
1
IO10
IO10
6
Jumper_2_Small_Bridged
JP1, JP2, JP3, JP4, JP5, JP6
7
SK6805SIDE-D
SK1, SK2, SK3, SK4, SK5, SK6, SK7
1
BOOT
SW1
1
RESET
SW2
1
3.3V
TP1
1
5V
TP2
3
GND
TP3, TP6, TP12
1
ESP_SCL
TP4
1
ESP_SDA
TP5
1
ESP_MOSI
TP7
1
ESP_MISO
TP8
1
ESP_SCK
TP9
1
FZ_SDA
TP10
1
FZ_SCL
TP11
1
PRTR5V0U2X
D1
9
100nF
C1, C2, C8, C9, C10, C11, C12, C13 +1
4
100nF
C3, C4, C6, C7
1
10uF
C5
4
100k
R1, R2, R3, R4
2
5k1
R5, R6
2
22
R7, R8
1
10k
R9

CoolKidsBadge-2024 design files

The KiCad project lives in the tixlegeek/CoolKidsBadge-2024 repository on GitHub; these links point at the commit this page was built from.

CoolKidsBadge-2024: common questions

What microcontroller does the CoolKidsBadge-2024 use?

The CoolKidsBadge-2024 is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How many components are on the CoolKidsBadge-2024?

74 components, from 43 distinct parts. The full bill of materials is listed on this page.

Where can I download the CoolKidsBadge-2024 design files?

From the tixlegeek/CoolKidsBadge-2024 repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the CoolKidsBadge-2024 design in my own project?

Yes, under the terms of its GPL-3.0 license, which tixlegeek chose for the repository.

Can I test firmware for the CoolKidsBadge-2024 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
