NQSAP Output Display

TomNisbet·nqsap-pcb·NQSAP PCB schematics/output-led/output-led.kicad_pcb

NQSAP Output Display PCB layout, top view — open source AVR/Arduino board by TomNisbet
Simulate this board

About the NQSAP Output Display PCB

NQSAP Output Display is an open source AVR/Arduino PCB design by TomNisbet, published on GitHub under the MIT license. It is a 2-layer board measuring 102 × 96 mm, with 18 components from 12 distinct parts.

Its main chip is the ATmega328P, from the AVR/Arduino family. Other key parts include the 74HCT138. By type, the board carries 6 connectors, 5 resistors, 2 ICs, 2 switches, 2 capacitors and 1 diode.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

NQSAP 8-bit computer PCB version

A multi-PCB version of the NQSAP 8-bit computer

Visit the NQSAP-PCB documentation pages for detailed design notes and schematics.

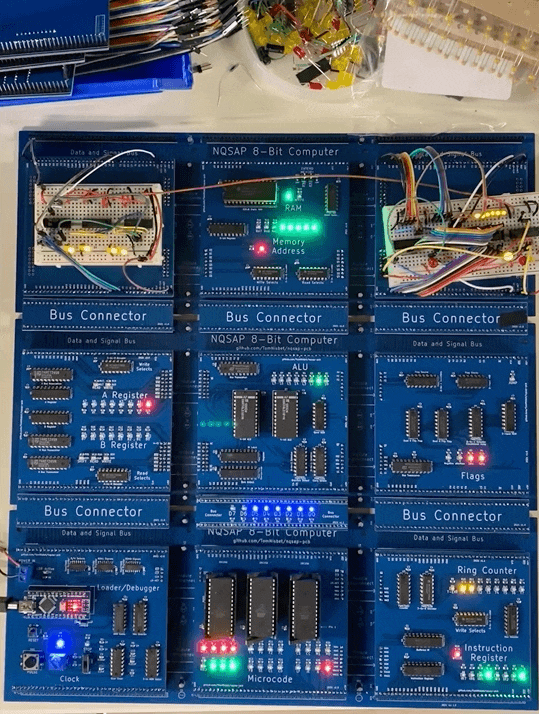

NQSAP Output Display, from the project README
From the project README

Main components on the NQSAP Output Display

ATmega328P74HCT138

NQSAP Output Display bill of materials (BOM)

18 components, 12 distinct parts.

QtyPartRefs
1
ATmega328P
U1
1
74HCT138
U2
2
Bus
J1, J2
1
AVR PGM
J3
1
7-Segment Common Anode Display
J4
2
support
J5, J6
1
Mode 0
SW1
1
Mode 1
SW2
1
LATCH
D1
2
0.1uF
C1, C2
1
R_RED
R1
4
R_SEG
R2, R3, R4, R5

NQSAP Output Display design files

The KiCad project lives in the TomNisbet/nqsap-pcb repository on GitHub; these links point at the commit this page was built from.

NQSAP Output Display: common questions

What microcontroller does the NQSAP Output Display use?

The NQSAP Output Display is built around the ATmega328P, from the AVR/Arduino family.

How big is the NQSAP Output Display PCB?

The NQSAP Output Display measures 102 × 96 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NQSAP Output Display?

18 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the NQSAP Output Display design files?

From the TomNisbet/nqsap-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the NQSAP Output Display design in my own project?

Yes, under the terms of its MIT license, which TomNisbet chose for the repository.

Can I test firmware for the NQSAP Output Display without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
