Unrouted PCB layout, top view — open source ESP32 board by tsmiltonAgents

About the Unrouted PCB

Unrouted is an open source ESP32 PCB design by tsmiltonAgents, published on GitHub. It is a 2-layer board measuring 80 × 54 mm, with 35 components from 27 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8, from the ESP32 family. Other key parts include the AMS1117-3.3, MAX3485ESA+T and USBLC6-2SC6. By type, the board carries 9 resistors, 8 capacitors, 5 connectors, 4 ICs, 3 switches and 3 diodes.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

A small ESP32-S3 board that drives the wired DMX512 input of a Neewer PL60C panel light so the light can be ramped up slowly in the morning (sunrise alarm). Rev A, 2026-09-02.

A small ESP32-S3 board that drives the wired DMX512 input of a Neewer PL60C panel light so the light can be ramped up slowly in the morning (sunrise alarm). Rev A, 2026-09-02.

Everything in this repository is generated by scripts (./build.sh): schematic, PCB, autorouting, design-rule checks, Gerbers, and the JLCPCB BOM / pick-and-place files. The design passes KiCad ERC and DRC with zero errors, the schematic and PCB netlists are cross-checked against the single source of truth (hw/design.py), and every part number has been verified in stock on LCSC/JLCPCB.

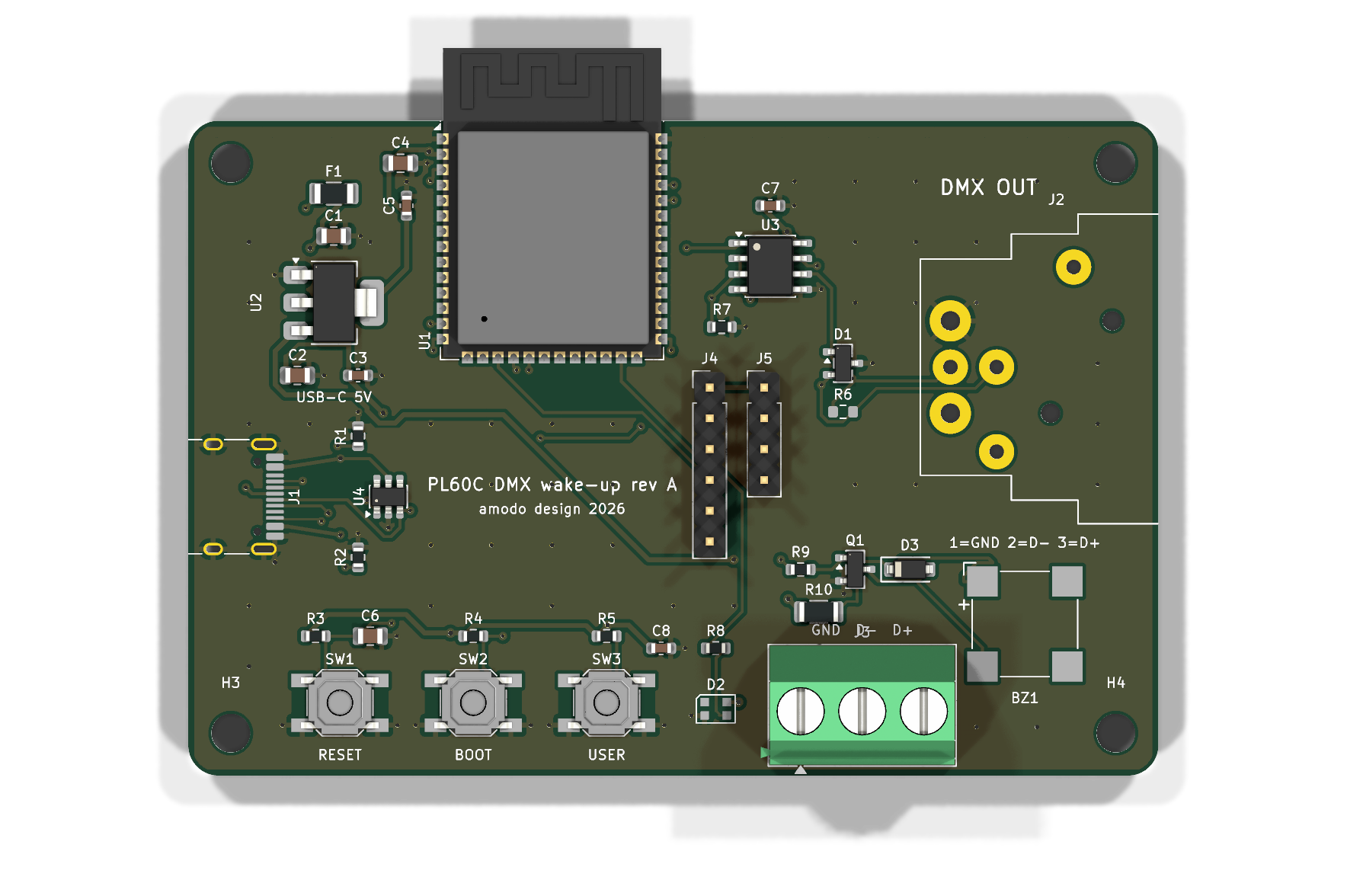

Unrouted, from the project README
From the project README

Main components on the Unrouted

ESP32-S3-WROOM-1-N8AMS1117-3.3MAX3485ESA+TUSBLC6-2SC6

Unrouted bill of materials (BOM)

35 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N8
U1
1
AMS1117-3.3
U2
1
MAX3485ESA+T
MAX3485
U3
1
USBLC6-2SC6
U4
1
S8050
Q1
1
TYPE-C-31-M-12
USB-C 16P
J1
1
NC5FAH
XLR-5 female (DMX OUT)
J2
1
KF301-5.0-3P
DMX pigtail
J3
1
2.54-1X6P
EXPANSION
J4
1
B-2100S04P-A110
UART0
J5
1
MLT-8530
BZ1
1
BSMD1206-100-30V
0.75A PTC
F1
1
TS-1187A-B-A-B
RESET
SW1
1
TS-1187A-B-A-B
BOOT
SW2
1
TS-1187A-B-A-B
USER
SW3
1
SM712
D1
1
WS2812B-B/T
WS2812B
D2
1
B5819W
1N4148W
D3
2
10UF
10uF
C1, C4
1
22UF
10uF
C2
Show 7 more
QtyPartRefs
4
100NF
100nF
C3, C5, C7, C8
1
CL21B105KBFNNNE
1uF
C6
2
5.1K
5.1k
R1, R2
4
10K
10k
R3, R4, R5, R7
1
120R
R6
1
330R
R8
1
470R
1k
R9

Unrouted design files

The KiCad project lives in the tsmiltonAgents/pl60c-dmx-wakeup repository on GitHub; these links point at the commit this page was built from.

Unrouted: common questions

What microcontroller does the Unrouted use?

The Unrouted is built around the ESP32-S3-WROOM-1-N8, from the ESP32 family.

How big is the Unrouted PCB?

The Unrouted measures 80 × 54 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Unrouted?

35 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Unrouted design files?

From the tsmiltonAgents/pl60c-dmx-wakeup repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Unrouted design in my own project?

The repository has no license, so all rights stay with tsmiltonAgents. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Unrouted without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
