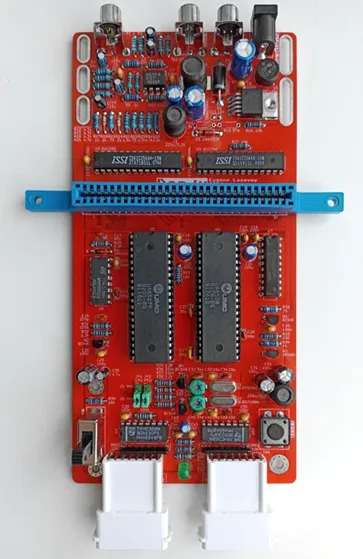

About the Dendy PCB
Dendy is an open source PCB design by UzixLS, published on GitHub. It is a 2-layer board measuring 91 × 186.5 mm, with 127 components from 63 distinct parts.
Other key parts include the LM2596T-ADJ, 4558D, 61C256, UA6527P and UA6538. By type, the board carries 45 capacitors, 45 resistors, 10 ICs, 7 connectors, 5 transistors and 5 diodes.
It belongs with the retro computing and audio designs in this gallery.
From the project
Yet another Dendy (Famicom) clone - 8-bit home video game console
- PCB optimized for NewGame's case - Almost all components is DIP (THT) - 9-12V DC power supply with any polarity - Step-down switching regulator - PNP+NPN transistors-based video amplifier - OpAmp-based audio mixer/amplifier - Two switchable quartz crystals (PAL+NTSC)
authors of the following projects, which served as inspiration and as reference for my development:

Main components on the Dendy
Dendy bill of materials (BOM)
127 components, 63 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM2596T-ADJ | TO-220-263-5_Horizontal_TabDown | U1 |
| 1 | 4558D | DIP-8_W7.62mm_LongPads | U2 |
| 2 | 61C256 | DIP-28_W7.62mm | U3, U4 |
| 1 | UA6527P | DIP-40_W15.24mm_Socket | U5 |
| 1 | UA6538 | DIP-40_W15.24mm_Socket | U6 |
| 1 | 74LS373 | DIP-20_W7.62mm | U7 |
| 1 | 74LS139 | DIP-16_W7.62mm | U8 |
| 2 | 74HC368 | DIP-16_W7.62mm | U9, U10 |
| 4 | BC549 | TO-92_Inline_Wide_CBE | Q1, Q2, Q4, Q5 |
| 1 | 2N5401 | TO-92_Inline_Wide_EBC | Q3 |
| 1 | 21.47727MHz | Crystal_HC49-U_Vertical | Y1 |
| 1 | 26.601712MHz | Crystal_HC49-U_Vertical | Y2 |
| 3 | RCJ-014 | CUI_RCJ-01X | J1, J2, J3 |
| 1 | DS-210 | BarrelJack_Horizontal | J4 |
| 1 | FC 60 pin cartridge slot | FC60 | J5 |
| 2 | DB15_Male | DSUB-15_Male_Horizontal_P2.77x2.54mm_EdgePinOffset9.40mm | J8, J9 |
| 1 | 1A | Fuse_1812_4532Metric_Pad1.30x3.40mm_HandSolder | F1 |
| 2 | Jumper_3_Bridged12 | PinHeader_1x03_P2.54mm_Vertical | JP1, JP2 |
| 1 | Button THT | FC_Reset_Switch_Universal | SW1 |
| 1 | SW_SPDT | FC_Power_Switch_Universal | SW2 |
Show 43 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2W10 | Diode_Bridge_Round_D10.0mm | D1 |
| 1 | 1N5822 | D_DO-201AD_P15.24mm_Horizontal | D2 |
| 1 | 1N4733A | D_DO-41_SOD81_P10.16mm_Horizontal | D3 |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D4 |
| 1 | LED | LED_D5.0mm | D5 |
| 1 | 47uH/2A | L_12x12mm_H8mm | L1 |
| 2 | 220u/0.2A | L_Radial_D8.7mm_P5.00mm_Fastron_07HCP | L3, L4 |
| 5 | 10u | CP_Radial_D4.0mm_P2.00mm | C1, C3, C5, C6, C10 |
| 15 | 100n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C2, C7, C8, C13, C14, C15, C16, C18 +7 |
| 1 | 470u/25V | CP_Radial_D10.0mm_P5.00mm | C4 |
| 1 | 220u/16V | CP_Radial_D8.0mm_P3.50mm | C9 |
| 1 | 10n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C11 |
| 6 | 100u | CP_Radial_D6.3mm_P2.50mm | C12, C20, C21, C29, C30, C31 |
| 2 | 68p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C17, C26 |
| 1 | 330p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C22 |
| 1 | 30p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C23 |
| 1 | 220p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C24 |
| 1 | 51p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C27 |
| 2 | 31p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C32, C40 |
| 2 | 18p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C33, C41 |
| 2 | 15p | C_Disc_D5.0mm_W2.5mm_P2.50mm | C34, C42 |
| 1 | 4.7u | CP_Radial_D4.0mm_P2.00mm | C35 |
| 2 | 30p | C_Trimmer_GKU_L5.6mm_W5.0mm_P5.8mm | C36, C37 |
| 1 | 1u | CP_Radial_D4.0mm_P2.00mm | C43 |
| 2 | 1 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 2 | 47k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4 |
| 4 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R9, R17, R34 |
| 8 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6, R10, R14, R27, R29, R39, R41, R42 |
| 2 | 510 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7, R8 |
| 1 | 3k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R11 |
| 6 | 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R12, R15, R16, R23, R24, R26 |
| 1 | 976 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R13 |
| 2 | 2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R18, R20 |
| 3 | 75 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R19, R22, R30 |
| 1 | 1.5k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R21 |
| 1 | 2.2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R25 |
| 4 | 1.2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R28, R32, R35, R38 |
| 1 | 150k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R31 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R33 |
| 2 | 220k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R36, R37 |
| 1 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R40 |
| 1 | 470 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R43 |
| 2 | 10k | R_Array_SIP8 | RN1, RN2 |
Dendy design files
The KiCad project lives in the UzixLS/dendy repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/rev.A/dendy.kicad_pcb
- Schematicpcb/rev.A/dendy.kicad_sch
Dendy: common questions
How big is the Dendy PCB?
The Dendy measures 91 × 186.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dendy?
127 components, from 63 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dendy design files?
From the UzixLS/dendy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dendy design in my own project?
The repository has no license, so all rights stay with UzixLS. Use it as a reference, and ask the author before reusing the design.
