Zx tsid PCB layout, top view — open source board by UzixLS
Simulate this board

About the Zx tsid PCB

Zx tsid is an open source PCB design by UzixLS, published on GitHub under the MIT license. It is a 2-layer board measuring 83 × 39.5 mm, with 77 components from 29 distinct parts.

Other key parts include the YM2149, SAA1099, NE5532DR, AMS1117-3.3 and 8580. By type, the board carries 34 resistors, 24 capacitors, 6 ICs, 6 jumpers, 4 connectors and 1 crystal.

It belongs with the test & measurement designs in this gallery.

From the project

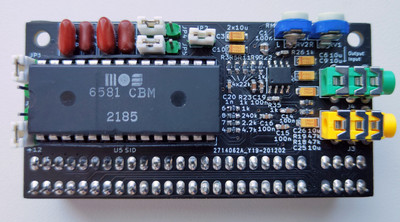

MOS SID sound card for ZX Spectrum

PCB is compatible with SID 6581 and 8580, but also contains integrated SwinSID emulator.

SID accessible via #xxCF port, where xx - SID's register number.

You may connect your ZX Spectrum audio output to second 3.5mm jack and it will be mixed in sound card output signal.

NOTE: +12V/+9V voltage is strictly required for SID, your ZX Spectrum or clone must provide it on the edge connector.

Zx tsid, from the project README
From the project README

Main components on the Zx tsid

YM2149SAA1099NE5532DRAMS1117-3.38580XC9572XL-VQ64

Zx tsid bill of materials (BOM)

77 components, 29 distinct parts.

QtyPartRefs
1
YM2149
U1
1
SAA1099
U2
1
NE5532DR
U3
1
AMS1117-3.3
U4
1
8580
U5
1
XC9572XL-VQ64
U6
1
XO91
X1
1
Conn_02x05_Odd_Even
J1
1
zx_edge
J2
2
PJ307
J3, J4
5
Jumper_3_Open
JP1, JP2, JP3, JP4, JP5
1
Jumper_2_Open
JP6
2
RM063 47k
RV1, RV2
8
100n
C1, C4, C12, C13, C14, C15, C16, C17
2
2.2u
C2, C10
2
1n
C3, C19
2
100u/16V
C5, C11
2
10u
C6, C9
2
4.7u
C7, C20
2
4.7n
C8, C23
Show 9 more
QtyPartRefs
2
470p
C18, C22
2
22n
C21, C24
13
10k
R1, R8, R9, R14, R15, R16, R17, R20 +5
10
1k
R2, R6, R11, R12, R13, R25, R26, R28 +2
2
20k
R3, R7
2
8.2k
R18, R19
4
220k
R22, R23, R30, R33
1
330k
R29
2
47k
R31, R32

Zx tsid design files

The KiCad project lives in the UzixLS/zx-tsid repository on GitHub; these links point at the commit this page was built from.

Zx tsid: common questions

How big is the Zx tsid PCB?

The Zx tsid measures 83 × 39.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Zx tsid?

77 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Zx tsid design files?

From the UzixLS/zx-tsid repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Zx tsid design in my own project?

Yes, under the terms of its MIT license, which UzixLS chose for the repository.
