KiCad-GD32FxxxRx no-PHY

vanvught·KiCad-GD32FxxxRx-no-PHY

KiCad-GD32FxxxRx no-PHY PCB layout, top view — open source GD32 board by vanvught
Simulate this board

About the KiCad-GD32FxxxRx no-PHY PCB

KiCad-GD32FxxxRx no-PHY is an open source GD32 PCB design by vanvught, published on GitHub under the MIT license. It is a 2-layer board measuring 77.2 × 59.7 mm, with 48 components from 23 distinct parts.

Its main chip is the GD32F407RET6, from the GD32 family. Other key parts include the GT-USB-7010ASV, AMS1117-3.3 and W25Q128JVS. By type, the board carries 18 capacitors, 14 resistors, 6 diodes, 4 ICs, 4 switches and 2 crystals.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

GD32F103R GD32F107R GD32F207R GD32F303R GD32F407R development board

This board can be used with the GD32F103Rx, GD32F303Rx and the GD32F107Rx , GD32F207Rx, GD32F407Rx (Ethernet) MCU's.

Please note that the crystal for the GD32F107Rx, GD32F207Rx and the GD32F407Rx is 25MHz and the crystal for the GD32F103Rx and the GD32F303Rx is 8MHz.

The 2x13 header is pin compatible with the Orange Pi Zero and Raspberry Pi boards.

Note: The BOM is for the GD32F407RE. ToDo: Add information for other supported MCU's.

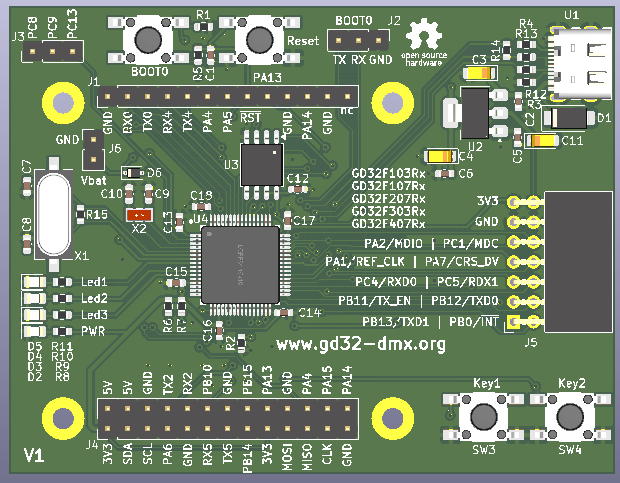

KiCad-GD32FxxxRx no-PHY, from the project README
From the project README

Main components on the KiCad-GD32FxxxRx no-PHY

GT-USB-7010ASVAMS1117-3.3W25Q128JVSGD32F407RET6

KiCad-GD32FxxxRx no-PHY bill of materials (BOM)

48 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
GT-USB-7010ASV
G-Switch(品赞)
U1
1
AMS1117-3.3
U2
1
W25Q128JVS
U3
1
GD32F407RET6
GigaDevice(兆易创新)
U4
1
X49SM25MSD2SC
25Mhz
YXC(扬兴晶振)
X1
1
Q13FC13500004
32.768kHz
EPSON(爱普生)
X2
1
PTS645SM43SMTR92LFS
BOOT0
C&K
SW1
1
PTS645SM43SMTR92LFS
RESET
C&K
SW2
1
PTS645SM43SMTR92LFS
KEY1
C&K
SW3
1
PTS645SM43SMTR92LFS
KEY2
C&K
SW4
1
SMAJ5.0A
D1
4
LED
D2, D3, D4, D5
1
1N5819
D6
11
100N
100n
C1, C2, C5, C6, C12, C13, C14, C15 +3
3
10UF
10uF
C3, C4, C11
2
20PF
20pF
C7, C8
2
12PF
12pF
C9, C10
3
10K
R1, R2, R5
2
5K1
R3, R4
2
4K7
R6, R7
Show 3 more
QtyPartRefs
4
1K5
R8, R9, R10, R11
2
22
R12, R13
1
1M
R15

KiCad-GD32FxxxRx no-PHY design files

The KiCad project lives in the vanvught/KiCad-GD32FxxxRx-no-PHY repository on GitHub; these links point at the commit this page was built from.

KiCad-GD32FxxxRx no-PHY: common questions

What microcontroller does the KiCad-GD32FxxxRx no-PHY use?

The KiCad-GD32FxxxRx no-PHY is built around the GD32F407RET6, from the GD32 family.

How big is the KiCad-GD32FxxxRx no-PHY PCB?

The KiCad-GD32FxxxRx no-PHY measures 77.2 × 59.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad-GD32FxxxRx no-PHY?

48 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KiCad-GD32FxxxRx no-PHY design files?

From the vanvught/KiCad-GD32FxxxRx-no-PHY repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KiCad-GD32FxxxRx no-PHY design in my own project?

Yes, under the terms of its MIT license, which vanvught chose for the repository.

Can I test firmware for the KiCad-GD32FxxxRx no-PHY without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug GD32 firmware against it before you order a PCB.
