Kicad-GD32F470VG-Pixel-16 PCB layout, top view — open source GD32 board by vanvught

About the Kicad-GD32F470VG-Pixel-16 PCB

Kicad-GD32F470VG-Pixel-16 is an open source GD32 PCB design by vanvught, published on GitHub under the MIT license. It is a 2-layer board measuring 96 × 110.1 mm, with 95 components from 25 distinct parts.

Its main chip is the GD32F470VGT6, from the GD32 family. Other key parts include the AMS1117-3.3, GT-USB-7010ASV, W25Q128JVS and 74HCT245. By type, the board carries 44 resistors, 29 capacitors, 8 ICs, 7 diodes, 4 switches and 2 crystals.

It belongs with the displays & leds designs in this gallery.

From the project

Kicad GD32F470VG Pixel 16-ports x 4 Universes

Firmware https://github.com/vanvught/GD32F470VG-Pixel-16-Ports

More information https://www.gd32-dmx.org/pixel.html

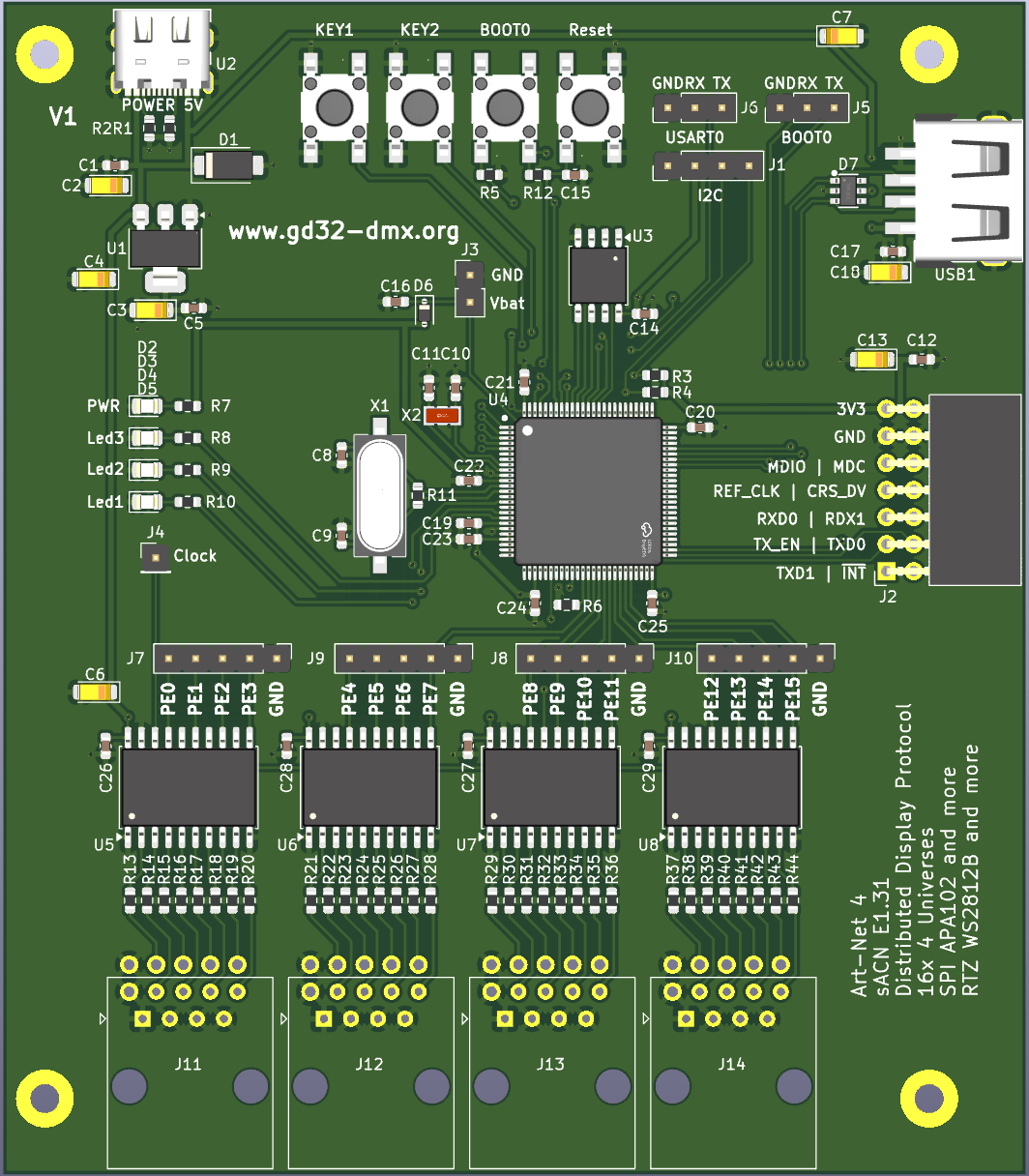

Kicad-GD32F470VG-Pixel-16, from the project README
From the project README

Main components on the Kicad-GD32F470VG-Pixel-16

AMS1117-3.3GT-USB-7010ASVW25Q128JVSGD32F470VGT674HCT245

Kicad-GD32F470VG-Pixel-16 bill of materials (BOM)

95 components, 25 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
GT-USB-7010ASV
G-Switch(品赞)
U2
1
W25Q128JVS
U3
1
GD32F470VGT6
GigaDevice(兆易创新)
U4
4
74HCT245
U5, U6, U7, U8
1
X49SM25MSD2SC
25Mhz
YXC(扬兴晶振)
X1
1
Q13FC13500004
32.768kHz
EPSON(爱普生)
X2
1
PTS645SM43SMTR92LFS
BOOT0
C&K
SW1
1
PTS645SM43SMTR92LFS
RESET
C&K
SW2
1
PTS645SM43SMTR92LFS
KEY1
C&K
SW3
1
PTS645SM43SMTR92LFS
KEY2
C&K
SW4
1
10.0 QHHTZB6.3
SHOU HAN(首韩)
USB1
1
SMAJ5.0A
D1
4
LED
D2, D3, D4, D5
1
1N5819
D6
1
SRV05-4
SRV05-4_C558418
TECH PUBLIC(台舟)
D7
18
100n
C1, C5, C12, C14, C15, C16, C17, C19 +10
7
10uF
C2, C3, C4, C6, C7, C13, C18
2
20pF
C8, C9
2
12pF
C10, C11
Show 5 more
QtyPartRefs
6
5K1
R1, R2, R7, R8, R9, R10
2
4K7
R3, R4
3
10K
R5, R6, R12
1
1M
R11
32
100Ω
R13, R14, R15, R16, R17, R18, R19, R20 +24

Kicad-GD32F470VG-Pixel-16 design files

The KiCad project lives in the vanvught/Kicad-GD32F470VG-Pixel-16 repository on GitHub; these links point at the commit this page was built from.

Kicad-GD32F470VG-Pixel-16: common questions

What microcontroller does the Kicad-GD32F470VG-Pixel-16 use?

The Kicad-GD32F470VG-Pixel-16 is built around the GD32F470VGT6, from the GD32 family.

How big is the Kicad-GD32F470VG-Pixel-16 PCB?

The Kicad-GD32F470VG-Pixel-16 measures 96 × 110.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad-GD32F470VG-Pixel-16?

95 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad-GD32F470VG-Pixel-16 design files?

From the vanvught/Kicad-GD32F470VG-Pixel-16 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kicad-GD32F470VG-Pixel-16 design in my own project?

Yes, under the terms of its MIT license, which vanvught chose for the repository.

Can I test firmware for the Kicad-GD32F470VG-Pixel-16 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug GD32 firmware against it before you order a PCB.
