OGK-SiPM-Board

vikulin·OGK-SiPM-Board

OGK-SiPM-Board layout, top view — open source board by vikulin

About the OGK-SiPM-Board

OGK-SiPM-Board is an open source PCB design by vikulin, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 36.5 × 36.5 mm, with 15 components from 8 distinct parts.

Other key parts include the TPS7B6950DBVR and MICROFC-60035-SMT-TR1. By type, the board carries 5 capacitors, 5 resistors, 2 ICs and 2 transistors.

It belongs with the sensors designs in this gallery.

From the project

🖸 OpenGammaKit PCB module designed for the 6 mm C-Series MicroFC-60035 SiPM in KiCad

This carrier board is designed for the 6 mm C-Series MICROFC-60035-SMT silicon photomultiplier (SiPM) by onsemi. It was developed specifically for the OpenGammaKit detector, but it can also be used in other systems. An optional circuitry for automatic SiPM temperature gain compensation is included.

On the front side, only the sensor is mounted, while all supporting components are placed on the back side. This layout provides optimal optical coupling and ensures light-tight sealing. The unused SiPM pin 4 is tied to the ground pad, adding thermal mass and connecting it to the ground plane…

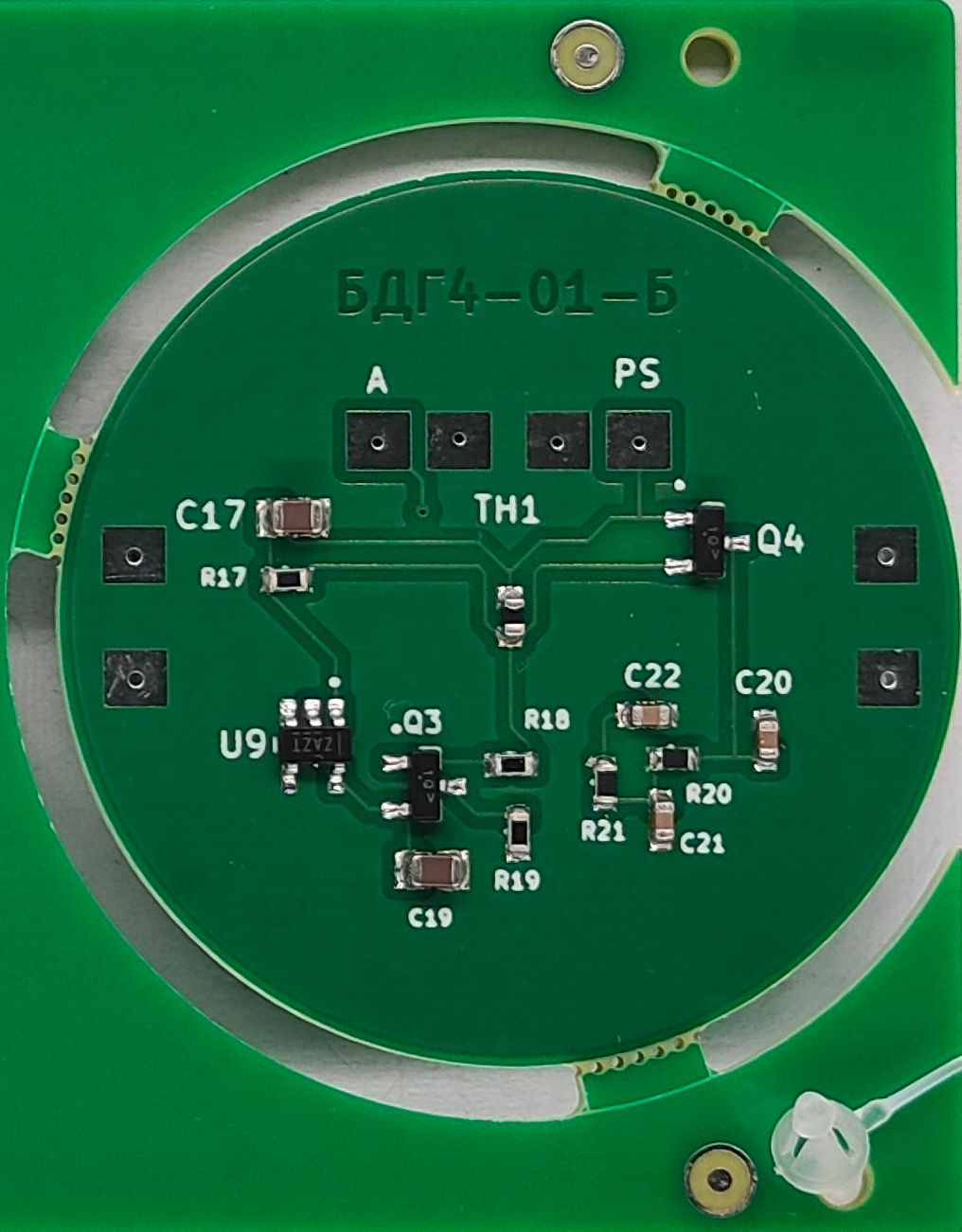

OGK-SiPM-Board, from the project README
From the project README

Main components on the OGK-SiPM-Board

TPS7B6950DBVRMICROFC-60035-SMT-TR1

OGK-SiPM-Board bill of materials (BOM)

15 components, 8 distinct parts.

QtyPartRefs
1
TPS7B6950DBVR
U1
1
MICROFC-60035-SMT-TR1
U2
2
MMBT5088LT1G
Q1, Q2
1
Thermistor_PTC
TH1
2
2.2u
C1, C2
3
100n
C3, C4, C5
3
49.9k
R1, R2, R3
2
49.9R
R4, R5

OGK-SiPM-Board design files

The KiCad project lives in the vikulin/OGK-SiPM-Board repository on GitHub; these links point at the commit this page was built from.

OGK-SiPM-Board: common questions

How big is the OGK-SiPM-Board?

The OGK-SiPM-Board measures 36.5 × 36.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the OGK-SiPM-Board?

15 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the OGK-SiPM-Board design files?

From the vikulin/OGK-SiPM-Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the OGK-SiPM-Board design in my own project?

Yes, under the terms of its GPL-3.0 license, which vikulin chose for the repository.
