Metrodisplay PCB layout, top view — open source ESP32 board by vuktacic

About the Metrodisplay PCB

Metrodisplay is an open source ESP32 PCB design by vuktacic, published on GitHub under the MIT license. It is a 2-layer board measuring 99.2 × 52.8 mm, with 53 components from 13 distinct parts.

Its main chip is the ESP32-DEVKITC, from the ESP32 family. Other key parts include the SN74AHCT245PWR. By type, the board carries 22 capacitors, 15 connectors, 12 resistors, 3 ICs and 1 diode.

It belongs with the displays & leds designs in this gallery.

From the project

I was originally making a small project with a single LED panel to display subway times for the Vancouver Skytrain (hence the name), but I realized that while that was great for a static bedroom display, something much more exciting and interactive like this would be much more fu

I was originally making a small project with a single LED panel to display subway times for the Vancouver Skytrain (hence the name), but I realized that while that was great for a static bedroom display, something much more exciting and interactive like this would be much more fun to showcase at Opensauce!

View the PCB on KiCanvas: [](https://kicanvas.org/?github=https://github.com/vuktacic/metrodisplay/tree/main/pcb)

Metrodisplay, from the project README

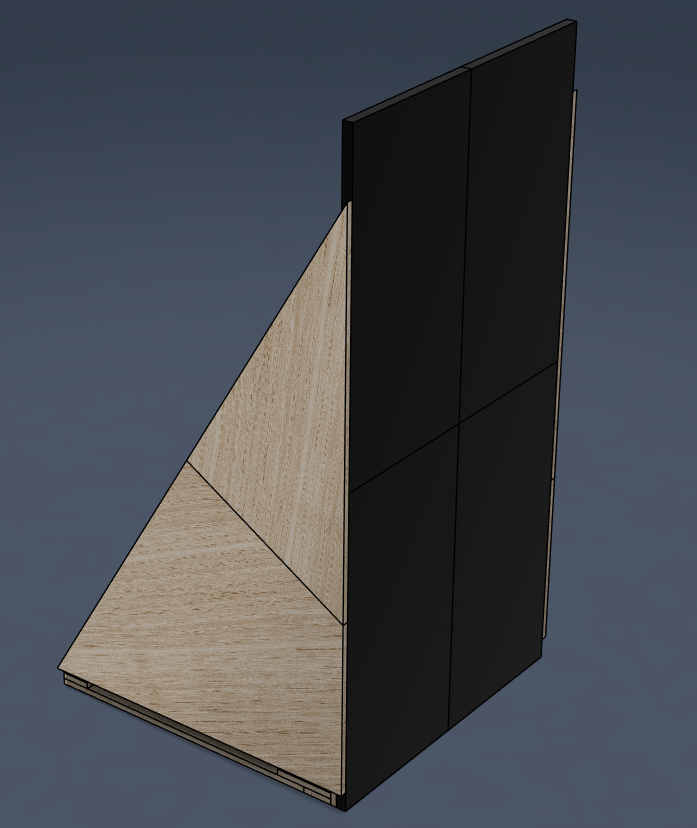

From the project README

Main components on the Metrodisplay

ESP32-DEVKITCSN74AHCT245PWR

Metrodisplay bill of materials (BOM)

53 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-DEVKITC
U1
2
SN74AHCT245PWR
TI(德州仪器)
U3, U4
1
USB_C_Receptacle_PowerOnly_6P
J1
1
Conn_02x08_Counter_Clockwise
J2
1
Screw_Terminal_01x02
J3
11
Screw_Terminal_01x01
J4, J6, J7, J8, J9, J10, J11, J12 +3
1
R_US
P1
1
IR26-21C_L110_TR8
D1
1
C_Polarized
C1
20
C
C2, C3, C4, C5, C6, C7, C8, C9 +12
1
RVT470UF35V67RV0056
C18
1
FRC1206J102 TS
R1
11
R_US
R3, R4, R5, R6, R7, R8, R9, R10 +3

Metrodisplay design files

The KiCad project lives in the vuktacic/metrodisplay repository on GitHub; these links point at the commit this page was built from.

Metrodisplay: common questions

What microcontroller does the Metrodisplay use?

The Metrodisplay is built around the ESP32-DEVKITC, from the ESP32 family.

How big is the Metrodisplay PCB?

The Metrodisplay measures 99.2 × 52.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Metrodisplay?

53 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Metrodisplay design files?

From the vuktacic/metrodisplay repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Metrodisplay design in my own project?

Yes, under the terms of its MIT license, which vuktacic chose for the repository.

Can I test firmware for the Metrodisplay without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
