About the PER|FORMER eurorack sequencer PCB
PER|FORMER eurorack sequencer is an open source STM32 PCB design by westlicht, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 171.5 × 106.7 mm, with 304 components from 46 distinct parts.
Its main chip is the STM32F405RGTX, from the STM32 family. Other key parts include the VO0600T, 74LV1T34, STMPS2151, OPA4172 and 74HCT125. By type, the board carries 86 resistors, 49 capacitors, 41 diodes, 39 switches, 32 LEDs and 26 connectors.
It belongs with the audio designs in this gallery.
From the project

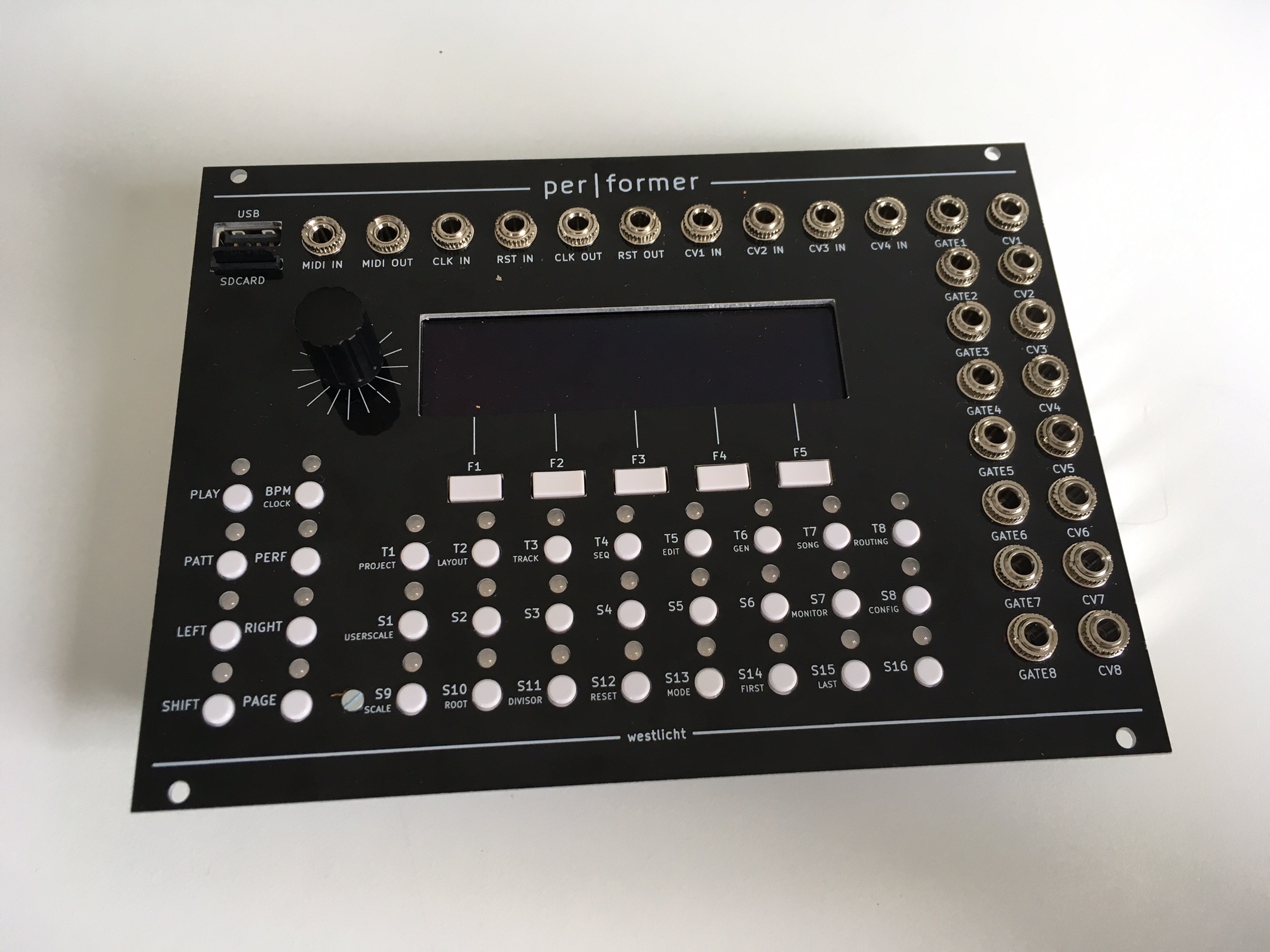

PER|FORMER Eurorack Sequencer - Hardware Design Files
This repository contains the hardware design files (KiCad) for the PER|FORMER eurorack sequencer.
For more information on the project go here.
The firmware is hosted in a separate repository here.
The width of the module is 34 HP in eurorack standard.
The BOM is available as a CSV and HTML. In addition to the parts on the PCB there are a few additional hardware components that are necessary to complete the build, see here.

Main components on the PER|FORMER eurorack sequencer
PER|FORMER eurorack sequencer bill of materials (BOM)
304 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | VO0600T | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | 74LV1T34 | SOT-23-5 | U2 |
| 1 | STMPS2151 | SOT-23-5 | U3 |
| 2 | OPA4172 | SOIC-14_3.9x8.7mm_P1.27mm | U4, U15 |
| 1 | 74HCT125 | SOIC-14_3.9x8.7mm_P1.27mm | U5 |
| 1 | MCP6004 | SOIC-14_3.9x8.7mm_P1.27mm | U6 |
| 2 | LM1117-3.3 | SOT-223-3_TabPin2 | U7, U10 |
| 1 | DAC8568C | TSSOP-16_4.4x5mm_P0.65mm | U8 |
| 1 | STM32F405RGTX STM32F405RGTx | LQFP-64_10x10mm_P0.5mm | U9 |
| 1 | 74HC165 | SOIC-16_3.9x9.9mm_P1.27mm | U11 |
| 3 | 74HC595 | SOIC-16_3.9x9.9mm_P1.27mm | U12, U13, U14 |
| 1 | R-78E5.0-1.0 | R-78E-1.0 | U16 |
| 5 | MMBT3904 | SOT-23 | Q1, Q2, Q3, Q4, Q5 |
| 1 | 8MHZ 8MHz | Crystal_SMD_Abracon_ABM3-2Pin_5.0x3.2mm_HandSoldering | Y1 |
| 2 | PJ301CM | PJ301CM_OFFSET | J1, J2 |
| 24 | PJ301BM | PJ301BM | J3, J4, J5, J6, J7, J8, J9, J10 +16 |
| 1 | PEC11R | ALPS_STEC12E08 | ENC1 |
| 1 | USB_A | MOLEX_USB_105057 | JP1 |
| 1 | PJS008U-3000 | PJS008U-3000-0 | JP2 |
| 1 | NHD-3.12-25664UC | NHD-3.12-25664UC | JP3 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | JTAG | PinHeader_2x05_P1.27mm_Vertical | JP4 |
| 1 | POWER | PinHeader_2x05_P2.54mm_Vertical | JP5 |
| 1 | Serial / Bootloader | PinHeader_1x06_P2.54mm_Vertical | JP6 |
| 37 | TL1105 | TL1105T | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW9 +29 |
| 2 | EVQQ2 | SW_SPST_EVQQ2 | SW8, SW19 |
| 32 | LTL1BEKVJNN | LTL1BEKVJNN | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +24 |
| 1 | LM4040CIM3-10.0 | SOT-23 | D1 |
| 38 | 1N4148 | D_SOD-123 | D2, D5, D6, D7, D8, D9, D10, D11 +30 |
| 2 | 1N5819HW | D_SOD-123 | D3, D4 |
| 2 | Bead | R_0603 | L1, L2 |
| 25 | 100N 100n | C_0603 | C1, C2, C3, C4, C6, C7, C8, C14 +17 |
| 3 | 22U 22u | CP_Elec_5x5.8 | C5, C24, C40 |
| 4 | 1n | C_0603 | C9, C10, C21, C22 |
| 10 | 18P 18p | C_0603 | C11, C12, C15, C16, C33, C34, C37, C38 +2 |
| 2 | 47U 47u | CP_Elec_6.3x5.7 | C13, C46 |
| 4 | 2.2U 2.2u | C_0805 | C18, C23, C26, C29 |
| 1 | 1u | C_0603 | C39 |
| 11 | 220 | R_0603 | R1, R3, R4, R23, R24, R42, R43, R52 +3 |
| 16 | 10K 10k | R_0603 | R2, R5, R6, R7, R19, R20, R36, R49 +8 |
| 19 | 1k | R_0603 | R8, R18, R21, R68, R70, R71, R72, R73 +11 |
| 3 | 1M | R_0603 | R9, R15, R16 |
| 9 | 33K 33k | R_0603 | R10, R11, R12, R13, R31, R32, R38, R39 +1 |
| 15 | 100K 100k | R_0603 | R14, R17, R26, R27, R28, R29, R34, R35 +7 |
| 8 | 24K 24k | R_0603 | R22, R25, R41, R44, R51, R54, R62, R65 |
| 4 | 200K 200k | R_0603 | R30, R33, R37, R40 |
| 1 | 22K 22k | R_0603 | R47 |
PER|FORMER eurorack sequencer design files
The KiCad project lives in the westlicht/performer-hardware repository on GitHub; these links point at the commit this page was built from.
- Layoutsequencer.kicad_pcb
- BOMbom/bom.csv
PER|FORMER eurorack sequencer: common questions
What microcontroller does the PER|FORMER eurorack sequencer use?
The PER|FORMER eurorack sequencer is built around the STM32F405RGTX, from the STM32 family.
How big is the PER|FORMER eurorack sequencer PCB?
The PER|FORMER eurorack sequencer measures 171.5 × 106.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PER|FORMER eurorack sequencer?
304 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PER|FORMER eurorack sequencer design files?
From the westlicht/performer-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the PER|FORMER eurorack sequencer design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Can I test firmware for the PER|FORMER eurorack sequencer without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
