USBHub
About the USBHub PCB
USBHub is an open source PCB design by wickerwaka, published on GitHub under the LGPL-3.0 license. It is a 2-layer board measuring 56.5 × 57.5 mm, with 31 components from 12 distinct parts.
Other key parts include the FE1.1 and AP2411. By type, the board carries 18 capacitors, 6 resistors, 4 connectors, 2 ICs and 1 crystal.
It belongs with the audio designs in this gallery.
From the project

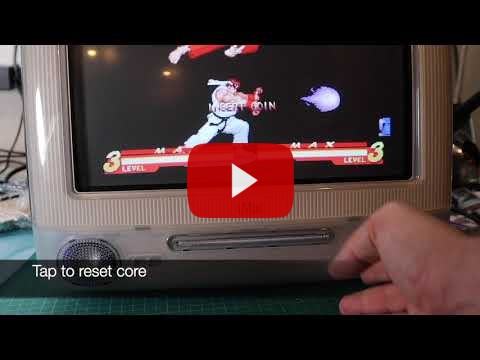

A MiSTer FPGA inside of an iMac G3
The iMacSTer is an early 2000's Apple iMac G3 with a MiSTer FPGA multisystem emulator inside of it. It is intended to be a non-destructive modification so the iMac can be returned to it's original state if desired. The mainboard, drives and IO panel are removed and replace by custom hardware, but no cuts are made to the chassis and the new hardware connects to existing internal connections without the need for any soldering. That being said, I can make no guarantees about the long term implications of these modifications. The speakers are being driven by a different amplifier than they were…
Main components on the USBHub
USBHub bill of materials (BOM)
31 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FE1.1 | FE1_1_QFP48 | U1 |
| 1 | AP2411 | AP24x1_SO8_HandSolder | U2 |
| 1 | 12Mhz | Crystal_SMD_0603-2Pin_6.0x3.5mm_HandSoldering | Y1 |
| 2 | USB_A_STACKED | USB_A_Wuerth_61400826021_Horizontal_Stacked | J1, J2 |
| 1 | USB_B | USB_B_OST_USB-B1HSxx_Horizontal | J3 |
| 1 | Screw_Terminal_01x02 | JST_XH_S2B-XH-A_1x02_P2.50mm_Horizontal | J6 |
| 7 | 10u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3, C4, C5, C6, C9 |
| 11 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C7, C8, C10, C11, C12, C13, C14, C15 +3 |
| 1 | 2.7K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 3 | 100k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R5 |
| 1 | 47k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4 |
| 1 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6 |
USBHub design files
The KiCad project lives in the wickerwaka/iMacSTer repository on GitHub; these links point at the commit this page was built from.
USBHub: common questions
How big is the USBHub PCB?
The USBHub measures 56.5 × 57.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the USBHub?
31 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the USBHub design files?
From the wickerwaka/iMacSTer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the USBHub design in my own project?
Yes, under the terms of its LGPL-3.0 license, which wickerwaka chose for the repository.
