Cf mp3-player

will127534·cf-mp3-player·hardware/cf_mp3_player.kicad_pcb

About the Cf mp3-player PCB

Cf mp3-player is an open source RP2040/RP2350 PCB design by will127534, published on GitHub under the MIT license. It is a 4-layer board measuring 62.8 × 61.7 mm, with 111 components from 51 distinct parts.

Its main chip is the RP2354B, from the RP2040/RP2350 family. Other key parts include the ECS-2520MV-240-DN-TR, TPSM82821SILR, APS6404L-3SQR-SN, TLV3201AIDBVR and LP5912-3.3DRVR. By type, the board carries 44 capacitors, 42 resistors, 8 ICs, 6 connectors, 6 switches and 3 diodes.

It belongs with the power & battery designs in this gallery.

From the project

A simple MP3/WAV/FLAC player using CF card

KiCad 8 design files for the rev3 CF MP3 Player board, the board the firmware in this repository targets (BOARDREV3=1`, the default build). The silkscreen reads "CF Card MP3 Player V2.1"; the firmware and docs call this board rev3.

The schematic is also available as a PDF.

The Gerbers match the fabricated rev3 boards. Compared with the set sent to fab on 2026-06-19, the only differences are the board's position on the sheet and one F.Cu copper-pour outline that moved by up to 0.12 mm when the zones were refilled. Tracks, pads, vias, mask, paste, silkscreen, outline and drill hits are…

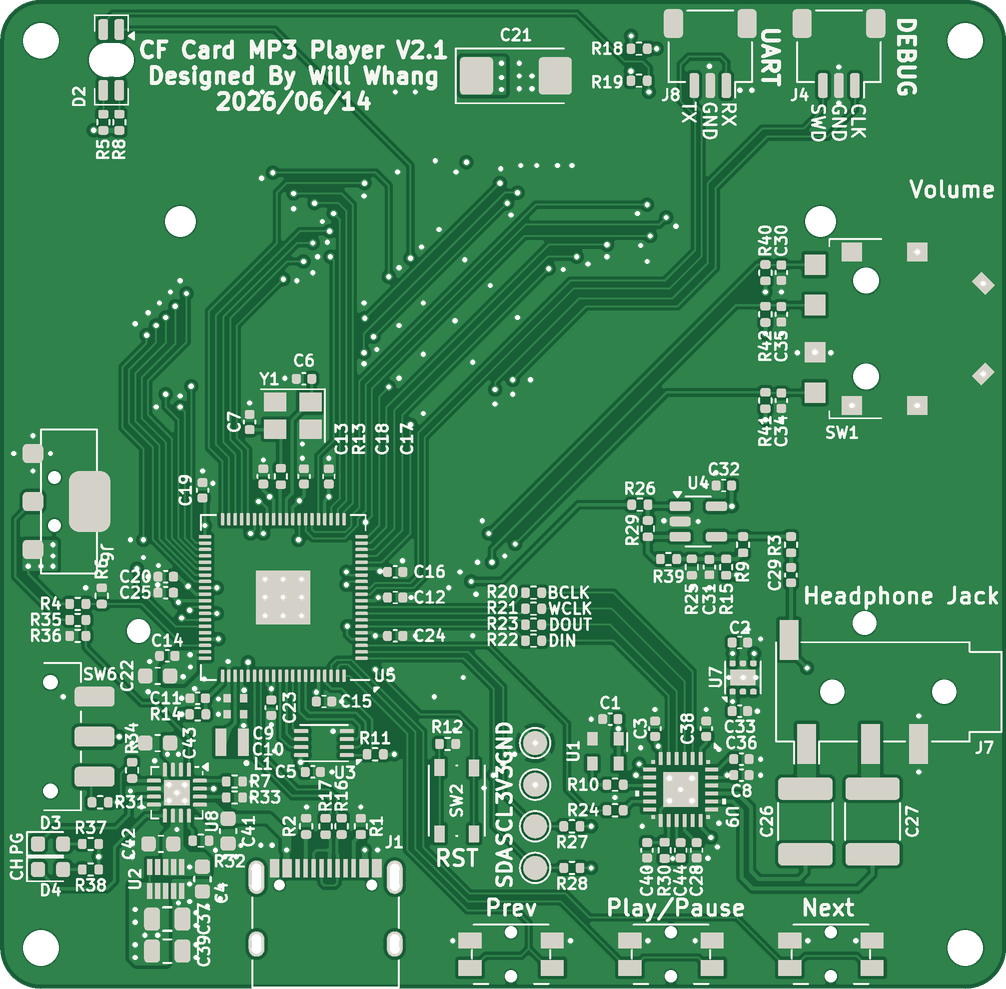

Cf mp3-player, from the project README — From the project README
