A2000-ATX-PSU-Adapter PCB layout, top view — open source board by wiretap-retro
Simulate this board

About the A2000-ATX-PSU-Adapter PCB

A2000-ATX-PSU-Adapter is an open source PCB design by wiretap-retro, published on GitHub. It is a 4-layer board measuring 69.1 × 37.5 mm, with 9 components from 9 distinct parts.

Other key parts include the L7905. By type, the board carries 4 connectors, 2 capacitors, 1 IC, 1 diode and 1 resistor.

It belongs with the power & battery and retro computing designs in this gallery.

From the project

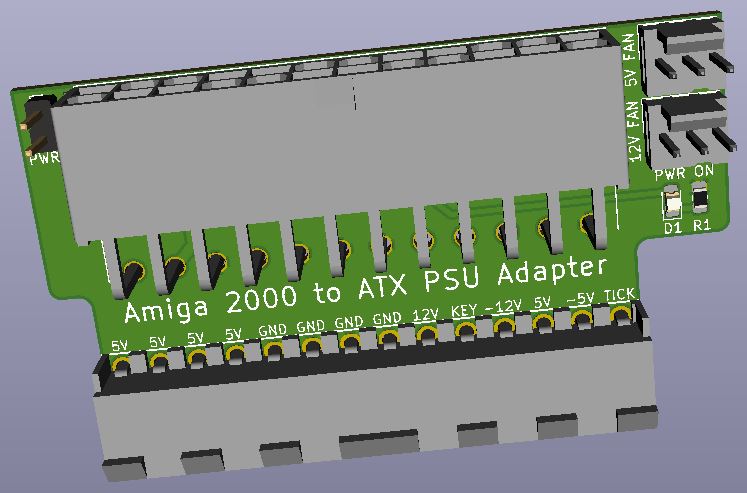

A power supply adapter for the Amiga 2000 to use an ATX power supply -- also provides -5VDC and fan headers.

A2000-ATX-PSU-Adapter, from the project README
From the project README

Main components on the A2000-ATX-PSU-Adapter

L7905

A2000-ATX-PSU-Adapter bill of materials (BOM)

9 components, 9 distinct parts.

QtyPartRefs
1
L7905
U1
1
A2000
J1
1
ATX
J2
1
5V Fan
J3
1
12V Fan
J4
1
LED_Small_ALT
D1
1
2.2uF
C1
1
1uF
C2
1
1k
R1

A2000-ATX-PSU-Adapter design files

The KiCad project lives in the wiretap-retro/A2000-ATX-PSU-Adapter repository on GitHub; these links point at the commit this page was built from.

A2000-ATX-PSU-Adapter: common questions

How big is the A2000-ATX-PSU-Adapter PCB?

The A2000-ATX-PSU-Adapter measures 69.1 × 37.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the A2000-ATX-PSU-Adapter?

9 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the A2000-ATX-PSU-Adapter design files?

From the wiretap-retro/A2000-ATX-PSU-Adapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the A2000-ATX-PSU-Adapter design in my own project?

The repository has no license, so all rights stay with wiretap-retro. Use it as a reference, and ask the author before reusing the design.
