PC-8001 SD PCB layout, top view — open source AVR/Arduino board by yanataka60

About the PC-8001 SD PCB

PC-8001 SD is an open source AVR/Arduino PCB design by yanataka60, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 19 components from 14 distinct parts.

Its main chip is the Arduino_Pro_Mini_5V, from the AVR/Arduino family. Other key parts include the 74LS04, 74LS30, 8255 and 2764. By type, the board carries 6 ICs, 6 capacitors, 5 connectors and 2 switches.

From the project

PC-8001でSD-CARDからCMT形式ファイルのロード、セーブ機能を実現するものです。

PC-8001でSD-CARDからCMT形式ファイルのロード、セーブ機能を実現するものです。

接続は、PC-8001本体後ろの拡張端子に接続しますが、50pフラットケーブルでの接続、50pカードエッジコネクタでの接続のどちらかを選択できます。

注2)秋月電子通商 AE-microSD-LLCNVのJ1ジャンパはショートしてください。

注5)ピンヘッダで代用するときは、基板から若干浮かせてピンヘッダをハンダ付けするとフラットケーブをスムーズに抜き差しできます。

MicroSD Card Adapterについているピンヘッダを除去してハンダ付けするのが一番確実ですが、J4の穴にMicroSD Card Adapterをぴったりと押しつけ、裏から多めにハンダを流し込むことでハンダ付けをする方法もあります。なお、この方法の時にはしっかりハンダ付けが出来たかテスターで導通を確認しておいた方が安心です。

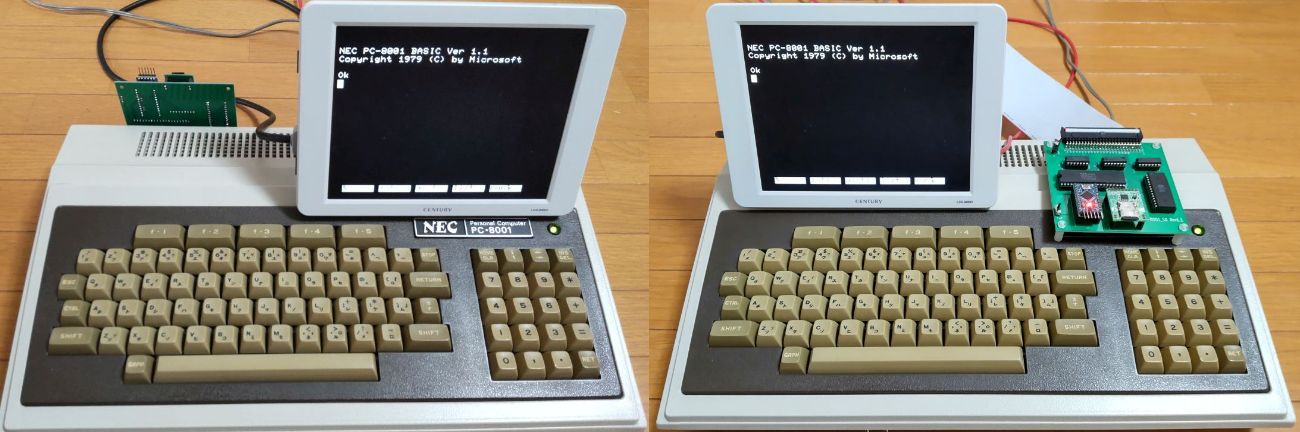

PC-8001 SD, from the project README
From the project README

Main components on the PC-8001 SD

74LS0474LS3082552764Arduino_Pro_Mini_5V

PC-8001 SD bill of materials (BOM)

19 components, 14 distinct parts.

QtyPartRefs
1
74LS04
U1
2
74LS30
U2, U3
1
8255
U4
1
2764
U5
1
Arduino_Pro_Mini_5V
U6
1
PC-8001 BUS
J1
1
Micro_SD_Card_Kit
J2
1
Conn_01x25
J3
1
MicroSD Card Adapter
J4
1
PC-8001 BUS
J5
1
SLIDE_SWITCH_3P
S1
1
SLIDE SWITCH
S2
5
0.1uF
C1, C2, C3, C4, C5
1
100uF
C6

PC-8001 SD design files

The KiCad project lives in the yanataka60/PC-8001_SD repository on GitHub; these links point at the commit this page was built from.

PC-8001 SD: common questions

What microcontroller does the PC-8001 SD use?

The PC-8001 SD is built around the Arduino_Pro_Mini_5V, from the AVR/Arduino family.

How big is the PC-8001 SD PCB?

The PC-8001 SD measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PC-8001 SD?

19 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the PC-8001 SD design files?

From the yanataka60/PC-8001_SD repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PC-8001 SD design in my own project?

Yes, under the terms of its MIT license, which yanataka60 chose for the repository.

Can I test firmware for the PC-8001 SD without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
