Keyface PCB layout, top view — open source PIC board by z00m128

About the Keyface PCB

Keyface is an open source PIC PCB design by z00m128, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 66.7 × 60.3 mm, with 37 components from 16 distinct parts.

Its main chip is the PIC16F84, from the PIC family. Other key parts include the MHB8804, 74LS125 and 74LS32. By type, the board carries 15 resistors, 7 capacitors, 5 ICs, 4 diodes, 2 transformers and 1 transistor.

From the project

A set of printed circuit boards created by me.

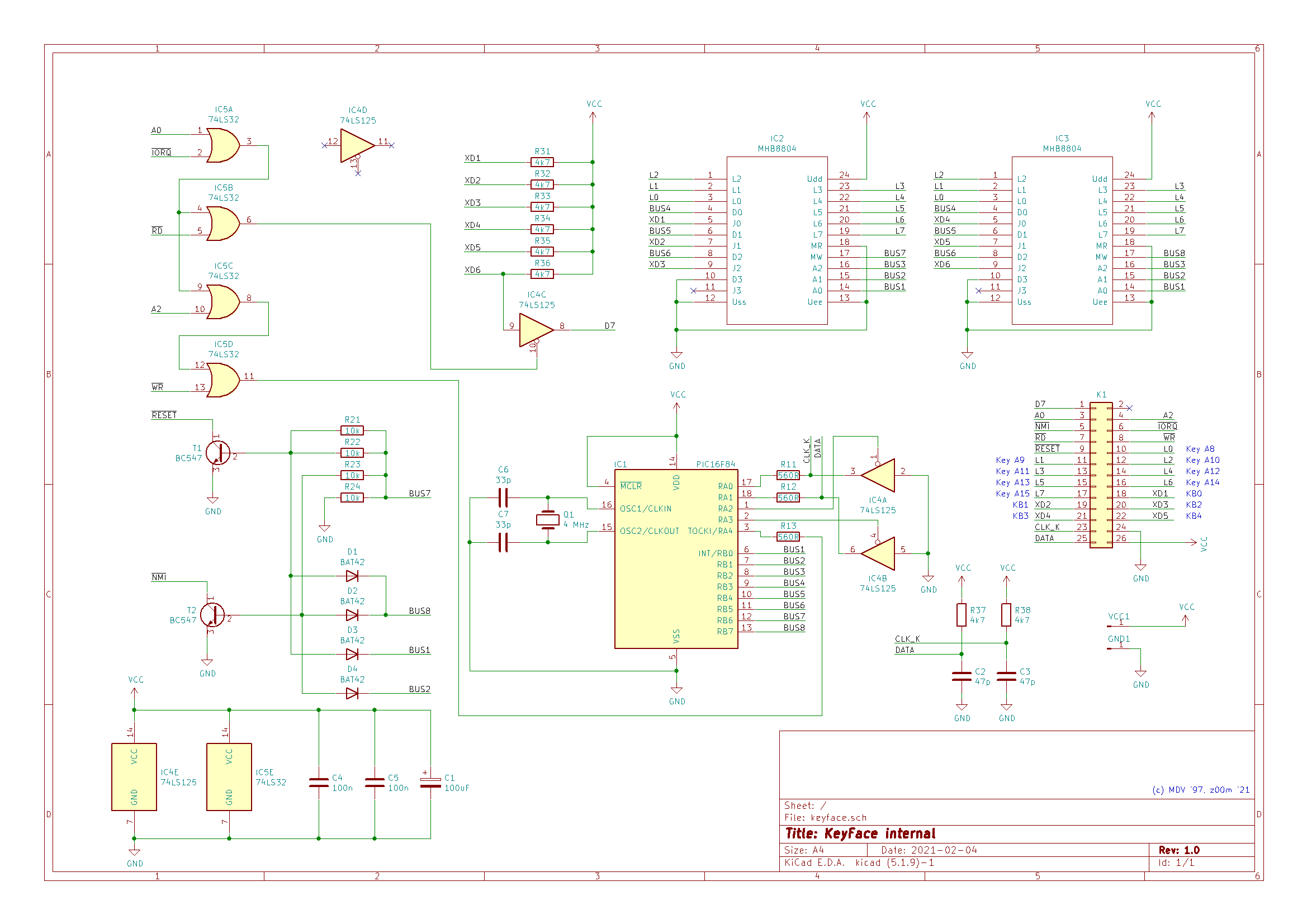

Keyface, from the project README
From the project README

Main components on the Keyface

PIC16F84MHB880474LS12574LS32

Keyface bill of materials (BOM)

37 components, 16 distinct parts.

QtyPartRefs
1
PIC16F84
IC1
2
MHB8804
IC2, IC3
1
74LS125
IC4
1
74LS32
IC5
1
4 MHz
Q1
2
Conn_01x01_Male
GND1, VCC1
1
Conn_02x13_Odd_Even
K1
2
BC547
T1, T2
4
BAT42
D1, D2, D3, D4
1
100uF
C1
2
47p
C2, C3
2
100n
C4, C5
2
33p
C6, C7
3
560R
R11, R12, R13
4
10k
R21, R22, R23, R24
8
4k7
R31, R32, R33, R34, R35, R36, R37, R38

Keyface design files

The KiCad project lives in the z00m128/pcb-resources repository on GitHub; these links point at the commit this page was built from.

Keyface: common questions

What microcontroller does the Keyface use?

The Keyface is built around the PIC16F84, from the PIC family.

How big is the Keyface PCB?

The Keyface measures 66.7 × 60.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyface?

37 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Keyface design files?

From the z00m128/pcb-resources repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Keyface design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Keyface without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
