Vr15 PCB layout, top view — open source ESP32 board by zhyma
Simulate this board

About the Vr15 PCB

Vr15 is an open source ESP32 PCB design by zhyma, published on GitHub. It is a 2-layer board measuring 30 × 35 mm, with 41 components from 30 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the MP1584. By type, the board carries 15 resistors, 9 connectors, 6 capacitors, 4 diodes, 2 ICs and 2 transistors.

It belongs with the sensors designs in this gallery.

From the project

VR15: a VR FPS game controller that generates haptic feedback with high-pressure air.

本项目基于Creative Commons Attribution 4.0协议开源。

This is a VR game controller, a variation of airsoft, not a firearm. It DOES NOT have the ability to shoot any projectile (not even BBs). Although it shares a similar appearance to an AR, it is derived from airsoft, and is NOT compatible with a firearm. The internal is re-designed to accommodate electronic and pneumatic components to generate reoil feedback only. Since it is driven by high-pressure air, please ensure components and their assembly are secured. Replicating and using this design is at your own risk. Please follow your local laws.

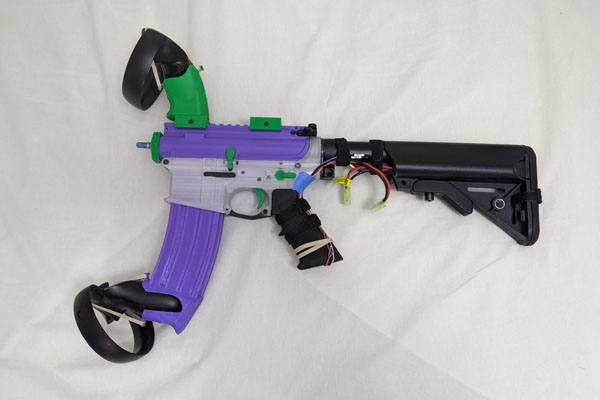

Vr15, from the project README
From the project README

Main components on the Vr15

MP1584ESP32-WROOM-32

Vr15 bill of materials (BOM)

41 components, 30 distinct parts.

QtyPartRefs
1
MP1584
U1
1
ESP32-WROOM-32
U2
2
SI2302
Q101, Q102
1
valve
J1
1
valve
J101
1
bolt_catch
J102
1
switch_fire
J103
1
switch_selector
J104
1
switch_mag
J105
1
sw_bolt
J106
1
UART
J107
1
VL6180X
J108
1
R_POT=24.9k
RV1
1
SW_SPDT
SW101
1
SS14
D1
1
LED
D2
2
1N4007
D101, D102
1
10uH
L1
1
10uF
C1
1
22uF
C2
Show 10 more
QtyPartRefs
1
10uF
C3
1
100nF
C4
2
0.1uF
C5, C7
1
8.2k
R2
3
100k
R3, R4, R5
1
51k
R6
1
330
R101
1
1k
R102
6
10k
R103, R105, R106, R107, R109, R110
2
100R
R104, R108

Vr15 design files

The KiCad project lives in the zhyma/vr15 repository on GitHub; these links point at the commit this page was built from.

Vr15: common questions

What microcontroller does the Vr15 use?

The Vr15 is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Vr15 PCB?

The Vr15 measures 30 × 35 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vr15?

41 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Vr15 design files?

From the zhyma/vr15 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Vr15 design in my own project?

The repository has no license, so all rights stay with zhyma. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Vr15 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
