NoahFC PCB layout, top view — open source AVR/Arduino board by zosko
Simulate this board

About the NoahFC PCB

NoahFC is an open source AVR/Arduino PCB design by zosko, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 32 × 42 mm, with 41 components from 32 distinct parts.

Its main chip is the ATMEGA328, from the AVR/Arduino family. Other key parts include the XC6206, LM317 and AT7456. By type, the board carries 14 capacitors, 10 connectors, 9 resistors, 4 ICs, 2 crystals and 1 jumper.

It belongs with the robotics & motion designs in this gallery.

From the project

NoahFC - Atmega328 based Flight Controller

Modular, open-source flight controller with integrated BEC and ESC designs. Build, customize, and fly freely.

Installation: avrdude -p m328 -c arduino -P /dev/ttyUSB0 -b 115200 -F -U flash:w:firmware.hex

This project is proudly sponsored by PCBWay.

PCBWay specializes in manufacturing high-quality printed circuit boards (PCBs), making them accessible and affordable for both hobbyists and professionals.

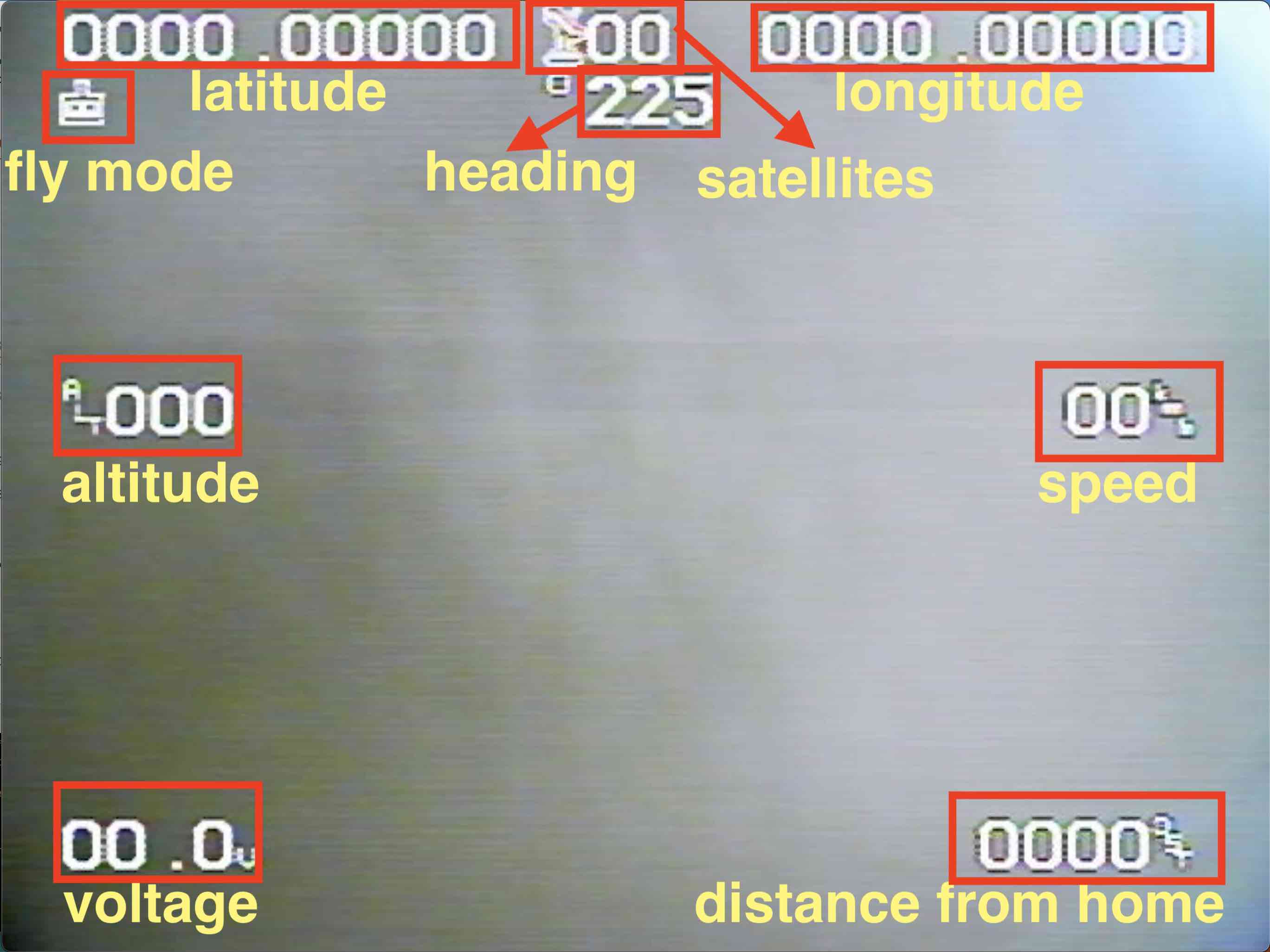

NoahFC, from the project README
From the project README

Main components on the NoahFC

ATMEGA328XC6206LM317AT7456

NoahFC bill of materials (BOM)

41 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328
ATmega328
U1
1
XC6206
U3
1
LM317
U4
1
AT7456
U6
1
16MHZ
16Mhz
Y1
1
27MHZ
27Mhz
Y3
1
C42431836
ALE
J1
1
C42431836
ELE
J2
1
C160391
FTDI
J4
1
C42431836
THR
J6
1
C42431836
PPM
J7
1
C160390
GPS
J8
1
C42431836
CAM
J11
1
C42431836
VTX
J12
1
C7501607
ESC_PWM
J15
1
C42431798
BEC
J17
1
Jumper_2_Open
JP2
1
ICM-42670-P
MT1
5
100NF
100nF
C1, C2, C4, C5, C17
1
1NF
1nF
C3
Show 12 more
QtyPartRefs
3
1UF
1uF
C10, C11, C12
1
100NF
100nF
C13
1
10NF
10nF
C14
1
2.2UF
2.2uF
C15
2
47UF
47uF
C18, C19
1
10K
R1
1
240
R2
2
10K
R3, R6
1
47K
R4
1
33K
R5
2
75
R9, R10
1
750
R11

NoahFC design files

The KiCad project lives in the zosko/NoahFC repository on GitHub; these links point at the commit this page was built from.

NoahFC: common questions

What microcontroller does the NoahFC use?

The NoahFC is built around the ATMEGA328, from the AVR/Arduino family.

How big is the NoahFC PCB?

The NoahFC measures 32 × 42 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NoahFC?

41 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the NoahFC design files?

From the zosko/NoahFC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the NoahFC design in my own project?

Yes, under the terms of its GPL-3.0 license, which zosko chose for the repository.

Can I test firmware for the NoahFC without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
