About the Iot leddriver hw PCB

Iot leddriver hw is an open source ESP32 PCB design by 0xjmux, published on GitHub. It is a 4-layer board measuring 57 × 56 mm, with 58 components from 31 distinct parts.

Its main chip is the ESP32-S2-SOLO, from the ESP32 family. Other key parts include the AMS1117-3.3, TAR5S50 and SN74AHCT125PWR. By type, the board carries 18 capacitors, 14 resistors, 8 diodes, 5 switches, 4 ICs and 4 connectors.

It belongs with the displays & leds and iot & wireless designs in this gallery.

From the project

ESP32-based WS2812B LED Strip Driver PCB, designed for music visualization

Origianlly planned to design my own firmware to integrate with the Spotify API Directly; but eventually switched to the much more featured combination of WLED + LEDFx. Compatible with the popular WLED firmware: just change the LED data pin to GPIO21. * (See DEVELOPMENT-NOTES.md for full pinout and other information).

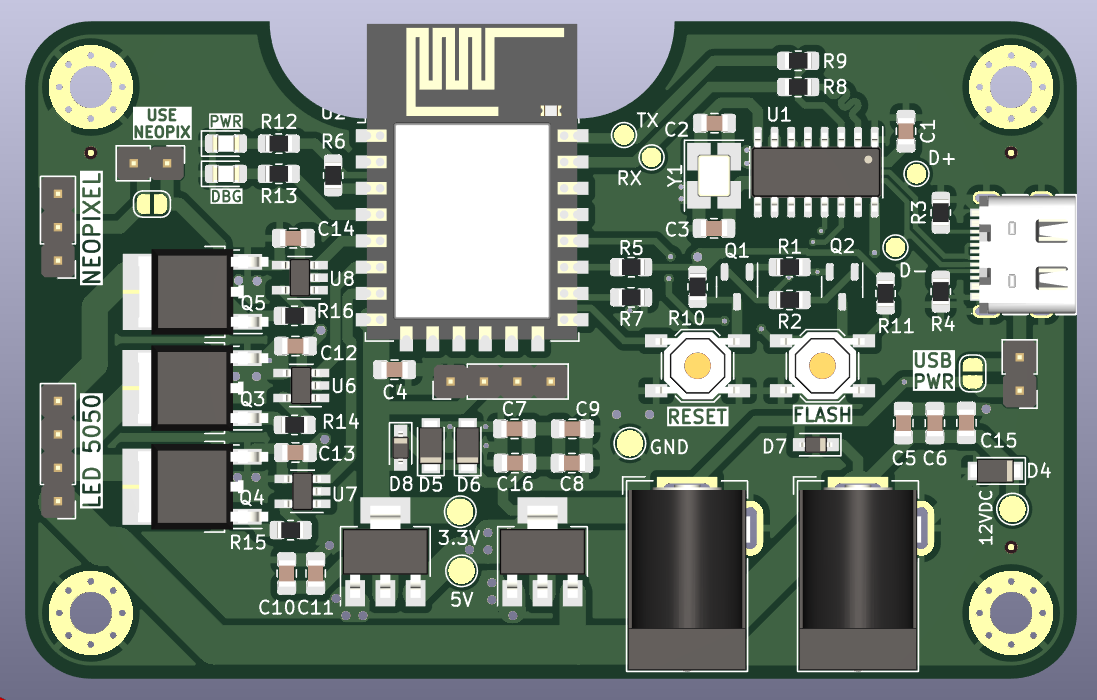

Iot leddriver hw, from the project README
From the project README

Main components on the Iot leddriver hw

AMS1117-3.3TAR5S50ESP32-S2-SOLOSN74AHCT125PWR

Iot leddriver hw bill of materials (BOM)

58 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
TAR5S50
U2
1
ESP32-S2-SOLO
U3
1
SN74AHCT125PWR
U4
1
AO3400A
Q1
2
Screw_Terminal_01x03
J1, J2
1
GT-USB-7010ASV
J3
1
Barrel_Jack_Switch_Pin3Ring
J4
1
Fuse Holder
F2
1
USB-VDD
JP1
1
SANYOU_SRD_Form_C
K2
1
SPH0641LU4H-1
MK1
1
RESET
SW1
1
FLASH
SW2
2
SW_SPDT
SW3, SW4
1
12V_5V_SWT
SW5
2
SMF5V0A
D1, D2
1
1N5819WS
D3
1
STAT
D4
1
PWR
D5
Show 11 more
QtyPartRefs
1
1N4148W
D6
2
PTVSHC3D12VU
D7, D8
9
10uF
C1, C2, C3, C5, C8, C13, C15, C16 +1
9
100nF
C4, C6, C7, C9, C10, C11, C12, C14 +1
3
10k
R1, R4, R5
2
27R
R3, R10
1
100
R6
2
33R
R7, R17
2
5.1k
R8, R9
2
1k
R12, R14
2
220R
R16, R18

Iot leddriver hw design files

The KiCad project lives in the 0xjmux/iot_leddriver_hw repository on GitHub; these links point at the commit this page was built from.

Iot leddriver hw: common questions

What microcontroller does the Iot leddriver hw use?

The Iot leddriver hw is built around the ESP32-S2-SOLO, from the ESP32 family.

How big is the Iot leddriver hw PCB?

The Iot leddriver hw measures 57 × 56 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Iot leddriver hw?

58 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Iot leddriver hw design files?

From the 0xjmux/iot_leddriver_hw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Iot leddriver hw design in my own project?

The repository has no license, so all rights stay with 0xjmux. Use it as a reference, and ask the author before reusing the design.
