Esp32c3 controller

1999AZZAR·pcb-skill·project/pcb/esp32c3_controller/esp32c3_controller.kicad_pcb

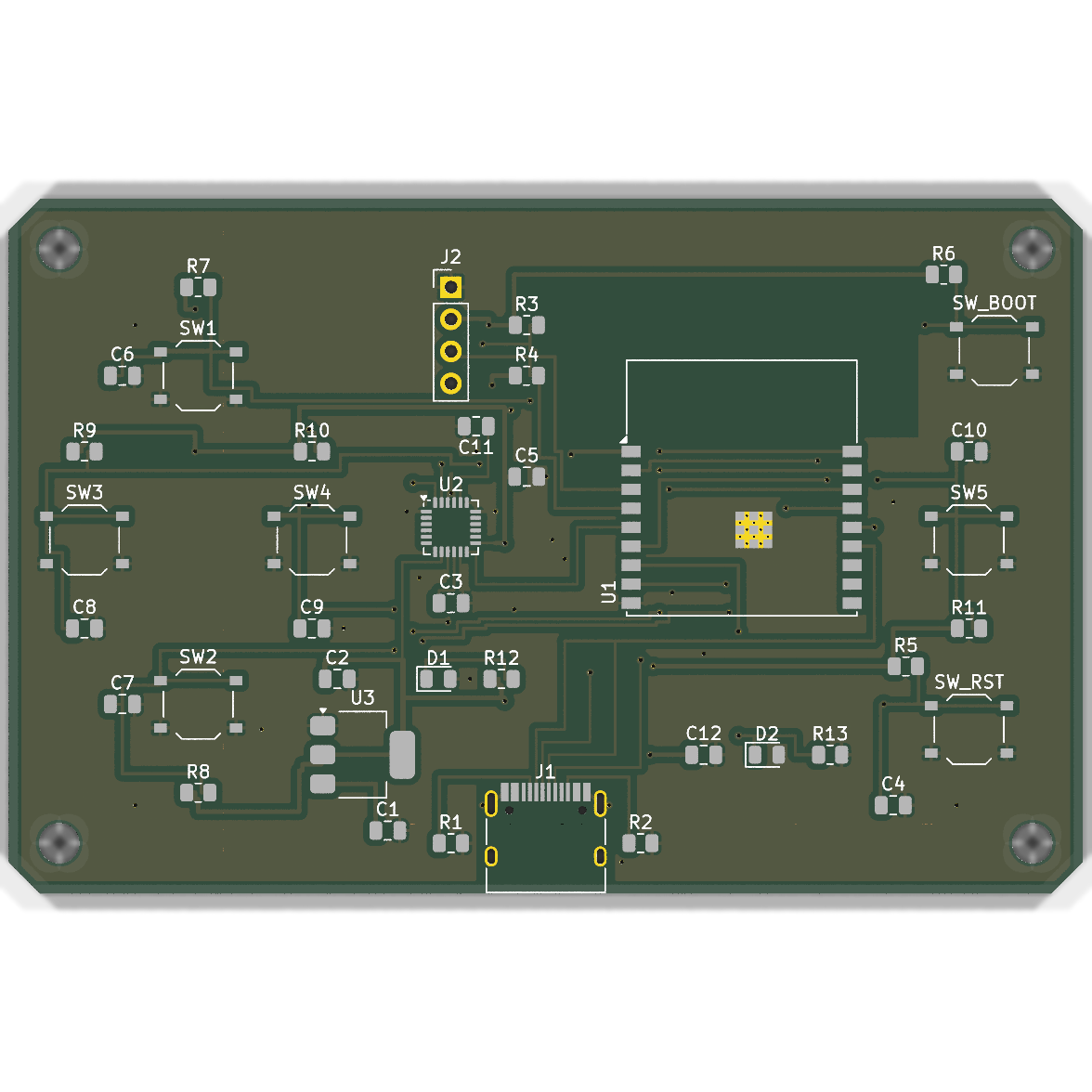

Esp32c3 controller PCB layout, top view — open source ESP32 board by 1999AZZAR

About the Esp32c3 controller PCB

Esp32c3 controller is an open source ESP32 PCB design by 1999AZZAR, published on GitHub under the MIT license. It is a 2-layer board measuring 85 × 55 mm, with 37 components from 19 distinct parts.

Its main chip is the ESP32-C3-WROOM-02, from the ESP32 family. Other key parts include the MPU-6050 and AMS1117-3.3. By type, the board carries 13 resistors, 12 capacitors, 5 switches, 3 ICs, 2 connectors and 2 diodes.

It belongs with the iot & wireless, sensors and displays & leds designs in this gallery.

From the project

Autonomous, end-to-end KiCad PCB design skill for AI coding agents (Antigravity, Claude Code, Codex). Headless automation via kicad-cli & pcbnew, DRC verification, and JLCPCB manufacturing exports.

Compact 2-layer handheld motion controller and gamepad designed in KiCad 9 for JLCPCB manufacturing and SMT assembly.

MCU: Espressif ESP32-C3-WROOM-02-N4 (32-bit RISC-V @ 160 MHz, 4MB Flash, 2.4 GHz Wi-Fi 4 & Bluetooth 5 LE). Display: 0.96" 128×64 I2C OLED (SSD1306) on 1×04 2.54mm pin header. IMU: InvenSense MPU-6050 6-axis Gyroscope + Accelerometer (QFN-24) with hardware motion processing and interrupt output. Navigation Inputs: 5 tactile pushbuttons (UP, DOWN, LEFT, RIGHT, SELECT) with 10kΩ external pull-ups and 100nF debounce capacitors. System Inputs: Dedicated hardware RESET and BOOT…

Esp32c3 controller, from the project README
From the project README

Main components on the Esp32c3 controller

ESP32-C3-WROOM-02MPU-6050AMS1117-3.3

Esp32c3 controller bill of materials (BOM)

37 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-C3-WROOM-02
U1
1
MPU-6050
U2
1
AMS1117-3.3
U3
1
USB-C
J1
1
OLED_I2C
J2
1
UP
SW1
1
DOWN
SW2
1
LEFT
SW3
1
RIGHT
SW4
1
SELECT
SW5
1
Green (PWR)
D1
1
Blue (STATUS)
D2
3
10uF
C1, C2, C12
8
100nF
C3, C4, C5, C6, C7, C8, C9, C10
1
2.2nF
C11
2
5.1k
R1, R2
2
4.7k
R3, R4
7
10k
R5, R6, R7, R8, R9, R10, R11
2
1k
R12, R13

Esp32c3 controller design files

The KiCad project lives in the 1999AZZAR/pcb-skill repository on GitHub; these links point at the commit this page was built from.

Esp32c3 controller: common questions

What microcontroller does the Esp32c3 controller use?

The Esp32c3 controller is built around the ESP32-C3-WROOM-02, from the ESP32 family.

How big is the Esp32c3 controller PCB?

The Esp32c3 controller measures 85 × 55 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32c3 controller?

37 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32c3 controller design files?

From the 1999AZZAR/pcb-skill repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32c3 controller design in my own project?

Yes, under the terms of its MIT license, which 1999AZZAR chose for the repository.

Can I test firmware for the Esp32c3 controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
