About the ESP32-C3-DevBoard PCB

ESP32-C3-DevBoard is an open source ESP32 PCB design by 21km43, published on GitHub. It is a 2-layer board measuring 25.4 × 26 mm, with 15 components from 11 distinct parts.

Its main chip is the ESP32-C3-WROOM-02, from the ESP32 family. Other key parts include the RT9080-33GJ5. By type, the board carries 5 resistors, 4 capacitors, 2 ICs, 2 switches, 1 connector and 1 diode.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

ESP32-C3 Development Board

You can get ESP32-C3-WROOM-02 from here. 秋月電子 DigiKey * Mouser

Orders can be placed by uploading data(Gerber, BOM, and CPL) to the JLCPCB. This project uses Espressif Library for KiCAD. (It is available on Plugin & Contents manager.) Gerber, bom and cpl is placed on production folder directory and Release.

When using Fabrication-Toolkit, Please check "Apply automatic translations" option.

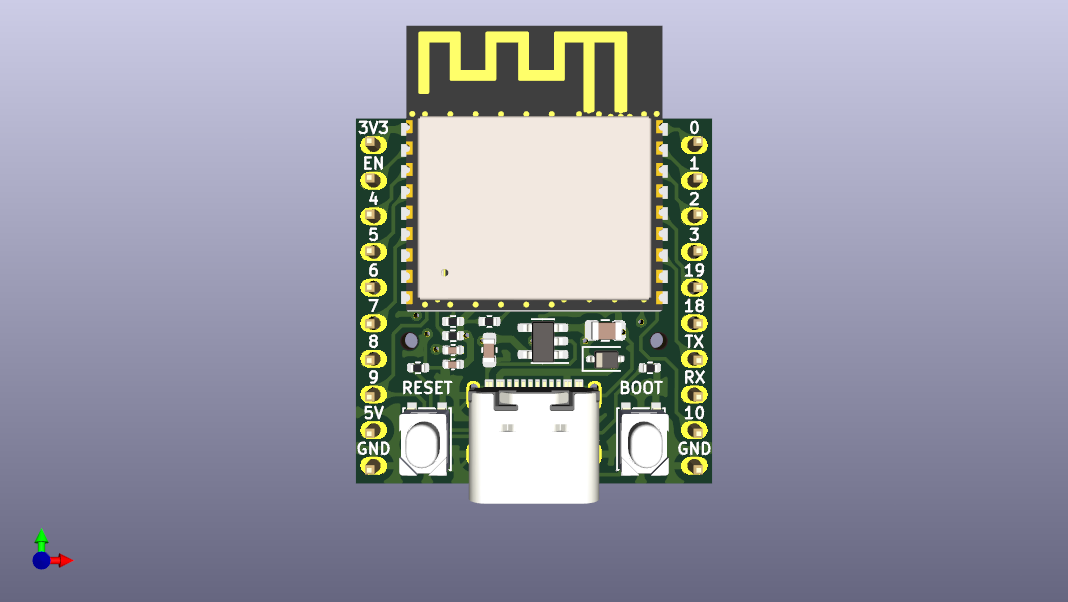

ESP32-C3-DevBoard, from the project README
From the project README

Main components on the ESP32-C3-DevBoard

ESP32-C3-WROOM-02RT9080-33GJ5

ESP32-C3-DevBoard bill of materials (BOM)

15 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-C3-WROOM-02
U1
1
RT9080-33GJ5
U3
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
2
SW_Push
SW1, SW2
1
1N5819WS
D1
1
10U
10u
C1
1
22U
22u
C2
1
1u
C3
1
100N
100n
C4
2
5.1K
5.1k
R1, R2
3
10K
10k
R3, R4, R5

ESP32-C3-DevBoard design files

The KiCad project lives in the 21km43/ESP32-C3-DevBoard repository on GitHub; these links point at the commit this page was built from.

ESP32-C3-DevBoard: common questions

What microcontroller does the ESP32-C3-DevBoard use?

The ESP32-C3-DevBoard is built around the ESP32-C3-WROOM-02, from the ESP32 family.

How big is the ESP32-C3-DevBoard PCB?

The ESP32-C3-DevBoard measures 25.4 × 26 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-C3-DevBoard?

15 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-C3-DevBoard design files?

From the 21km43/ESP32-C3-DevBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32-C3-DevBoard design in my own project?

The repository has no license, so all rights stay with 21km43. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32-C3-DevBoard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
