Wchlinke swd adapter checker
About the Wchlinke swd adapter checker PCB
Wchlinke swd adapter checker is an open source RISC-V PCB design by 74th, published on GitHub under the MIT license. It is a 2-layer board measuring 52 × 50 mm, with 59 components from 11 distinct parts.
Its main chip is the CH32V002F4P6, from the RISC-V family. By type, the board carries 20 diodes, 20 resistors, 10 transistors, 2 connectors, 2 capacitors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

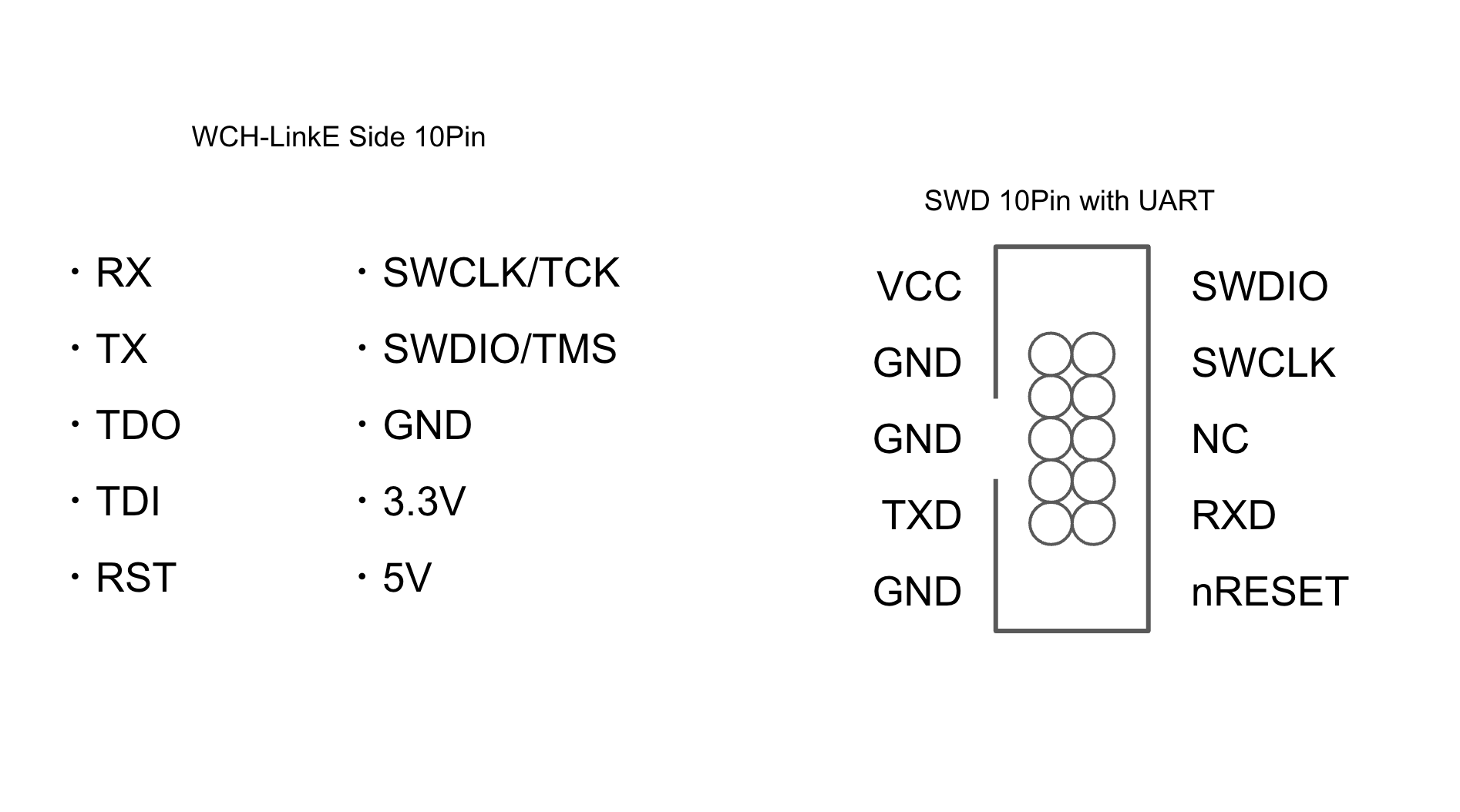

WCH-LinkE をハーフピッチ SWD UART 付きインターフェイスに変換するアダプタです。VCC から 3.3V 取り出されます。
WCH-LinkE をハーフピッチ SWD UART 付きインターフェイスに変換するアダプタです。VCC から 3.3V 取り出されます。
- VCC は本来相手先デバイスが電源オンかどうかを判定する入力端子ですが、相手先デバイスを起動できると便利なため、3.3V 出力端子に変更しています。 - 本来 SWD には UART の仕様はありませんが、Arduino UNO R4 の SWD ポートに倣って UART を追加しています。
Main components on the Wchlinke swd adapter checker
Wchlinke swd adapter checker bill of materials (BOM)
59 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH32V002F4P6 | Package_TSSOP-20_4.4x6.5mm_P0.65mm | U1 |
| 10 | 2N7002 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +2 |
| 2 | BoxPinHeader2x5 | Connector_BoxPinHeader_2x05_P1.27mm | CH1, CH4 |
| 1 | Battery_Cell | BatteryHolder-CR2032 | BT1 |
| 1 | PinHeader2x5 | PinOut_Pin_2x5_1GND | CH2 |
| 1 | SWD | PinOut_Pin_3_3GND | CH3 |
| 1 | SW_Slide | Switch_Slide_SK-12D02-G020 | SW1 |
| 20 | BLUE | LED_0805_2012 | D1, D2, D3, D4, D5, D6, D7, D8 +12 |
| 1 | 10u | Capacitor_0805_2012 | C1 |
| 1 | 100n | Capacitor_0805_2012 | C2 |
| 20 | 10k | Register_0805_2012 | R1, R2, R3, R4, R5, R6, R7, R8 +12 |
Wchlinke swd adapter checker design files
The KiCad project lives in the 74th/ch32v-dev-boards repository on GitHub; these links point at the commit this page was built from.
Wchlinke swd adapter checker: common questions
What microcontroller does the Wchlinke swd adapter checker use?
The Wchlinke swd adapter checker is built around the CH32V002F4P6, from the RISC-V family.
How big is the Wchlinke swd adapter checker PCB?
The Wchlinke swd adapter checker measures 52 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Wchlinke swd adapter checker?
59 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Wchlinke swd adapter checker design files?
From the 74th/ch32v-dev-boards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Wchlinke swd adapter checker design in my own project?
Yes, under the terms of its MIT license, which 74th chose for the repository.
Can I test firmware for the Wchlinke swd adapter checker without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RISC-V firmware against it before you order a PCB.
