CH32V006-full
About the CH32V006-full PCB
CH32V006-full is an open source RISC-V PCB design by 74th, published on GitHub under the MIT license. It is a 2-layer board measuring 20.3 × 47 mm, with 19 components from 14 distinct parts.
Its main chip is the CH32V006K8U6, from the RISC-V family. Other key parts include the CH213K and AMS1117. By type, the board carries 5 resistors, 4 capacitors, 3 ICs, 2 connectors, 1 jumper and 1 switch.
It belongs with the dev boards & breakouts designs in this gallery.

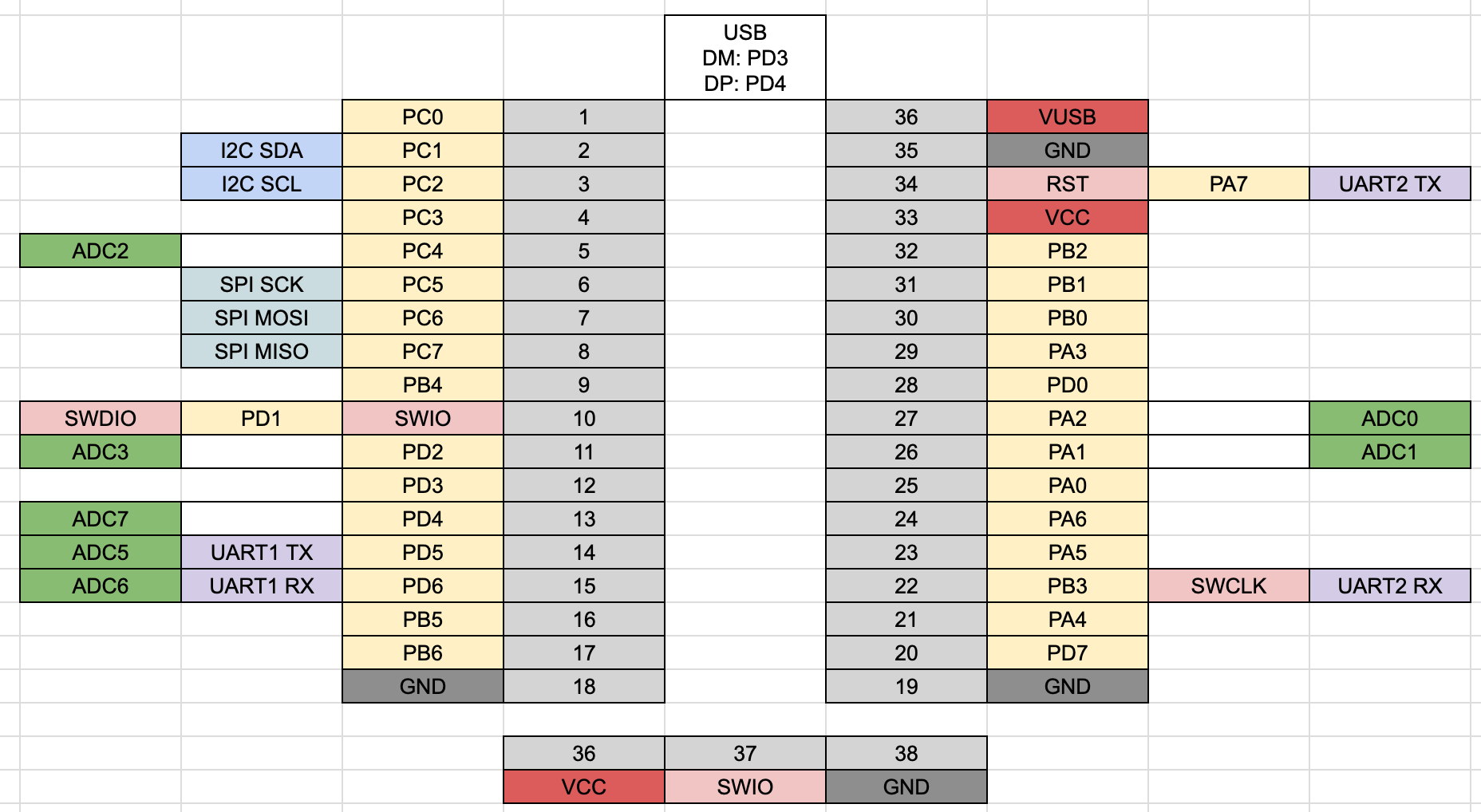

Main components on the CH32V006-full
CH32V006-full bill of materials (BOM)
19 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH32V006K8U6 | Package_QFN-32-1EP_4x4mm_P0.4mm_EP2.7x2.7mm_hand | U1 |
| 1 | CH213K | Package_SOT-23 | U2 |
| 1 | AMS1117 | Package_SOT-89-3 | U3 |
| 1 | USB2.0-C_SMT | Connector_USB-C-Receptacle_SMT_12-Pin_Simple | J1 |
| 1 | SWD_10Pin_MCU-Side | Connector_HalfPinHeader_SWD | J2 |
| 1 | SWD | PinOut_Pin_3_3GND | CH1 |
| 2 | Pin_18 | PinOut_Pin_18 | CH2, CH3 |
| 1 | Jumper_2_Open | SolderJumper-2 | JP1 |
| 1 | SW_Push | Switch_SKRPABE010 | SW1 |
| 2 | 10u | Capacitor_0603_1608 | C1, C2 |
| 2 | 100n | Capacitor_0603_1608 | C3, C4 |
| 2 | 5.1k | Register_0603_1608 | R1, R2 |
| 2 | 10(NC) | Register_0603_1608 | R3, R4 |
| 1 | 1.5k(NC) | Register_0603_1608 | R5 |
CH32V006-full design files
The KiCad project lives in the 74th/ch32v-dev-boards repository on GitHub; these links point at the commit this page was built from.
CH32V006-full: common questions
What microcontroller does the CH32V006-full use?
The CH32V006-full is built around the CH32V006K8U6, from the RISC-V family.
How big is the CH32V006-full PCB?
The CH32V006-full measures 20.3 × 47 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CH32V006-full?
19 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the CH32V006-full design files?
From the 74th/ch32v-dev-boards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CH32V006-full design in my own project?
Yes, under the terms of its MIT license, which 74th chose for the repository.
Can I test firmware for the CH32V006-full without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RISC-V firmware against it before you order a PCB.
