CH32V00x-SOIC8 [74TH-G061]
![CH32V00x-SOIC8 [74TH-G061] PCB layout, top view — open source RISC-V board by 74th](https://hip.fly.dev/v1/gallery/board/74th--ch32v-dev-boards--ch32v00x-soic8.svg)
About the CH32V00x-SOIC8 [74TH-G061] PCB
CH32V00x-SOIC8 [74TH-G061] is an open source RISC-V PCB design by 74th, published on GitHub under the MIT license. It is a 2-layer board measuring 15.2 × 23.5 mm, with 13 components from 10 distinct parts.
Its main chip is the CH32V002J4M6, from the RISC-V family. Other key parts include the CH213K and AMS1117. By type, the board carries 3 ICs, 3 capacitors, 2 resistors, 1 connector and 1 jumper.
It belongs with the dev boards & breakouts designs in this gallery.

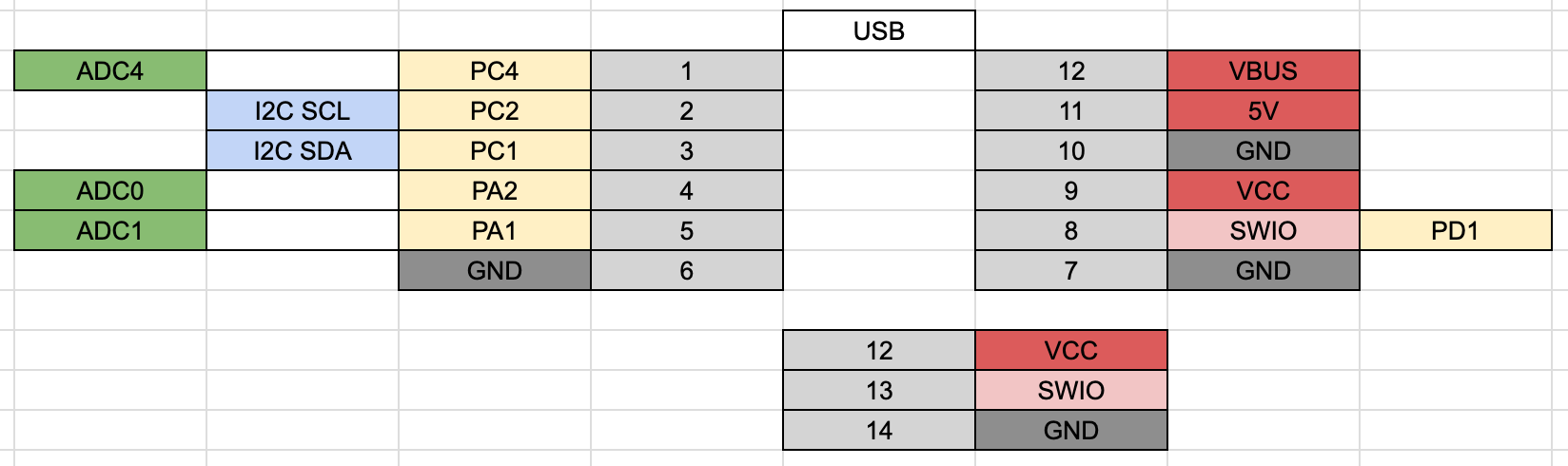

![CH32V00x-SOIC8 [74TH-G061], from the project README](https://raw.githubusercontent.com/74th/ch32v-dev-boards/65a657e58217e584206a4e032ccaa81dfa16310d/ch32v00x-soic8/docs/ch32v00x-soic8-1.0.0-pinout.png)
Main components on the CH32V00x-SOIC8 [74TH-G061]
CH32V00x-SOIC8 [74TH-G061] bill of materials (BOM)
13 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH32V002J4M6 | Package_SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | CH213K | Package_SOT-23 | U2 |
| 1 | AMS1117 | Package_SOT-89-3 | U3 |
| 1 | USB2.0-C_SMT | Connector_USB-C-Receptacle_SMT_12-Pin_Simple | J1 |
| 1 | SWD | PinOut_Pin_3_3GND | CH1 |
| 2 | Pin_6 | PinOut_Pin_6_GND | CH2, CH3 |
| 1 | Jumper_2_Open | SolderJumper-2 | JP2 |
| 2 | 10u | Capacitor_0603_1608 | C1, C2 |
| 1 | 100n | Capacitor_0603_1608 | C3 |
| 2 | 5.1k | Register_0603_1608 | R1, R2 |
CH32V00x-SOIC8 [74TH-G061] design files
The KiCad project lives in the 74th/ch32v-dev-boards repository on GitHub; these links point at the commit this page was built from.
CH32V00x-SOIC8 [74TH-G061]: common questions
What microcontroller does the CH32V00x-SOIC8 [74TH-G061] use?
The CH32V00x-SOIC8 [74TH-G061] is built around the CH32V002J4M6, from the RISC-V family.
How big is the CH32V00x-SOIC8 [74TH-G061] PCB?
The CH32V00x-SOIC8 [74TH-G061] measures 15.2 × 23.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CH32V00x-SOIC8 [74TH-G061]?
13 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the CH32V00x-SOIC8 [74TH-G061] design files?
From the 74th/ch32v-dev-boards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CH32V00x-SOIC8 [74TH-G061] design in my own project?
Yes, under the terms of its MIT license, which 74th chose for the repository.
Can I test firmware for the CH32V00x-SOIC8 [74TH-G061] without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RISC-V firmware against it before you order a PCB.
