FlightController PCB layout, top view — open source STM32 board by Acidicts
Simulate this board

About the FlightController PCB

FlightController is an open source STM32 PCB design by Acidicts, published on GitHub. It is a 2-layer board measuring 46 × 42.7 mm, with 79 components from 37 distinct parts.

Its main chip is the STM32F722RET6, from the STM32 family. Other key parts include the BQ25883RGER, ICM-45686, BMP580, TPS63070RNMR and LMR51430XDDCR. By type, the board carries 37 capacitors, 22 resistors, 6 ICs, 4 inductors, 3 connectors and 2 crystals.

It belongs with the robotics & motion, power & battery and sensors designs in this gallery.

From the project

PCB BOM UNSELECTED - Most due to not being in stock or I couldn't find them on lcsc

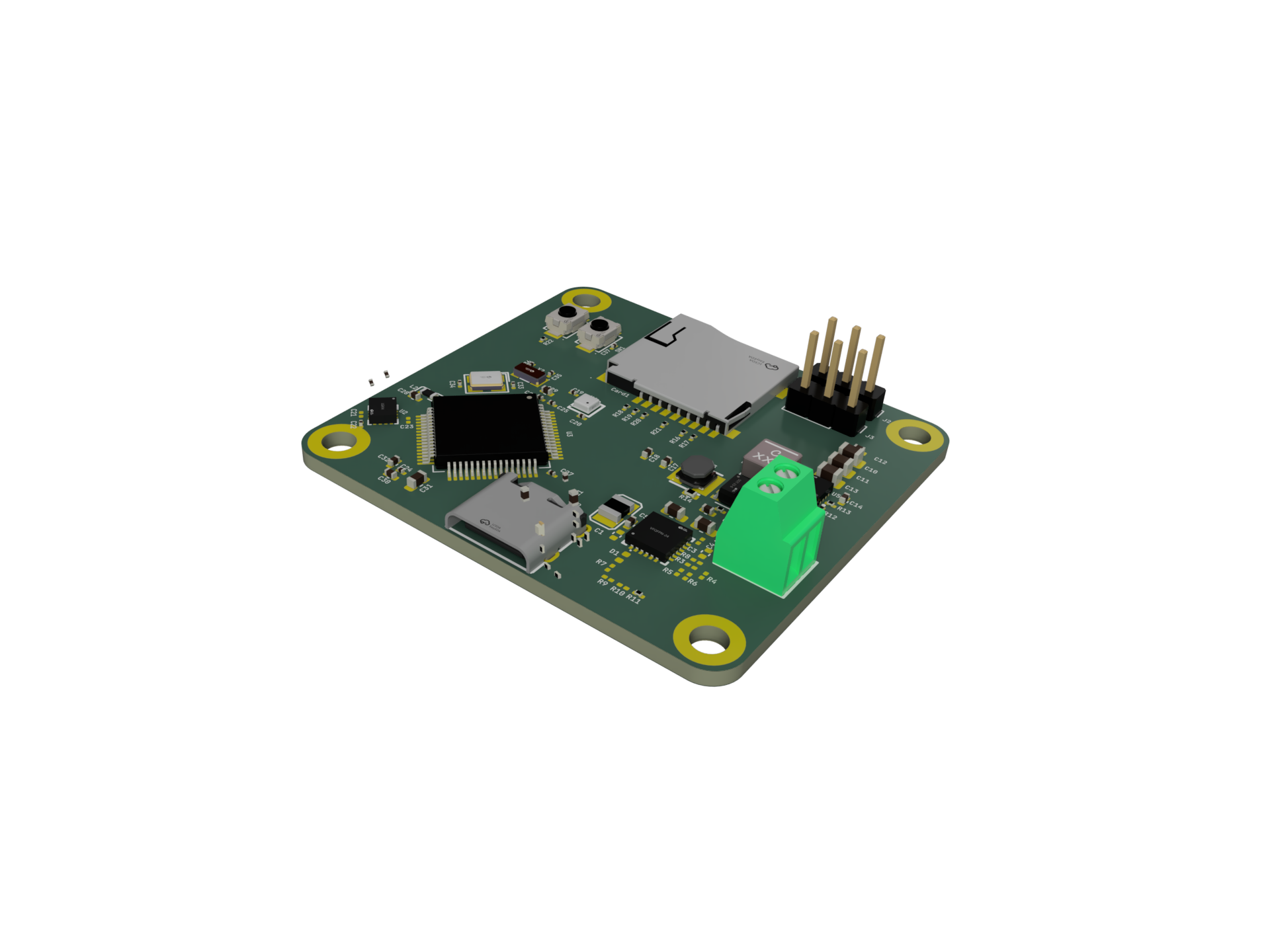

FlightController, from the project README
From the project README

Main components on the FlightController

BQ25883RGERICM-45686STM32F722RET6BMP580TPS63070RNMRLMR51430XDDCR

FlightController bill of materials (BOM)

79 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BQ25883RGER
TI(德州仪器)
U1
1
ICM-45686
TDK InvenSense(应美盛)
U2
1
STM32F722RET6
STM32F722RETx
U3
1
BMP580
Bosch(博世)
U4
1
TPS63070RNMR
TI(德州仪器)
U5
1
LMR51430XDDCR
TI(德州仪器)
U6
1
X322525MOB4SI
YXC(扬兴晶振)
X1
1
Q13FC13500004
Q13FC1350000400
EPSON(爱普生)
X2
1
XY308-2.54-2P
XINLAIYA(新莱亚)
J1
2
Conn_01x03
J2, J3
1
TF-01A
TF-01A_C2889258
Yuandi(台湾元迪)
Card1
2
TS-1088-AR02016
XUNPU(讯普)
SW1, SW2
1
TYPE-C 16PIN 2MD(073)
TYPE-C 16PIN 2MD
SHOU HAN(首韩)
USB1
1
LED
D1
1
DFE252012F-1R0M=P2
muRata(村田)
L1
1
FCM1608KF-601T03
TAI-TECH(台庆)
L2
1
YHNR3015-5R6M
YJYCOIN(益嘉源)
L3
1
XFL4020-152MEC
Coilcraft(线艺)
L4
4
CL05A105KA5NQNC
1uF
C1, C28, C29, C30
2
CL10A106KP8NNNC
10uF
C2, C31
Show 17 more
QtyPartRefs
6
CL05A106MQ5NUNC
10uF
C3, C5, C7, C8, C9, C12
1
CC0201KRX5R7BB473
47nF
C4
1
44uF
C6
3
CL21A226MAQNNNE
22uF
C10, C11, C13
2
CL05B104KO5NNNC
100nF
C14, C15
2
CL05A225MQ5NSNC
2.2uF
C16, C32
2
GRM155R60J226ME11D
22uF
C17, C18
10
GRM033R61A104KE15D
100nF
C19, C20, C21, C22, C23, C24, C25, C26 +2
2
CC0201JRNPO9BN200
20pF
C33, C34
2
GRM0335C1H6R8CA01D
6.8pF
C35, C36
2
5.1k
R1, R2
1
383
R3
1
0201WMF5231TEE
5.23k
R4
1
30.1k
R5
15
CR0201FH1002G
10k
R6, R7, R8, R9, R10, R11, R12, R13 +7
1
RC0402FR-07100KL
100k
R14
1
22.1k
R15

FlightController design files

The KiCad project lives in the Acidicts/FlightController repository on GitHub; these links point at the commit this page was built from.

FlightController: common questions

What microcontroller does the FlightController use?

The FlightController is built around the STM32F722RET6, from the STM32 family.

How big is the FlightController PCB?

The FlightController measures 46 × 42.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FlightController?

79 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FlightController design files?

From the Acidicts/FlightController repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FlightController design in my own project?

The repository has no license, so all rights stay with Acidicts. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the FlightController without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
