About the Core16 LB PCB
Core16 LB is an open source RP2040/RP2350 PCB design by ageppert, published on GitHub. It is a 2-layer board measuring 88.9 × 50.8 mm, with 124 components from 36 distinct parts.
Its main chip is the PICO W, from the RP2040/RP2350 family. Other key parts include the M24C02-WMN6TP, ME6211C33M5G-N, SN74LV1T125DBVR, LM393DT and SN74HC02DR. By type, the board carries 49 resistors, 22 diodes, 19 transistors, 18 capacitors, 10 ICs and 2 crystals.
From the project
Weave 16 bits of core memory and LEDs to interact with using a magnetic wand
Follow this project at: https://hackaday.io/project/191834-core16-interactive-core-memory-made-smaller
You are in the hardware development repository. Firmware is at https://github.com/ageppert/Core64/releases

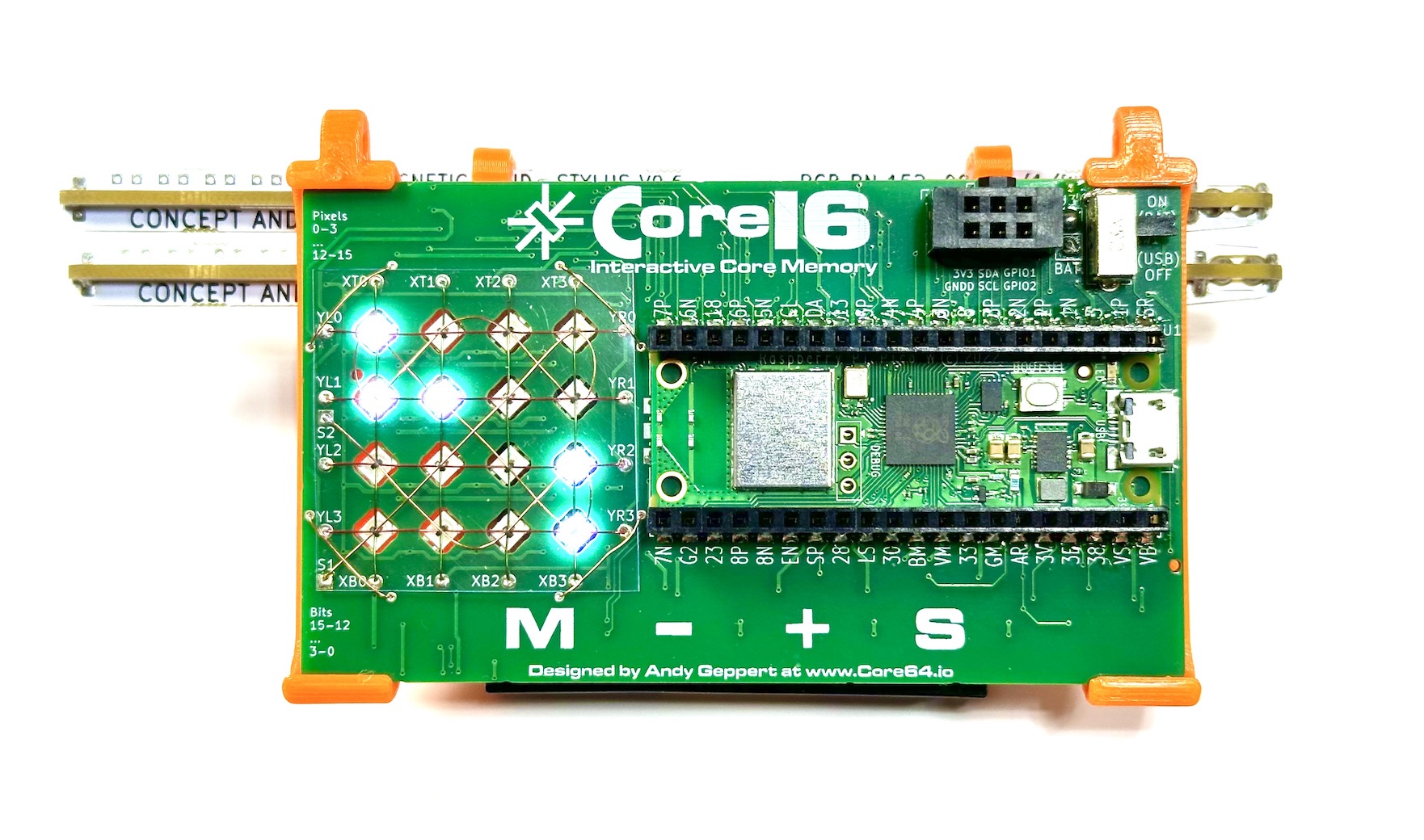

v0.2 Logic Board - First production batch

Main components on the Core16 LB
Core16 LB bill of materials (BOM)
124 components, 36 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PICO W | Pico_SC0915_THRUHOLE_CUTOUTS | U1 |
| 1 | M24C02-WMN6TP M24C02-RMN STMicroelectronics | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | ME6211C33M5G-N TLV75533PDBVR MICRONE | SOT-23-5 | U7 |
| 1 | SN74LV1T125DBVR Texas Instruments | SOT-23-5 | U8 |
| 1 | LM393DT LM393 STMicroelectronics | SOIC-8_W3.9mm | U9 |
| 1 | SN74HC02DR Texas Instruments | SOIC-14_3.9x8.7mm_P1.27mm | U10 |
| 1 | SI7210-B-00-IV Silicon Labs | SOT-23-5 | U11 |
| 1 | SI7210-B-02-IV Silicon Labs | SOT-23-5 | U12 |
| 1 | SI7210-B-03-IV Silicon Labs | SOT-23-5 | U13 |
| 1 | SI7210-B-04-IV Silicon Labs | SOT-23-5 | U14 |
| 8 | MMBT4403LT1G ON Semiconductor | SOT-23-3 | Q1, Q5, Q7, Q9, Q11, Q13, Q17, Q19 |
| 8 | MMBT4401LT1G ON Semiconductor | SOT-23-3 | Q2, Q6, Q8, Q10, Q12, Q14, Q18, Q20 |
| 1 | NVTR4503NT1G NVTR4503NT1G_NMOS_GSD ON Semiconductor | SOT-23-3 | Q21 |
| 2 | SL3401A-TP SL3401A Micro Commercial Co | SOT-23-3 | Q22, Q23 |
| 1 | SFH11-NBPC-D03-ST-BK SAO_conn_SFH11-NBPC-D03-ST-BK Sullins | Badgelife-SAOv169-BADGE-2x3 | X8 |
| 1 | SM04B-SRSS-TB QWIIC JST | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | X9 |
| 1 | ALT. BATT. | PinSocket_1x02_P2.54mm_Vertical | J3 |
| 1 | CORE_MEMORY_4X4_MATRIX_FRONT_FACING Core_Memory_4x4_Matrix_Front_Facing | core_16_6.75mm_square_front_facing | CM1 |
| 1 | OS102011MA1QN1 SK12D07L4B C&K | SK12D07VG4 | SW1 |
| 3 | BAT54CW-7-F BAT54CW Diodes Inc. | SOT-323_SC-70 | D1, D3, D9 |
Show 16 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | BAT54AW-7-F BAT54AW Diodes Inc. | SOT-323_SC-70 | D2, D4, D10 |
| 16 | SK6812-E SK6812 DONGGUAN OPSCO OPTOELECTRONICS | 4960_ADA_REV_RGB_LED_short_pads | D21, D22, D23, D24, D25, D26, D27, D28 +8 |
| 1 | CORE_64_M-+S_BUTTONS_4MM Core_64_M-+S_Buttons_4mm | Core64-M_-_+_S_Buttons | L3 |
| 8 | 0.1UF 0.1uF | C_0805_2012Metric | C1, C16, C17, C19, C20, C21, C22, C23 |
| 6 | 220UF 220uF | C_1206_3216Metric | C7, C8, C9, C13, C14, C15 |
| 2 | 1UF 1uF | C_0805_2012Metric | C10, C12 |
| 1 | 0.01UF 0.01uF | C_0805_2012Metric | C11 |
| 1 | 10UF 10uF | C_0805_2012Metric | C18 |
| 18 | 470 | R_0805_2012Metric | R1, R2, R5, R6, R7, R8, R9, R10 +10 |
| 6 | 6R8-5% | R_0805_2012Metric | R21, R22, R23, R24, R25, R26 |
| 9 | 10K | R_0805_2012Metric | R27, R36, R37, R38, R44, R101, R102, R103 +1 |
| 7 | 1K2 | R_0805_2012Metric | R30, R31, R41, R42, R43, R54, R55 |
| 2 | 68 | R_0805_2012Metric | R32, R33 |
| 3 | 1K5-1% | R_0805_2012Metric | R47, R50, R53 |
| 2 | 1K8-1% | R_0805_2012Metric | R48, R51 |
| 2 | 11-1% | R_0805_2012Metric | R49, R52 |
Core16 LB design files
The KiCad project lives in the ageppert/Core16-Interactive-Core-Memory repository on GitHub; these links point at the commit this page was built from.
Core16 LB: common questions
What microcontroller does the Core16 LB use?
The Core16 LB is built around the PICO W, from the RP2040/RP2350 family.
How big is the Core16 LB PCB?
The Core16 LB measures 88.9 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Core16 LB?
124 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Core16 LB design files?
From the ageppert/Core16-Interactive-Core-Memory repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Core16 LB design in my own project?
The repository has no license, so all rights stay with ageppert. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Core16 LB without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
