About the FlightComputer PCB
FlightComputer is an open source STM32 PCB design by akkdong, published on GitHub. It is a 4-layer board measuring 148 × 102 mm, with 409 components from 92 distinct parts.
Its main chip is the STM32H745IIT6, from the STM32 family. Other key parts include the WM8960, TPS65186RGZT, MT25QL512ABB8ESF-0AAT, MT48LC16M16A2P and MAX809TTRG. By type, the board carries 205 resistors, 125 capacitors, 17 diodes, 16 ICs, 14 jumpers and 14 inductors.
From the project

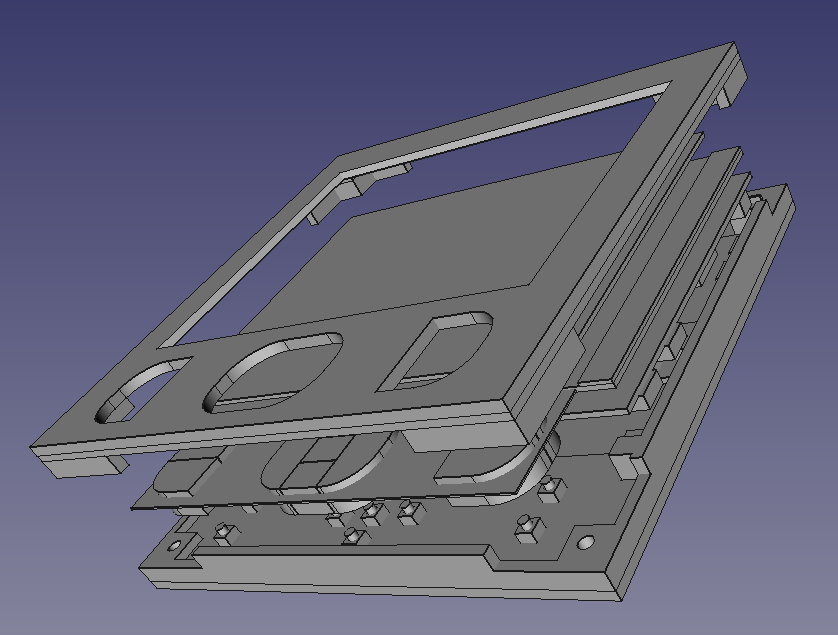

Flight assistant computer
Main components on the FlightComputer
FlightComputer bill of materials (BOM)
409 components, 92 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WM8960 | QFN-32-1EP_5x5mm_P0.5mm_EP3.3x3.3mm_ThermalVias | U1 |
| 1 | TPS65186RGZT TPS65186 | TPS65186-VQFN-48 | U2 |
| 1 | MT25QL512ABB8ESF-0AAT MT25QL512ABB8ESF | SOP2-16_7.5x10.3mm_P1.27mm | U3 |
| 1 | MT48LC16M16A2P | TSOP-II-54_22.2x10.16mm_P0.8mm | U4 |
| 1 | MAX809TTRG | SOT-23 | U5 |
| 2 | XC6220B331MR-G | SOT-23-5_HandSoldering | U6, U8 |
| 1 | MCP73871T-1AAI/ML MCP73871 | QFN-20-1EP_4x4mm_P0.5mm_EP2.5x2.5mm | U7 |
| 1 | EPD_PMIC | EPD_PMIC | U9 |
| 1 | TPS61235PRWLR TPS61235P | VQFN-9 | U10 |
| 1 | TPS22917DBV | SOT-23-6 | U11 |
| 1 | 621-PAM8301AAF PAM8301 | SOT-23-6 | U12 |
| 1 | STM32H745IIT6 STM32H745IIT | LQFP-176_24x24mm_P0.5mm | U13 |
| 1 | STMPS2151STR | SOT-23-5_HandSoldering | U14 |
| 2 | USBLC6-2SC6 | SOT-23-6_Handsoldering | U15, U16 |
| 1 | TEA5767_RADIO_MODULE TEA5767_Radio_Module | TEA5756-TJ-102BC | M1 |
| 1 | GY-86 / GY-91 | GY-86 | M3 |
| 1 | 815ASE24.000MHZET 24MHz | Oscillator_SMD_Abracon_ASE-4Pin_3.2x2.5mm | X1 |
| 1 | 815M3BAIG251ZT 25MHz | Crystal_SMD_5032-4Pin_5.0x3.2mm | Y1 |
| 2 | CONN_01X10 Conn_01x10 | PinSocket_1x10_P2.54mm_Vertical | J1, J2 |
| 1 | CONN_01X01 Conn_01x01 | Pin_D1.2mm_L10.2mm_W2.9mm_FlatFork | J4 |
Show 72 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 769-AXT334124 ED060SC7_EPD | AXT334124 | J5 |
| 1 | RPI_Connector | PinSocket_2x20_P2.54mm_Vertical | J6 |
| 1 | Micro_SD_Card | microSD_HC_Hirose_DM3AT-SF-PEJM5 | J7 |
| 1 | CONN_01X02 Conn_01x02 | Molex_SPOX_5268-02A_1x02_P2.50mm_Horizontal | J8 |
| 1 | CONN_02X20_ODD_EVEN Conn_02x20_Odd_Even | PinSocket_2x20_P2.54mm_Vertical | J11 |
| 2 | 571-1981568-1 USB_B_Micro | USB_Micro-B_TE-1981568-1 | J12, J13 |
| 1 | R193A | Jumper_0402_1005Metric | JP1 |
| 1 | R194A | Jumper_0402_1005Metric | JP2 |
| 1 | R195A | Jumper_0402_1005Metric | JP3 |
| 1 | R196A | Jumper_0402_1005Metric | JP4 |
| 1 | R197A | Jumper_0402_1005Metric | JP5 |
| 1 | R198A | Jumper_0402_1005Metric | JP6 |
| 1 | R199A | Jumper_0402_1005Metric | JP7 |
| 1 | R200A | Jumper_0402_1005Metric | JP8 |
| 1 | R201A | Jumper_0402_1005Metric | JP9 |
| 1 | R202A | Jumper_0402_1005Metric | JP10 |
| 1 | R203A | Jumper_0402_1005Metric | JP11 |
| 1 | R204A | Jumper_0402_1005Metric | JP12 |
| 1 | R205A | Jumper_0402_1005Metric | JP13 |
| 1 | BYPASS | Jumper_0402_1005Metric | JP14 |
| 1 | Speaker | SMT-0927-S-12-R | LS1 |
| 2 | SW_Push | SW-TACT-436351045816 | SW10, SW11 |
| 1 | NCU15XH103F6SRC NCP18XH103F03RB(10K) | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | TH1 |
| 2 | 863-BAT54XV2T1G MBR130T1G | D_SOD-523 | D1, D2 |
| 3 | 863-BAT54XV2T1G RB531SM | D_SOD-523 | D3, D4, D5 |
| 3 | 863-BAT54XV2T1G BAT54-SOT23 | D_SOD-523 | D6, D16, D17 |
| 1 | LED_R | SML-LXR85GC-TR | D7 |
| 1 | LED_G | SML-LXR85GC-TR | D8 |
| 3 | LED_G | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D9, D14, D15 |
| 3 | LED_R | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D10, D11, D12 |
| 1 | LED_G | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D13 |
| 1 | BEAD(BMJ1608HM180NTR) | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | FB1 |
| 9 | Ferrite | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | L1, L2, L3, L4, L5, L6, L7, L10 +1 |
| 1 | 963-NR4012T2R2M 2.2uH | L_1515(4040 metric) | L8 |
| 1 | 81-LQH44PN4R7MP0L 4.7uH | L_1515(4040 metric) | L9 |
| 1 | SRP1038C-1R0M 1.0uH | SRP1038C-1R0M | L11 |
| 1 | 2.2uH (LQM2MPN2R2NG0) | L_1008_2520Metric_Pad1.43x2.20mm_HandSolder | L12 |
| 46 | EMF105B7104MVHF 0.1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1, C2, C3, C16, C19, C41, C42, C43 +38 |
| 8 | JMK105BC6475MV-F 4.7uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C4, C5, C14, C15, C91, C92, C93, C110 |
| 9 | HMK105B7221KVHFE 220pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C6, C7, C10, C11, C12, C13, C95, C124 +1 |
| 7 | 10UF 10uF | CP_EIA-1608-08_AVX-J_Pad1.25x1.05mm_HandSolder | C8, C9, C52, C56, C58, C71, C79 |
| 14 | 10UF 10uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C17, C18, C20, C21, C22, C35, C61, C65 +6 |
| 13 | TMK107BBJ475MA-T 4.7uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C23, C24, C31, C32, C33, C34, C36, C37 +5 |
| 2 | TMK105B7104KVHF 0.1uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C25, C26 |
| 2 | TMF105B7103MVHF 0.01uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C27, C28 |
| 2 | C1005X5R1V225K050BE 2.2uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C29, C30 |
| 9 | JMR105CD7105MV-F 1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C40, C53, C54, C59, C69, C77, C90, C97 +1 |
| 3 | N/C | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C55, C60, C72 |
| 1 | LMK105AC6225KV-F 2.2uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C63 |
| 1 | 100UF 100uF | CP_EIA-3216-10_Kemet-I_Pad1.58x1.35mm_HandSolder | C64 |
| 3 | GRM188R61A226ME15D 22uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C66, C73, C74 |
| 1 | 100UF 100uF | CP_EIA-3528-15_AVX-H_Pad1.50x2.35mm_HandSolder | C75 |
| 1 | 10NF 10nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C78 |
| 2 | VJ0402A180KXQCW1BC 18pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C83, C84 |
| 1 | AMK105B7474KVHF 0.47uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C122 |
| 127 | 33R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1, R2, R3, R4, R5, R6, R7, R8 +119 |
| 4 | N/C | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R11, R12, R117, R185 |
| 10 | 10K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R14, R36, R37, R46, R184, R189, R190, R191 +2 |
| 19 | 0R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R15, R124, R125, R127, R128, R129, R131, R139 +11 |
| 6 | CRCW04021M00FKEDC 1M | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R18, R20, R115, R140, R162, R163 |
| 1 | 47.5K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R19 |
| 1 | 52.3K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R21 |
| 1 | 43K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R22 |
| 13 | 1K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R28, R29, R30, R31, R118, R119, R132, R133 +5 |
| 8 | 47K 47k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R95, R96, R103, R104, R105, R106, R148, R208 |
| 9 | 100K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R113, R116, R120, R123, R130, R136, R186, R188 +1 |
| 1 | 270K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R114 |
| 1 | 15K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R121 |
| 1 | 560K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R137 |
| 1 | 332K 0.5% | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R169 |
| 1 | 41.2K 0.5% | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R170 |
| 1 | 2K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R172 |
