About the Camper van PCB

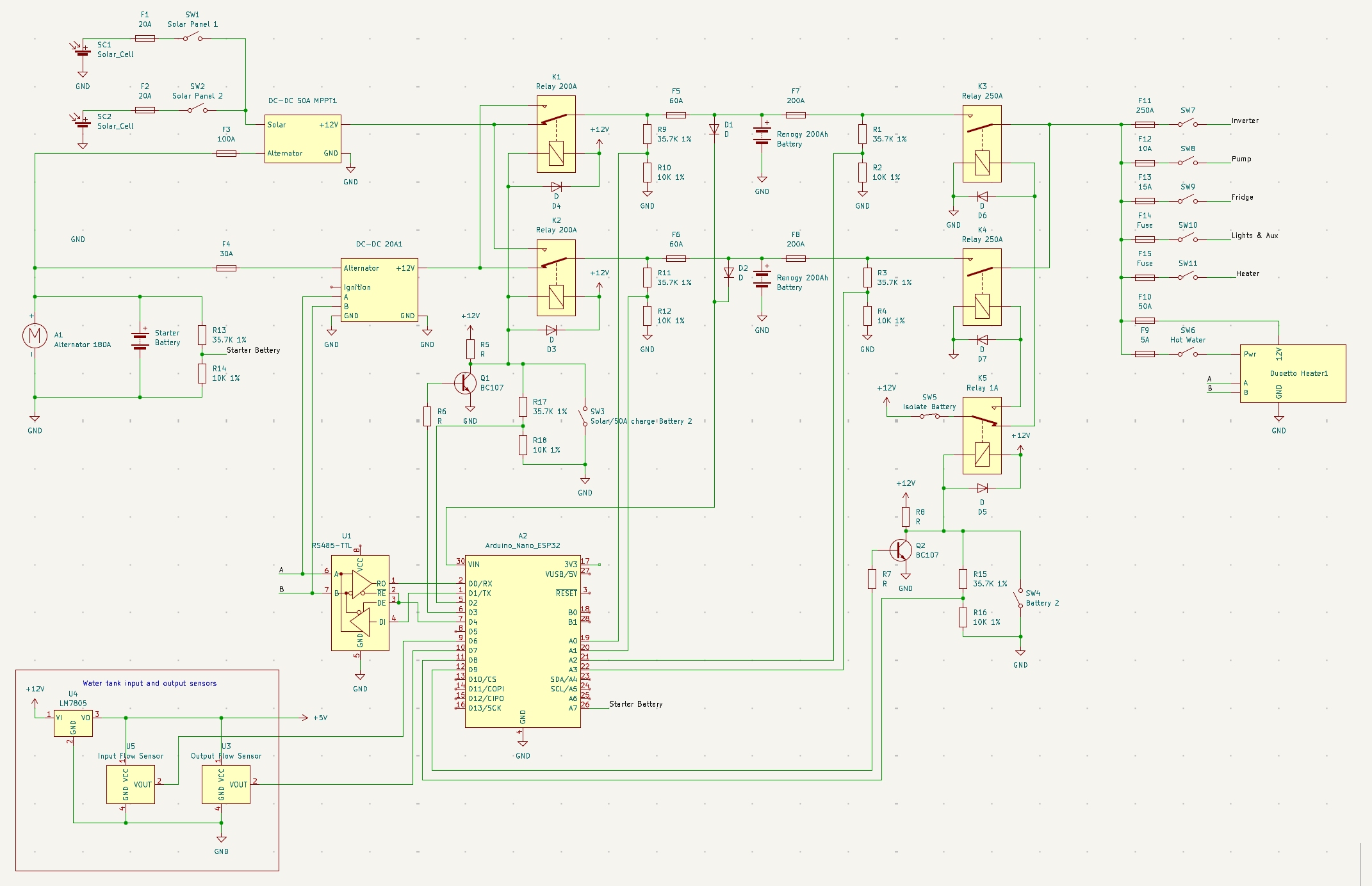

Camper van is an open source AVR/Arduino PCB design by akladnig, published on GitHub. It is a 2-layer board, with 253 components from 153 distinct parts.

Its main chip is the ARDUINO_NANO_ESP32, from the AVR/Arduino family. Other key parts include the Input Flow Sensor, Output Flow Sensor, DS18B20, CNY17-3 and MCP6004. By type, the board carries 66 resistors, 52 capacitors, 35 connectors, 31 ICs, 17 fuses and 15 switches.

It belongs with the power & battery and sensors designs in this gallery.

From the project

- CamperVan Design and Arduino Circuit Design - Campervan Design Overview - Dashboard App - Electrical System - Sensors - Circuit Design - Battery and voltage monitoring - Voltage Divider Design - Low Pass Filter - TODO

- CamperVan Design and Arduino Circuit Design - Campervan Design Overview - Dashboard App - Electrical System - Sensors - Circuit Design - Battery and voltage monitoring - Voltage Divider Design - Low Pass Filter - TODO

The electrical system for the camper van needs to power the following devices: - Induction Cooktop - 1800W - Air Fryer - 1800W - Duetto Hot Water - 300W - Bushman 85l fridge - - Water Pump - - Lights & Fan -

Main components on the Camper van

Input Flow SensorOutput Flow SensorDS18B20CNY17-3MCP6004MCP6002-XPLM7805BA00RS485-TTLIL300ILQ615-3IPS 3.5" DisplayAlternator 180AARDUINO_NANO_ESP32ARDUINO_NANO_V3.X
