ClearBell V0.2 Innen

akoerner-dev·ClearBell·hardware/Inneneinheit/ClearBell_V0.2_Innen.kicad_pcb

ClearBell V0.2 Innen PCB layout, top view — open source ESP32 board by akoerner-dev
Simulate this board

About the ClearBell V0.2 Innen PCB

ClearBell V0.2 Innen is an open source ESP32 PCB design by akoerner-dev, published on GitHub under the MIT license. It is a 4-layer board measuring 98 × 60 mm, with 33 components from 23 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16R8, from the ESP32 family. Other key parts include the TLV62568DBVR, MAX98357AETE+T and IM72D128V01. By type, the board carries 4 ICs, 1 LED and 1 inductor.

It belongs with the audio, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

Selbst entwickeltes ESP32-Klingelsystem fuer ein Zweifamilienhaus - KiCad-Hardware und Arduino-Firmware (WLAN/UDP, HMAC-gesichert).

Selbst entwickeltes Türklingelsystem für ein Zweifamilienhaus — vollständig eigenentwickelt von der Schaltung über das PCB-Layout bis zur Firmware. Das Projekt dokumentiert nicht nur was gebaut wurde, sondern die begründeten Technikentscheidungen dahinter.

Aktuelle Generation: V0.2 — Redesign auf den ESP32-S3. Beide Platinen sind fertig verlegt, geprüft und werden bei PCBWay gefertigt und bestückt. Die erste Generation läuft im Haus und liegt im Archiv.

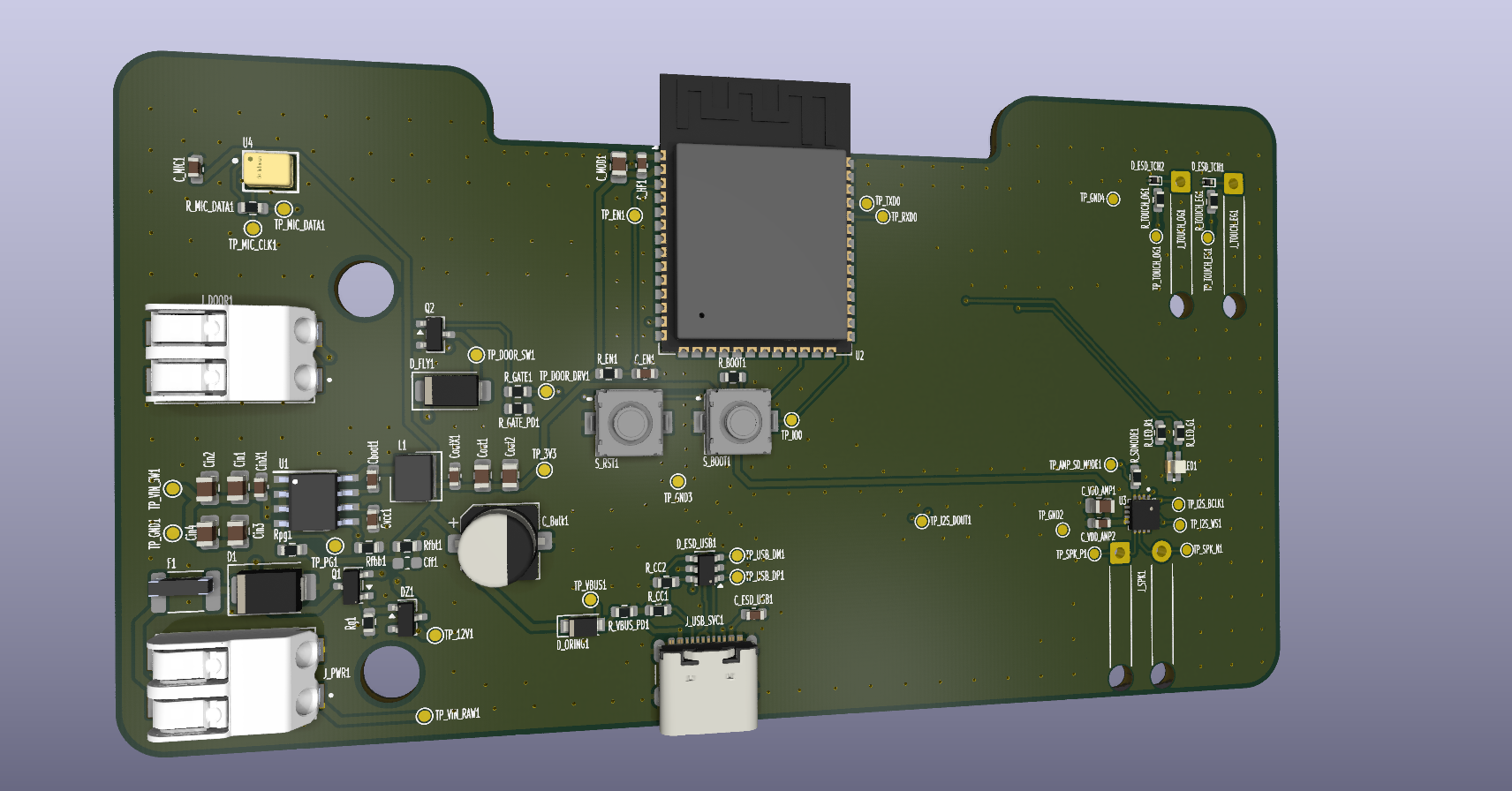

ClearBell V0.2 Innen, from the project README
