QL QsoundQprint clone
About the QL QsoundQprint clone PCB
QL QsoundQprint clone is an open source PCB design by alvaroalea, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 99.1 × 99.1 mm, with 22 components from 16 distinct parts.
Other key parts include the 7805, 74LS10, 74LS266, W27C512 and 74LS03. By type, the board carries 7 ICs, 7 resistors, 4 capacitors, 3 connectors and 1 transistor.
From the project

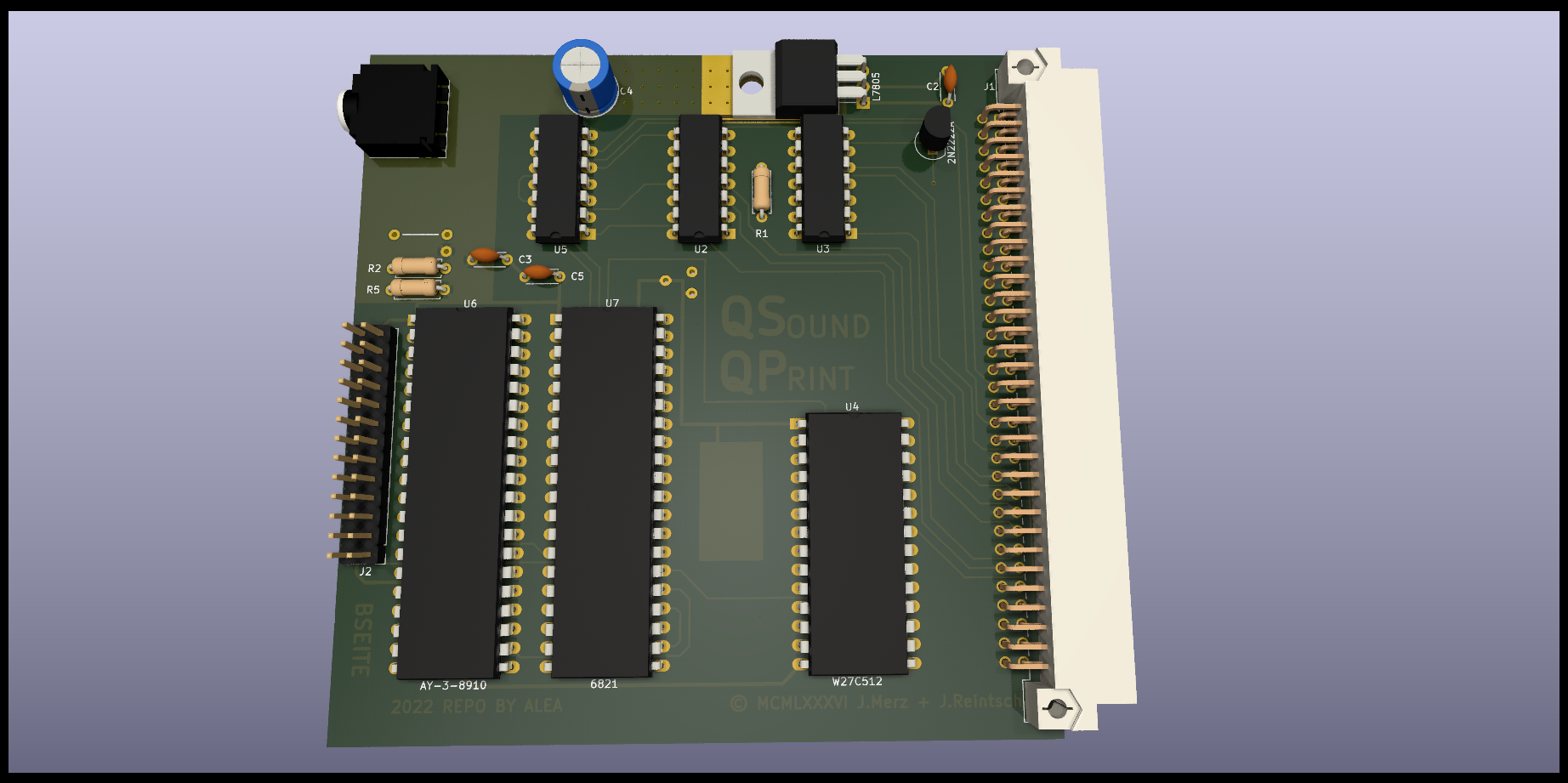

A clone board of the Sound card for the Sinclair QL Computer.
I try to follow the original desing as much as possible, with some licenses:
- It's 10mm short, to fit in a 10x10cm, that is a lot cheaps if order PCB. - The 7805 regulator board and the output Jack was modify. - I use a electrolitic capacitor instead the original tantalo one. - There are some jumper to allow a future ACB stereo mix.
This project can not be possible without the help of silvester, that tracked a fault in the schematic and Marcel Kilgus that develop a new ROM with a qsound device and a pt3 player.
Main components on the QL QsoundQprint clone
QL QsoundQprint clone bill of materials (BOM)
22 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 7805 | TO-220-3_Horizontal_TabDown | U1 |
| 1 | 74LS10 | DIP-14_W7.62mm_LongPads | U2 |
| 1 | 74LS266 | DIP-14_W7.62mm_LongPads | U3 |
| 1 | W27C512 | DIP-28_W15.24mm_LongPads | U4 |
| 1 | 74LS03 | DIP-14_W7.62mm_LongPads | U5 |
| 1 | AY-3-8910 | DIP-40_W15.24mm_LongPads | U6 |
| 1 | 6821 | DIP-40_W15.24mm_LongPads | U7 |
| 1 | 2N2222A | TO-92_Inline | Q1 |
| 1 | QL_SLOT_DIN41612_CARD | DIN41612_B_2x32_Female_Horizontal_THT | J1 |
| 1 | Conn_02x17_Odd_Even | PinHeader_2x13_P2.54mm_Vertical | J2 |
| 1 | AudioJack2_Ground_Switch | AudioJack2_Ground_Switch | J3 |
| 3 | 100n | C_Disc_D4.3mm_W1.9mm_P5.00mm | C2, C3, C5 |
| 1 | 100uF 16V | CP_Radial_D8.0mm_P5.00mm | C4 |
| 1 | 2k2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 2 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R5 |
| 4 | 0 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4, R6, R7 |
