About the PowerBox PCB

PowerBox is an open source PCB design by Alvin-Alford, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 100 × 75 mm, with 113 components from 44 distinct parts.

Other key parts include the TPS54620, MMBT3906LT1G, DMP6023LE-13, 2N7002 and BQ25887RGER. By type, the board carries 38 resistors, 26 capacitors, 21 ICs, 17 test points, 6 inductors and 1 switch.

It belongs with the power & battery designs in this gallery.

From the project

Add Later

PowerBox is my custom-designed PCB that handles USB-C Power Delivery input, dual-cell lithium battery management, balance charging, and regulated power output, all in a single compact board. Designed to push up to 36W of power to whatever you throw at it.

PowerBox was built to power DIY cyberdecks and portable computing projects that need more juice than a standard battery banks can provide.

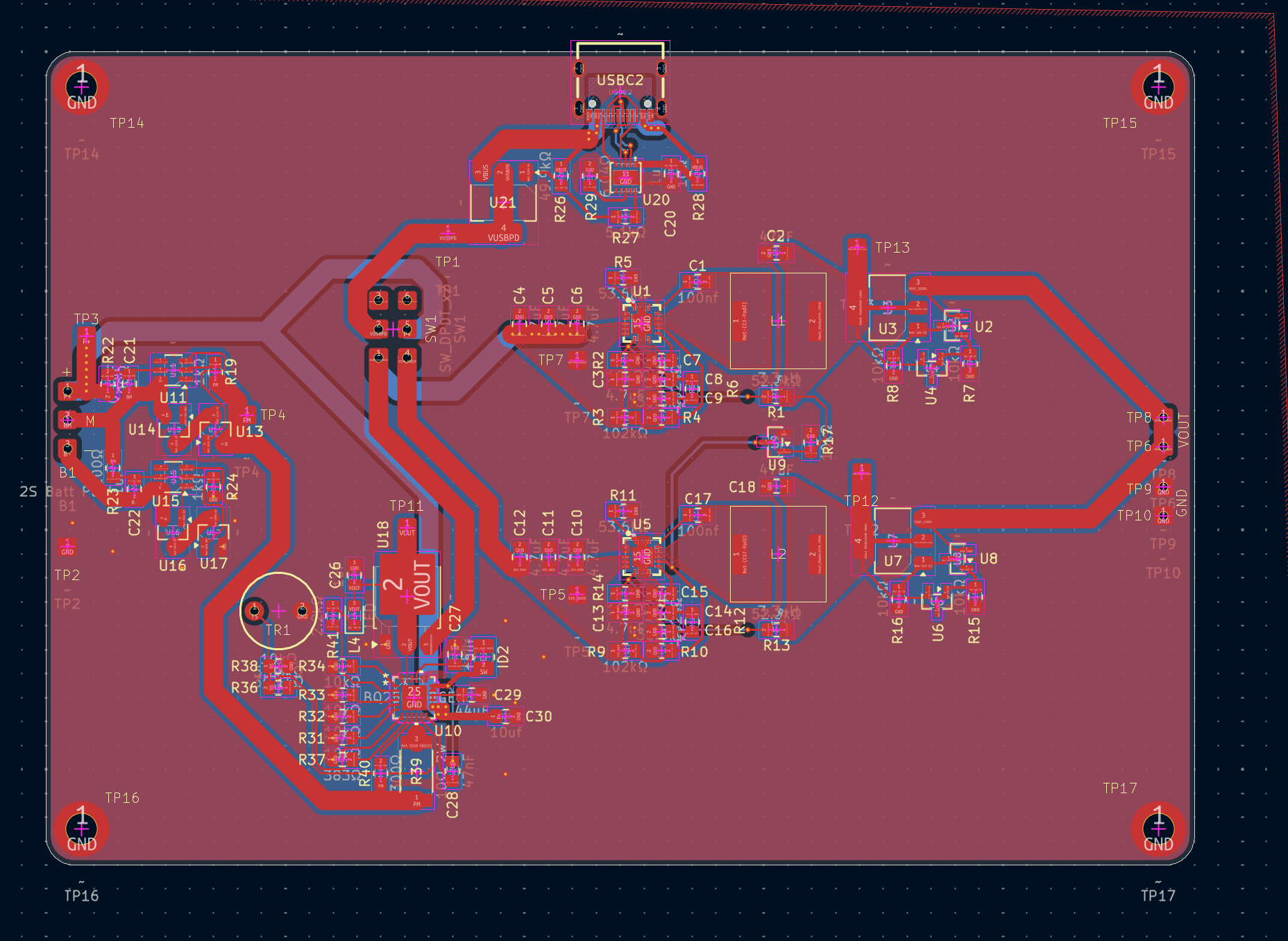

PowerBox, from the project README
From the project README

Main components on the PowerBox

TPS54620MMBT3906LT1GDMP6023LE-132N7002BQ25887RGERDW01AAO3400ABC817CH221K

PowerBox bill of materials (BOM)

113 components, 44 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TPS54620
TI(德州仪器)
U1, U5
5
MMBT3906LT1G
U2, U4, U6, U8, U12
3
DMP6023LE-13
U3, U7, U21
1
2N7002
U9
1
BQ25887RGER
U10
2
DW01A
U11, U15
4
AO3400A
U13, U14, U16, U17
2
BC817
U19, U22
1
CH221K
U23
1
2S Batt Pack
B1
1
1uh
ID2
1
SW_DPDT_x2
SW1
11
~
TP1, TP2, TP3, TP4, TP5, TP7, TP9, TP10 +3
4
~
TP14, TP15, TP16, TP17
2
~
TP18, TP19
1
10kΩ
TR1
1
USBC_Port
韩国韩荣
USBC2
2
3.3uH
L1, L2
4
LED
L3, L4, L5, L6
2
100nf
C1, C17
Show 24 more
QtyPartRefs
3
47uF
C2, C19, C23
9
4.7uF
C3, C4, C5, C6, C10, C11, C12, C13 +1
2
2.2uF
C7, C15
2
30pF
C8, C14
2
18uF
C9, C16
1
1uF
C20
2
0.1uF
C21, C22
2
10uf
C27, C30
1
47nF
C28
2
52.3kΩ
R1, R13
12
10kΩ
R2, R7, R8, R14, R15, R16, R17, R29 +4
2
102kΩ
R3, R9
2
36.5kΩ
R4, R10
2
53.6kΩ
R5, R11
2
4.02kΩ
R6, R12
4
1kΩ
R19, R21, R24, R25
2
100Ω
R22, R23
3
2.2kΩ
R26, R27, R41
2
100kΩ
R28, R30
1
5.23kΩ
R36
1
383Ω
R37
1
30.1kΩ
R38
1
10Ω_2W
R39
1
300Ω
R40

PowerBox design files

The KiCad project lives in the Alvin-Alford/PowerBox repository on GitHub; these links point at the commit this page was built from.

PowerBox: common questions

How big is the PowerBox PCB?

The PowerBox measures 100 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PowerBox?

113 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PowerBox design files?

From the Alvin-Alford/PowerBox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PowerBox design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
