Hyper Wheel XIAO

AnotherBuildCorner·Hyper_Wheel·PCB/Hyper_Wheel_XIAO/Hyper_Wheel_XIAO.kicad_pcb

Hyper Wheel XIAO PCB layout, top view — open source Nordic nRF board by AnotherBuildCorner

About the Hyper Wheel XIAO PCB

Hyper Wheel XIAO is an open source Nordic nRF PCB design by AnotherBuildCorner, published on GitHub. It is a 2-layer board measuring 103.5 × 68 mm, with 26 components from 16 distinct parts.

Its main chip is the Seeed Studio XIAO nRF52840, from the Nordic nRF family. Other key parts include the CSD85301Q2 and BQ29700DSER. By type, the board carries 6 ICs, 3 connectors, 1 jumper and 1 switch.

It belongs with the displays & leds, power & battery and keyboards designs in this gallery.

From the project

A programmable HID control interface that replaces discrete key presses with continuous rotary input, enabling precise, context-aware interaction for workflows like video editing and CAD.

A programmable HID control interface that replaces discrete key presses with continuous rotary input, enabling precise, context-aware interaction for workflows like video editing and CAD.

- 4-layer mixed-signal embedded system (98 × 65 mm) based on nRF52840 (BLE + USB HID) - RF-aware PCB layout with calculated 50Ω antenna trace on TG155 FR4 - Battery-powered architecture (LiPo + charger + protection + load switching) - Multi-bus I²C system separating OLED displays and encoders for signal integrity - Designed within JLCPCB DFM constraints (no blind vias, optimized BOM, 0402/0603 preference) -…

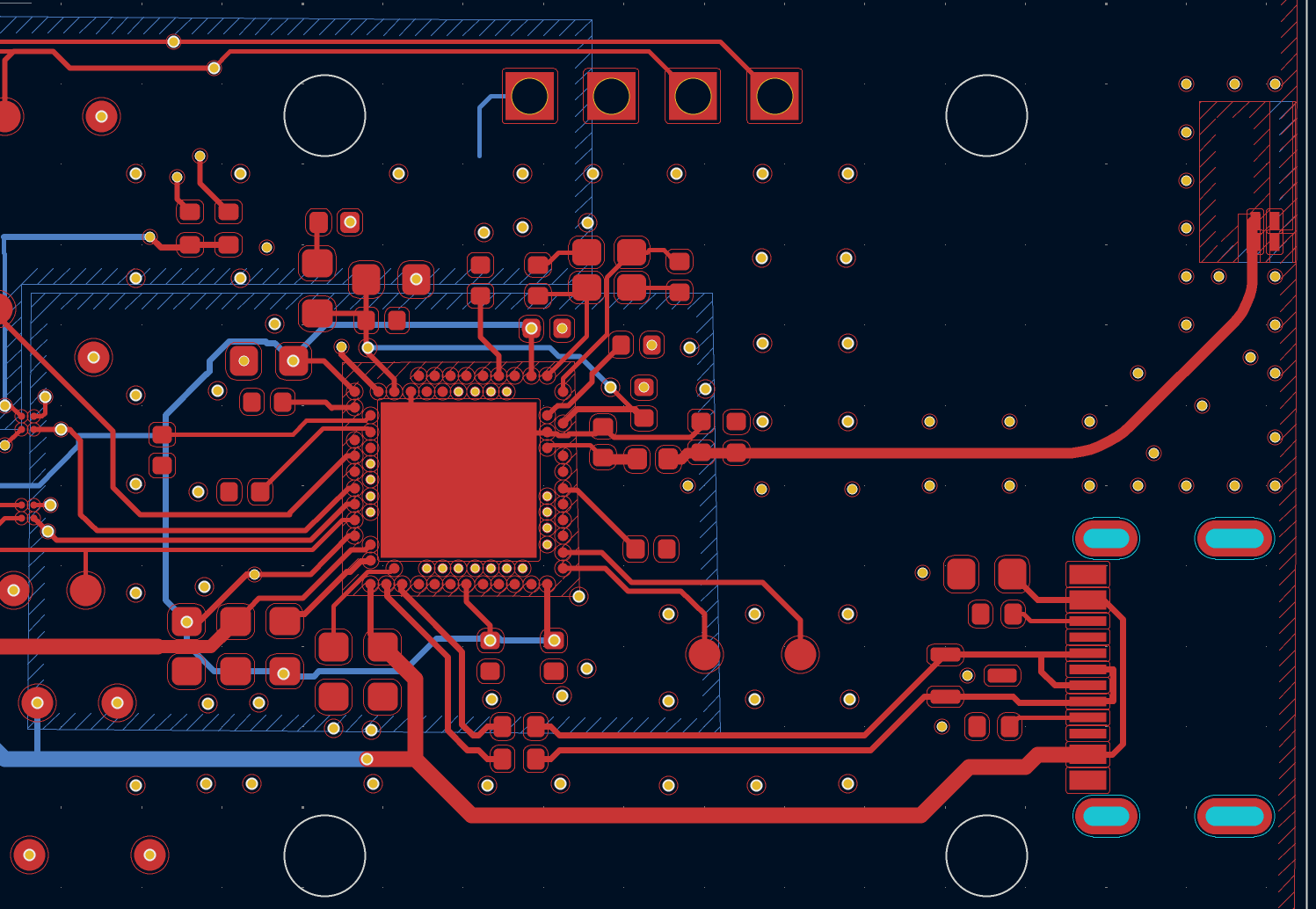

Hyper Wheel XIAO, from the project README
From the project README

Main components on the Hyper Wheel XIAO

CSD85301Q2Seeed Studio XIAO nRF52840BQ29700DSER

Hyper Wheel XIAO bill of materials (BOM)

26 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
CSD85301Q2
U1, U9
1
Seeed Studio XIAO nRF52840
U2
1
BQ29700DSER
U6
2
~
U15, U16
1
Conn_01x06_Socket
J1-1
1
LIPO
J2
1
Conn_01x04_Socket
J2-1
8
KS33_SW_HS
CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8
1
0.1U
0.1u
CP1
1
JUMPER_2_BRIDGED
Jumper_2_Bridged
JP4
2
4.7K
4.7k
RI1, RI2
1
2.2K
2.2k
RP1
1
330
RP2
1
150k
Rdiv1
1
300k
Rdiv2
1
SW_Push
SW2

Hyper Wheel XIAO design files

The KiCad project lives in the AnotherBuildCorner/Hyper_Wheel repository on GitHub; these links point at the commit this page was built from.

Hyper Wheel XIAO: common questions

What microcontroller does the Hyper Wheel XIAO use?

The Hyper Wheel XIAO is built around the Seeed Studio XIAO nRF52840, from the Nordic nRF family.

How big is the Hyper Wheel XIAO PCB?

The Hyper Wheel XIAO measures 103.5 × 68 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hyper Wheel XIAO?

26 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hyper Wheel XIAO design files?

From the AnotherBuildCorner/Hyper_Wheel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hyper Wheel XIAO design in my own project?

The repository has no license, so all rights stay with AnotherBuildCorner. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Hyper Wheel XIAO without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
