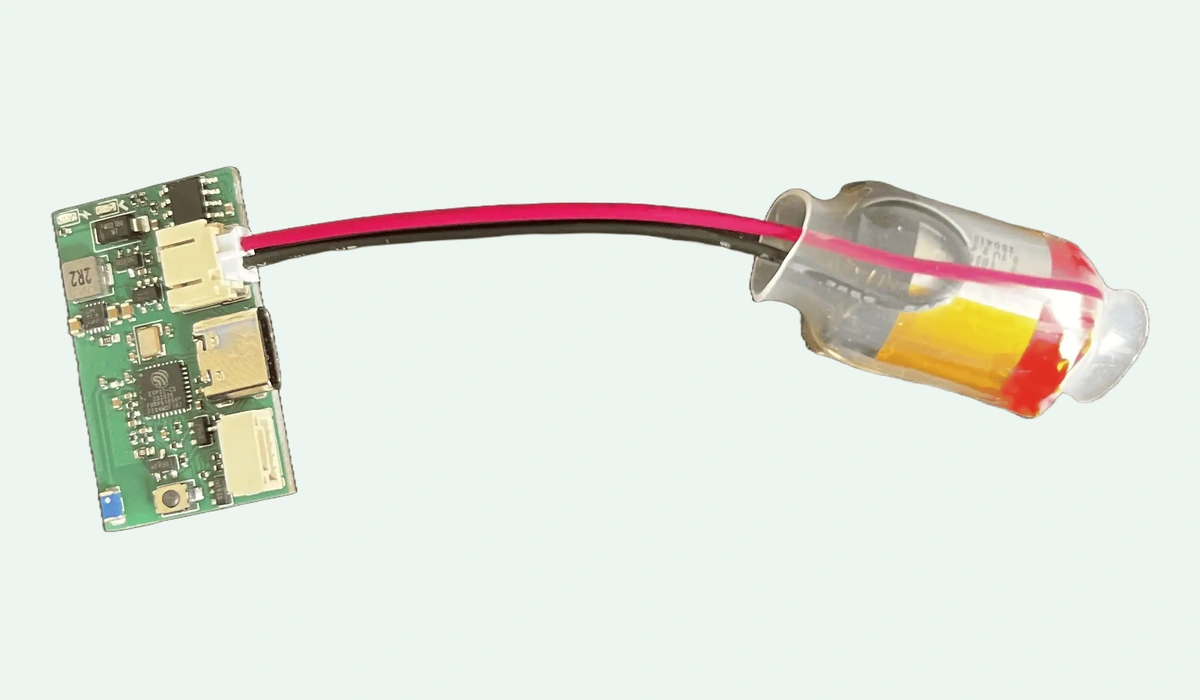

Esp32-c3-iot sensor board
Ans1S·esp32-c3-iot-sensor-board·PCB/Version 4/ESP32-C3-V4/ESP32-C3-V4.kicad_pcb
About the Esp32-c3-iot sensor board
Esp32-c3-iot sensor board is an open source ESP32 PCB design by Ans1S, published on GitHub under the MIT license. It is a 4-layer board measuring 35.4 × 21.6 mm, with 57 components from 32 distinct parts.
Its main chip is the ESP32-C3, from the ESP32 family. Other key parts include the SOFNG MC-311D, TP4056-42-ESOP8, SKCL3130ME and TPS63900DSKR. By type, the board carries 20 resistors, 18 capacitors, 5 ICs, 4 transistors, 3 diodes and 2 connectors.
It belongs with the sensors, power & battery and iot & wireless designs in this gallery, and the repository also holds 3 earlier revisions of it.
From the project
Open-source ESP32-C3 platform for ultra-low-power environmental sensor networks powered by recycled LiPo cells. Includes KiCad PCB, PlatformIO firmware (ESP-NOW + ThingSpeak), BME280/BME680 support, deep-sleep optimizations and measured >12 months runtime on typical cells.
Disposable vapes are designed for a very short life. The rechargeable lithium cell inside them often is not. W-Charger turns suitable recovered cells into the power source for compact wireless sensor nodes — then makes the whole network easy to see, configure and update from one station.
Many disposable vapes end up in household bins or as litter. That throws away valuable materials, creates a fire risk in waste handling, and can release harmful substances when a damaged cell reaches the environment. At the same time, the product enclosure gives its rechargeable cell no practical second life…

Main components on the Esp32-c3-iot sensor board
Esp32-c3-iot sensor board bill of materials (BOM)
57 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SOFNG MC-311D USB-C-16P-SMD | USB-C-MC-311D | U1 |
| 1 | ESP32-C3 | QFN-32-1EP_5x5mm_P0.5mm_EP3.7x3.7mm | U2 |
| 1 | TP4056-42-ESOP8 | HTSOP-8-1EP_3.9x4.9mm_P1.27mm_EP2.4x3.2mm_ThermalVias | U3 |
| 1 | SKCL3130ME | SOT-23-5 | U5 |
| 1 | TPS63900DSKR | WSON-10-1EP_2.5x2.5mm_P0.5mm_EP1.2x2mm_ThermalVias | U6 |
| 3 | SI2301CDS-T1-GE3 | SOT-23 | Q1, Q3, Q5 |
| 1 | 2N7002 | SOT-23 | Q4 |
| 1 | 40MHZ_S3240000151040 40MHz_S3240000151040 | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | M1257RS-04P | JST_GH_SM04B-GHS-TB_1x04-1MP_P1.25mm_Horizontal | J1 |
| 1 | BATCONNECT2PSMD BatConnect2PSMD | JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal | J2 |
| 1 | ANT3216LL00R2400A | R_1206_3216Metric | AE1 |
| 1 | TS-1088-AR02016 | SW_TS-1088_XNP | SW2 |
| 1 | C95872 M7(Basic) | D_SMA | D1 |
| 1 | KT-0603R 0603_RED | LED_0603_1608Metric | D2 |
| 1 | XL-1608UGC-04 XL-1608UGC-04(Green) | LED_0603_1608Metric | D3 |
| 1 | 2U2_SL0420-2R2M 2u2_SL0420-2R2M | L_Chilisin_BMRx00040412 | L2 |
| 1 | 2N2H_0403_500MA 2n2H_0403_500mA | R_0402_1005Metric | L3 |
| 2 | 20P_0402_C0G_50V 20p_0402_C0G_50V | C_0402_1005Metric | C1, C2 |
| 2 | 1U_0402_X5R_25V 1u_0402_X5R_25V | C_0402_1005Metric | C4, C14 |
| 3 | 10U_0402_X5R_6V3 10u_0402_X5R_6V3 | C_0402_1005Metric | C8, C9, C20 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | 100N_0402_X7R_16V 100n_0402_X7R_16V | C_0402_1005Metric | C10, C16, C17, C21, C22, C23 |
| 3 | 22U_0603_X5R_6V3 22u_0603_X5R_6V3 | C_0603_1608Metric | C13, C15, C25 |
| 2 | 3P3_0402_C0G_50V 3p3_0402_C0G_50V | C_0402_1005Metric | C18, C19 |
| 5 | 100K_0402 100k_0402 | R_0402_1005Metric | R1, R6, R8, R13, R17 |
| 4 | 5K1_0402 5k1_0402 | R_0402_1005Metric | R2, R3, R9, R10 |
| 1 | 100_0402 | R_0402_1005Metric | R4 |
| 1 | 36K5_0603 36k5_0603 | R_0603_1608Metric | R5 |
| 3 | 1M_0402 | R_0402_1005Metric | R7, R15, R18 |
| 1 | 150K_0603 150k_0603 | R_0603_1608Metric | R11 |
| 1 | 33K_0402 33k_0402 | R_0402_1005Metric | R12 |
| 2 | 10K_0402 10k_0402 | R_0402_1005Metric | R16, R19 |
| 2 | 4K7_0402 4k7_0402 | R_0402_1005Metric | R20, R21 |
Esp32-c3-iot sensor board design files
The KiCad project lives in the Ans1S/esp32-c3-iot-sensor-board repository on GitHub; these links point at the commit this page was built from.
Esp32-c3-iot sensor board: common questions
What microcontroller does the Esp32-c3-iot sensor board use?
The Esp32-c3-iot sensor board is built around the ESP32-C3, from the ESP32 family.
How big is the Esp32-c3-iot sensor board?
The Esp32-c3-iot sensor board measures 35.4 × 21.6 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Esp32-c3-iot sensor board?
57 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Esp32-c3-iot sensor board design files?
From the Ans1S/esp32-c3-iot-sensor-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Esp32-c3-iot sensor board design in my own project?
Yes, under the terms of its MIT license, which Ans1S chose for the repository.
Can I test firmware for the Esp32-c3-iot sensor board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
Earlier revisions in the repo: ESP32-C3-V3, ESP32-C3-V2, ESP32-C3
