Cm4-baseboard
About the Cm4-baseboard PCB
Cm4-baseboard is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 100 components from 41 distinct parts.
Other key parts include the AP22615AWU-7, 93AA66C-I/SN, AP62301WU-7, NTS0104BQ and FT4233HPQ-REEL. By type, the board carries 36 capacitors, 31 resistors, 11 diodes, 7 ICs, 6 transistors and 4 inductors.
It belongs with the power & battery and rf & radio designs in this gallery.
From the project

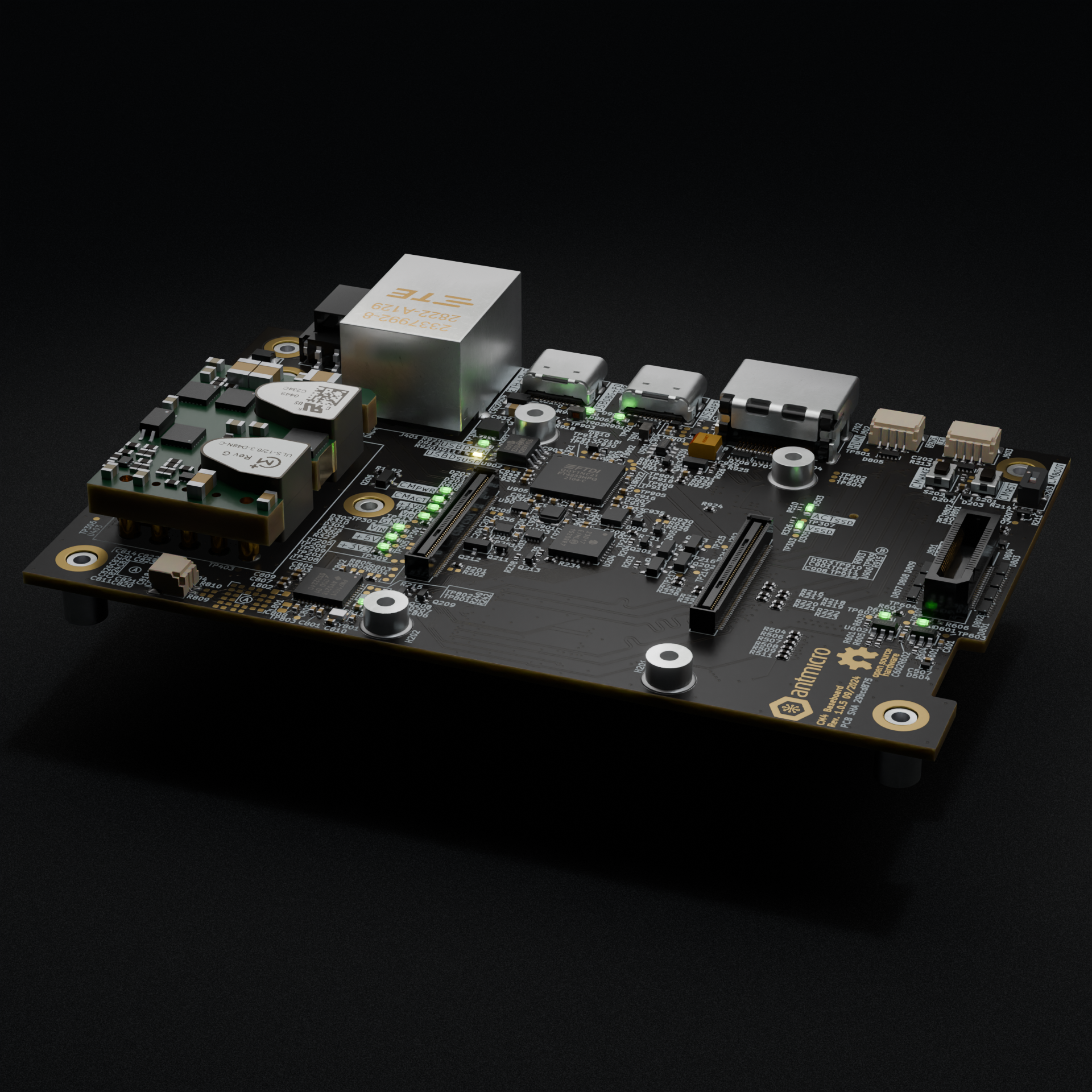

Experimental baseboard supporting System on Modules with Raspberry Pi CM4/CM5 pinout
This project contains open hardware design files for a baseboard supporting System on Modules (SoMs) with Raspberry Pi Compute Module rev. 4.0 (CM4) pinout. The baseboard is also electrically compatible with Compute Module rev. 5.0 (CM5). Please note that the pins associated with CAM0 and DSI0 on the CM4 module were changed to USB 3.0 ports on the CM5 module. Please refer to the schematics of the baseboard and respective compute modules for details.
Main components on the Cm4-baseboard
Cm4-baseboard bill of materials (BOM)
100 components, 41 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP22615AWU-7 AP22615A_TSOT26 Diodes Incorporated | TSOT23-6 | U901 |
| 1 | 93AA66C-I/SN 93AA66C_SOIC Microchip Technology | SOIC-8_3.9x4.9x1.75mm_P1.27mm | U902 |
| 1 | AP62301WU-7 AP62301_TSOT Diodes Incorporated | TSOT23-6 | U903 |
| 1 | NTS0104BQ NTS0104_DHVQFN NXP | DHVQFN-14-1EP_2.5x3mm | U904 |
| 1 | FT4233HPQ-REEL FT4233HPQ FTDI Chip | QFN-76-1EP_9x9mm_P0.4mm_EP6.3x6.3mm | U905 |
| 1 | TUSB321RWBR Texas Instruments | Texas_X2QFN-12_1.6x1.6mm_P0.4mm | U906 |
| 1 | TXB0104RUTR TXB0104_UQFN Texas Instruments | UQFN-12_2x1.7mm_P0.4mm_Texas_RUT | U907 |
| 4 | PJE138K_R1_00001 PJE138K PANJIT | SOT-523 | Q901, Q904, Q905, Q906 |
| 1 | SQS401EN-T1_BE3 Vishay | Vishay_PowerPAK_1212-8_Single | Q902 |
| 1 | SSM3J332R,LF SSM3J332R Toshiba | SOT-23-3 | Q903 |
| 1 | ABM8G-12.000MHZ-18-D2Y-T Resonator_12MHz_ABM8G Abracon | Resonator_SMD_Abracon_ABM8G_3.2x2.5mm | Y901 |
| 2 | USB4105-GF-A USB-C_GCT_USB4105-GF-A GCT | USB-C_Receptacle_GCT_USB4105-GF-A | J901, J902 |
| 2 | DLW21SN900SQ2L Choke_DLW21SN900SQ2L Murata | Choke_Murata-DLW21 | T901, T902 |
| 2 | PUSB3F96X PUSB3F96X_PASS Nexperia | Nexperia_DFN-10_2.5x1mm_P0.5mm | D901, D902 |
| 1 | PESD5Z5.0F PESD5Z5_0F Nexperia | SOD-523 | D903 |
| 1 | SMF4L15A Littelfuse | SOD-123FL | D904 |
| 4 | KP-1608CGCK LED_G_0603_KP-1608CGCK Kingbright | LED_0603_1608Metric_G | D905, D906, D907, D912 |
| 2 | RB521S30T1G ON Semiconductor | SOD-523 | D908, D910 |
| 1 | VLMY1500-GS08 LED_Y_0402_VLMY1500-GS08 Vishay | LED_0402_1005Metric_Y | D911 |
| 3 | BLM15PD121SN1D FB_120Z_1.3A_Murata-BLM15PD_0402 Murata | FB_0402_1005Metric | FB901, FB902, FB903 |
Show 21 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SRP3212A-1R0M L_1u_5.5A_Bourns-SRP3212A Bourns | L_Bourns-SRP3212A | L901 |
| 25 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C901, C902, C903, C904, C906, C909, C910, C912 +17 |
| 4 | CL21A226MAYNNNE C_22u_25V_0805 Samsung Electro-Mechanics | C_0805_2012Metric | C905, C907, C911, C932 |
| 1 | CC0402MRX5R5BB106 C_10u_0402 YAGEO | C_0402_1005Metric | C908 |
| 2 | GRM155R61A475MEAAD C_4u7_0402 Murata | C_0402_1005Metric | C924, C925 |
| 2 | CL05C180JB51PNC C_18p_0402 Samsung Electro-Mechanics | C_0402_1005Metric | C926, C927 |
| 1 | T520B337M006ATE040 C_Pol_330u_6.3V_KEMET-T520-B KEMET | C_Pol_EIA-B | C929 |
| 1 | GRM155R61E105KE11J C_1u_25V_0402 Murata | C_0402_1005Metric | C931 |
| 2 | CR0402-FX-1001GLF R_1k_0402 Bourns | R_0402_1005Metric | R901, R902 |
| 1 | CR0402-FX-9103GLF R_910k_0402 Bourns | R_0402_1005Metric | R903 |
| 4 | CR0402-FX-1003GLF R_100k_0402 Bourns | R_0402_1005Metric | R904, R914, R916, R925 |
| 2 | CR0402-FX-4701GLF R_4k7_0402 Bourns | R_0402_1005Metric | R905, R927 |
| 9 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R906, R909, R910, R924, R928, R929, R930, R933 +1 |
| 3 | CR0402-FX-2201GLF R_2k2_0402 Bourns | R_0402_1005Metric | R907, R913, R923 |
| 1 | CR0402-FX-6801GLF R_6k8_0402 Bourns | R_0402_1005Metric | R912 |
| 1 | CR0402-FX-4703GLF R_470k_0402 Bourns | R_0402_1005Metric | R915 |
| 1 | CR0402-FX-1502GLF R_15k_0402 Bourns | R_0402_1005Metric | R917 |
| 3 | CR0402-FX-4700GLF R_470R_0402 Bourns | R_0402_1005Metric | R918, R920, R921 |
| 2 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R919, R931 |
| 1 | CR0402-FX-1202GLF R_12k_0402 Bourns | R_0402_1005Metric | R922 |
| 1 | CR0402-FX-2000GLF R_200R_0402 Bourns | R_0402_1005Metric | R926 |
Cm4-baseboard design files
The KiCad project lives in the antmicro/cm4-baseboard repository on GitHub; these links point at the commit this page was built from.
- Schematicusb.kicad_sch
Cm4-baseboard: common questions
How many components are on the Cm4-baseboard?
100 components, from 41 distinct parts. The full bill of materials is listed on this page.
Where can I download the Cm4-baseboard design files?
From the antmicro/cm4-baseboard repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Cm4-baseboard design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
