ARG OSCI HARDWARE PCB layout, top view — open source ESP32 board by ArgOsciProyect
Simulate this board

About the ARG OSCI HARDWARE PCB

ARG OSCI HARDWARE is an open source ESP32 PCB design by ArgOsciProyect, published on GitHub under the Custom license license. It is a 2-layer board measuring 113 × 50 mm, with 56 components from 45 distinct parts.

Its main chip is the ESP32-DevKitC, from the ESP32 family. Other key parts include the ADS7884SDBVT, TL082 and LM2776. By type, the board carries 23 capacitors, 22 resistors, 4 ICs, 3 switches, 2 connectors and 2 diodes.

It belongs with the power & battery and test & measurement designs in this gallery.

From the project

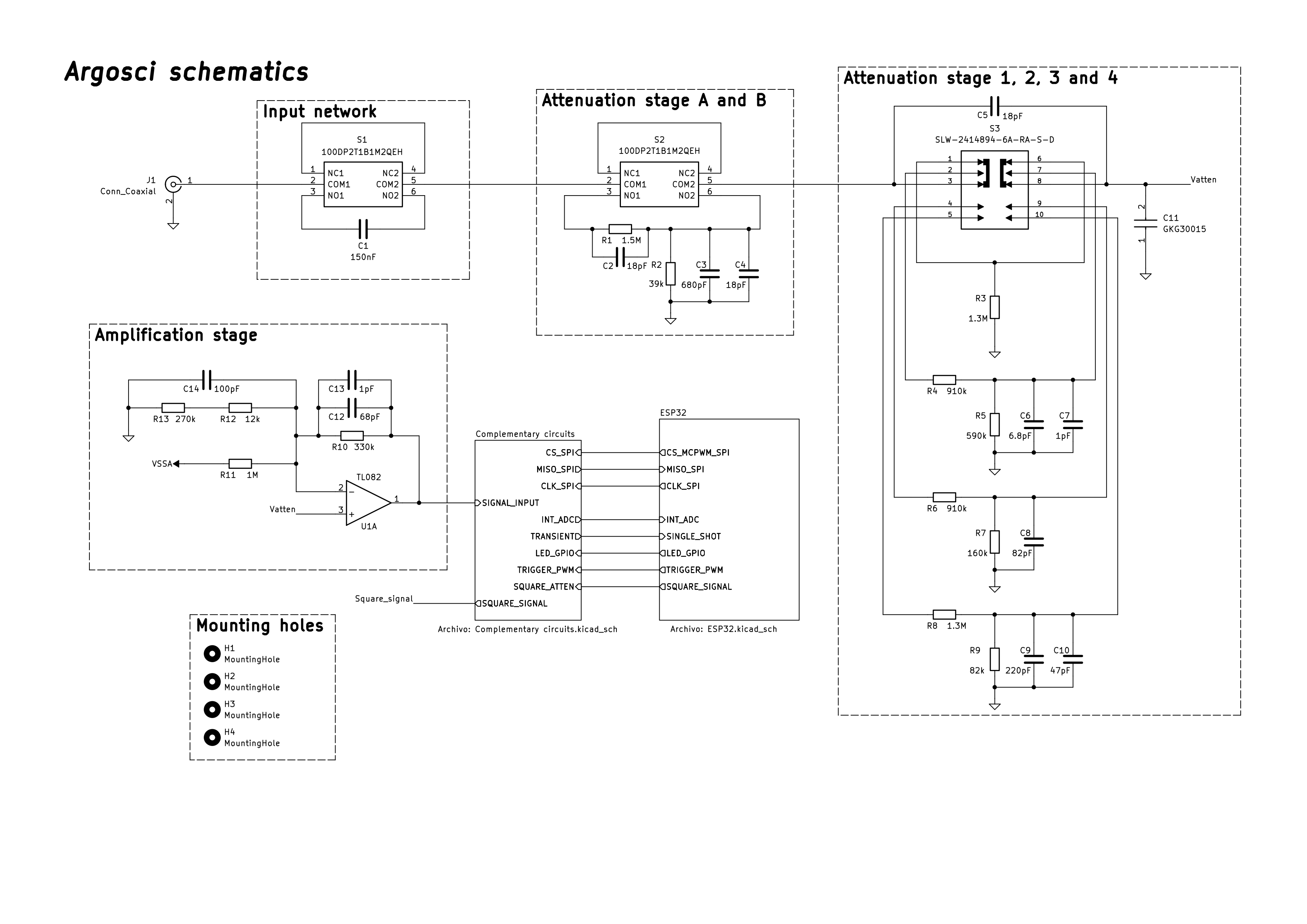

ARGOSCI** is an open-source portable oscilloscope platform. This document details the technical implementation of the hardware, focusing on design decisions, construction, and improvement opportunities. It is intended for engineers and advanced users interested in building or mod

ARGOSCI** is an open-source portable oscilloscope platform. This document details the technical implementation of the hardware, focusing on design decisions, construction, and improvement opportunities. It is intended for engineers and advanced users interested in building or modifying the device.

This document describes how to implement the ARG_OSCI hardware, including the rationale behind each design block, construction notes, and suggestions for further development. For usage instructions, refer to the user manual.

ARG OSCI HARDWARE, from the project README
From the project README

Main components on the ARG OSCI HARDWARE

ADS7884SDBVTTL082LM2776ESP32-DevKitC

ARG OSCI HARDWARE bill of materials (BOM)

56 components, 45 distinct parts — part numbers from the project's BOM.
